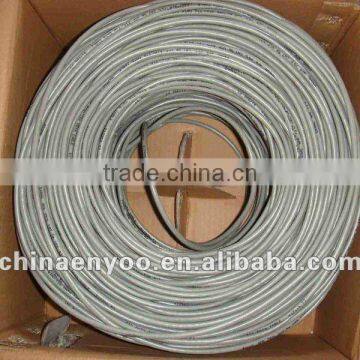

Cable UTP Cat5e 4PR From Manufacturer
US$ 16 - 19
/ Roll
1 Roll(Min. Order)
- Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | enyoo | |
| Model Number | cable cat5e utp | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Specifications
1.cable utp2.utp cable 24 AWG conductor
3.utp cable with PVC, LSZH and PE options
4.print meter marks in cable utp
5.rohs
cable utp cat 5e
Category 5e Unshielded Twisted Pair (UTP) 100 Ohm cable is produced using a 4 x 2 x 24 AWG copper wire structure to a Class D standard. It supports the gigabit Ethernet protocol for horizontal and backbone installations.
Features :
24 AWG conductor – solid bare copper cable
PVC, LSZH and PE options
Supplied in 305m box
Printed metre marks
Applications :
Supports Category 5e (Class D) networks running up to 100 MHz applications
Horizontal and backbone installations
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
ATM 155
100 VG any LAN (IEEE 802.12
Conformance :
Category 5e
ANSI/EIA/TIA 568B.2 : 2002
ISO/IEC 11801 : 2002
RoHS ETL/UL approved
Technical Specification
| construction | value | |
| Conductors | AWG | 24 |
| Size mm | 0.50 | |
| Material | Bare Copper | |
| Insulators | Diameter mm | 0.88+/-0.02 |
| Material | HDPE | |
| Jacket | External O.D. | 5.0 +/- 0.3 |
| Thickness mm | 0.50 +/- 0.05 | |
| Material | PVC / LSZH / PE | |
Ordering Information :
| Description | Part No |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable PVC 305m Box - Grey | UTP5E305PVC |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable LSZH 305m Box - Violet | UTP5E305LSZH |
| Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable External PE - 305m box | UTP5E305EXT |
