Specifications
1.utp lan cable patch cord2.patch cord 24 AWG stranded
3.patch cord with gold plated RJ45 connector
4.patch cord with rohs

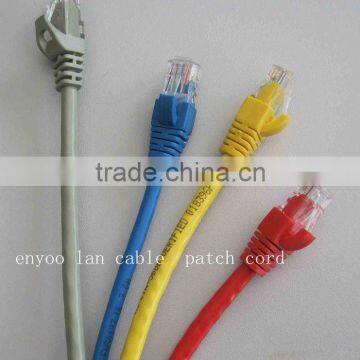

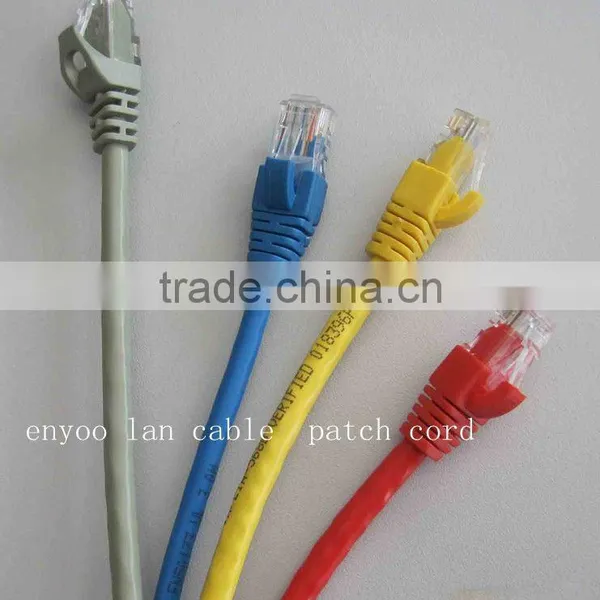

Cat 5e UTP Patchcords
Category 5e Unshielded Twisted Pair (UTP) patchcords conform to Class D standards. Our patchcords are made to the highest standards using only quality stranded cable giving you the best in flexibility and top grade 50μ gold plated RJ45 connector plugs. This combination makes for outstanding performance and reduced degradation. All patchcords are produced with a injection moulded boot with an easy depression latch cover. Available across 8 colours, 6 standard lengths and in PVC or LSZH jacket varieties.
Features
Quality 24 AWG stranded (flexible) cable
High grade 50μ gold plated RJ45 connector
Injection moulded boot for improved strain relief
Soft latch-cover design for easy depression
Applications
Supports Category 5e (Class D) networks running up to 100 MHz applications
Conformance
Category 5e
ISO/IEC 11801 : 2002
ANSI/EIA/TIA 568B.2 : 2002
RoHS UL approved
Technical Specification
| Construction | value | |
| Conductors | AWG | 24 |
| Size mm | 7/0.20 +/- 0.008 | |
| Material | Bare Copper | |
| Insulators | Diameter mm | 0.98+/-0.05 |
| Material | Polyolefin | |
| Jacket | External O.D. | 6.0 +/- 0.20 |
| Thickness mm | 0.5 | |
| Material | PVC or LSZH | |
