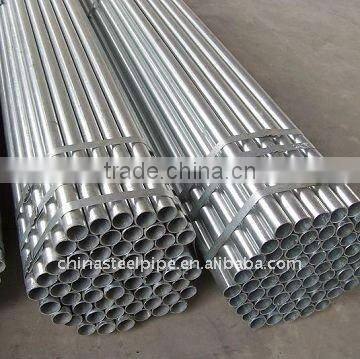

ss201 stainless steel welded pipe schedule 40
- 3200 Ton / Tons per Month
- Qingdao Tianjin
- T/T Credit Card
Product Details
Thickness: | 1.5, 28.5 | ||||
Section Shape: | Round | Outer Diameter: | 8 - 625 mm | Place of Origin: | Shandong, China |
Secondary Or Not: | Non-secondary | Application: | Fluid Pipe | Technique: | Cold Drawn |
Certification: | Other, ISO | Surface Treatment: | Other | Special Pipe: | API Pipe |
Alloy Or Not: | Non-alloy |
Product Description
Specifications
ss201 stainless steel welded pipe schedule 401.OD:8-625mm Thickness:1.3-28.5mm
2.supply MTC,ISO
3.Payment terms:T/T,L/C
.
| Company Name | TIANJIN PYST STELL TUBE CO.,LTD | |||||||
| Business Type | MANUFACTURE AND EXPORTER | |||||||
| Commodity | ss201 stainless steel welded pipe schedule 40 | |||||||
| Specification | OD:8-625mm Thickness:1.3-28.5mm | |||||||
| Standard | ASME/ASTM: A312, A269, A213, DIN 17456 etc. | |||||||
| Material | 301,304, 321, TP321,TP316L,317L,Duplex 2205, Duplex 2207, TP 304, 304H, 304L, 316, 316L, 316Ti, 317, 321, 321H, 347, 347H, 309S, 310S, 904L, 17-4PH etc. | |||||||
| Length | SPECIFIC OR AT RANDOM as required | |||||||
| Application | Oil, chemical industry, medicine machine, heat exchanger and water conservancy and so on. | |||||||
| Section shape | Round, square, rectangle. | |||||||
| MOQ | 10T | |||||||
| Payment term | TT or L/C at sight. | |||||||
| Delivery time | Within 20~60 days upon the quantity required. | |||||||
| Packing | 1.with plastic cap to protect both ends 2.plastic bag wrapped outside the pipe 3.bundles to be covered by polythene & strapped securely . 4.if require ,then pack into wooden box. | |||||||
| ASTM A213/A213M | ASTM A312/A312M |
| ||||||
Material | TP304 | TP304L | TP304 | TP304L |
| ||||
TP316 | TP316L | TP316 | TP316L |
| |||||
TP317 | TP317L | TP317 | TP317L |
| |||||
TP347 | TP310S | TP347 | TP310S |
| |||||
TP309H* | TP310H* | TP317* | TP310H* |
| |||||
| TP321H Δ |
| TP321H Δ |
| |||||
Y.S. σ0.2 (Mpa) | ≥170; | ≥205 | ≥170; | ≥205 |
| ||||
T.S. σb (Mpa) | ≥485; | ≥515 | ≥485; | ≥515 |
| ||||
elongation | ≥35 | ≥35 | ≥35 | ≥35 |
| ||||
flattening test | H=1.09t/(0.09+t/D) | H=1.09t/(0.09+t/D) |
| ||||||
Flange test | 21-68% |
|
| ||||||
hydraulic pressure test (Mpa) | D | P max | P=220.6t/D | D | P max | ASTM A530/A530M D≤270MM P=2Rt/D |
| ||
<25.4 | 7 | ≤88.9 | 17 |
| |||||
25.4-<38.1 | 10 |
| |||||||
38.1-<50.8 | 14 | >88.9 | 19 |
| |||||
50.8-<76.2 | 17 |
| |||||||
76.2-<127 | 24 |
| |||||||
≥127 | 31 |
| |||||||
metallographic analysis | ASTM A262 E | ASTM A262 E |
| ||||||
hardness | HRB<90 | HRB<90 |
|
