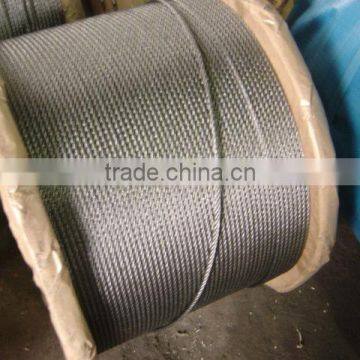

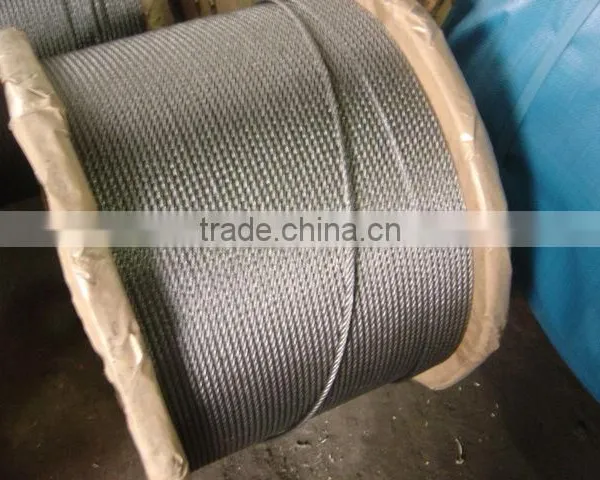

Electric(Hot) Galvanized Steel Wire Rope

US$ 600 - 900 MOQ: 5 Metric Tons

Key Specifications

Steel Grade:

45#-82DA

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge:

5.5mm,6.5mm.8.0mm,10mm

Hebei Jinbao Steel Wire Rope Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade 45#-82DA

Standard AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge 5.5mm,6.5mm.8.0mm,10mm

Place of Origin Hebei, China

Type Galvanized

Application Manufacturing

Alloy Or Not Non-alloy

Special Use Free Cutting Steel

Specifications

Dia.:4-40mm
Tensile strength:1570-1860Mpa
Structure:6x19+fc, 6x7+fc,6x37+fc,6x19s
Use:Suitable for hoisting lifting,binding

1)Stable quality and good reputation.

2)ISO quality Assessment certification Hebei famous brand Jinbao.

3)Strong technical force.

4)Customers wide approval.

Electro-galvanized Steel Wire
Dia. (mm)	Tolerance (mm)	Surface	Zinc of coating (g/m²)	Tensile Strength(Mpa)						Torsions (times)	Bends (times)	Elongation (%)
Dia. (mm)	Tolerance (mm)	Surface	Zinc of coating (g/m²)	A	B	C	D	E	F	Torsions (times)	Bends (times)	Elongation (%)
1-1.2	±0.02	Galvanized	100-220	1370	1470		1570	1670	1770	30	15	5
1.3	±0.02			1370	1470		1570	1670	1770	30	12	5
1.4	±0.02			1370	1470		1570	1670	1770	30	11	5
1.5	±0.02			1370	1470		1570	1670	1770	30	14	5
1.6	±0.03			1370	1470		1570	1670	1770	30	13	5
1.7	±0.03			1370	1470		1570	1670	1770	30	12	5
1.8	±0.03			1370	1470		1570	1670	1770	27	11	5
1.9	±0.03			1370	1470		1570	1670	1770	27	10	5
2	±0.03			1370	1470		1570	1670	1770	27	15	5
2.1	±0.03			1370	1470		1570	1670	1770	27	14	5
2.2	±0.03			1370	1470		1570	1670	1770	27	13	5
2.3	±0.03			1370	1470		1570	1670	1770	27	12	5
2.4	±0.03			1370	1470		1570	1670	1770	27	11	5
2.5	±0.03			1370	1470		1570	1670	1770	27	10	5
2.6	±0.03			1370	1470		1570	1670	1770	24	9	5
2.7	±0.03			1370	1470		1570	1670	1770	24	9	5
2.8	±0.03			1370	1470		1570	1670	1770	24	9	5
2.9	±0.03			1370	1470		1570	1670	1770	24	8	5
3	±0.03			1370	1470		1570	1670	1770	23	12	5
3.1	±0.03			1370	1470		1570	1670	1770	23	12	5
3.2	±0.03			1370	1470		1570	1670	1770	23	11	5
3.3	±0.03			1370	1470		1570	1670	1770	23	10	5
4.0	±0.03			1370	1470		1570	1670	1770	23	10	5
