China Manufacturer Steel Wire Rope for Elevators
US$ 1,075 - 1,365
MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Steel Grade:
60#65#70#72a
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
6~30mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tinjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China Steel Wire Rope for Aeronautical UseNegotiableMOQ: 5 Metric Tons -
China Steel Wire Rope for Conveyer BeltNegotiableMOQ: 5 Metric Tons
-
Made in China Steel Wire Rope for Petroleum Well DrillingUS$ 1,075 - 1,365MOQ: 5 Metric Tons
-
China Steel Wire Rope for Hand GourdNegotiableMOQ: 5 Metric Tons
-
Made in China Galvanized Steel Wire Rope for Ordinary UseUS$ 1,320 - 1,400MOQ: 5 Metric Tons
Steel Grade
60#65#70#72a
Standard
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge
6~30mm
Place of Origin
Hebei, China
Type
Other, galvanized or ungalvanized
Application
Other, drawing elevators for people or carrying goods
Alloy Or Not
Non-alloy
Model Number
6x19S/8X19S6x19W/6X37/6X37S/18X7/34X7/6X26WS/6X36WS/6X31WS...
Brand Name
JINBAO
Specifications
Executive standard:GB8918-2006 BS302 RR-W-410E ASTM A 1023/ADIN3051 JIS G 3525 EN 12385-4:2002Specifications:6mm~30mm
Product Description

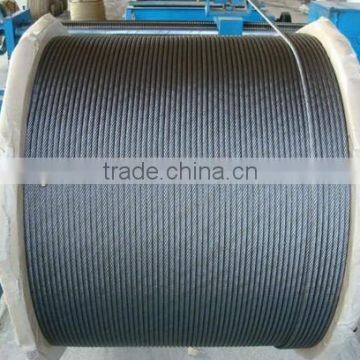

China manufacturer steel wire rope for elevators
It is mainly used for drawing elevators for people or carrying goods
Structure: 6x19S/8X19S6x19W/6X37/6X37S/18X7/34X7/6X26WS/6X36WS/6X31WS...
Executive standard:GB8918-2006 BS302 RR-W-410E ASTM A 1023/ADIN3051 JIS G 3525 EN 12385-4:2002
Specifications:6mm~30mm
Tensile strenght : 1470~1870Mpa
| 6*19 | |||||||||||
| Nominal Diameter/ mm | Weight /(kg/100m) | Tensile Strength/Mpa | |||||||||
| 1570 | 1670 | 1770 | 1870 | ||||||||
| natural fiber core | synthetic fiber core | steel core | fiber cre | steel core | fiber core | steel core | fiber core | steel core | fiber core | steel core | |
| 3 | 3.16 | 3.1 | 3.6 | 4.34 | 4.69 | 4.61 | 4.99 | 4.89 | 5.29 | 5.17 | 5.59 |
| 4 | 5.62 | 5.5 | 6.4 | 7.71 | 8.34 | 8.2 | 8.87 | 8.69 | 9.4 | 9.19 | 9.93 |
| 5 | 8.78 | 8.6 | 10 | 12 | 13 | 12.8 | 13.9 | 13.6 | 14.7 | 14.4 | 15.5 |
| 6 | 12.6 | 12.4 | 14.4 | 17.4 | 18.8 | 18.5 | 20 | 19.6 | 21.2 | 20.7 | 22.4 |
| 7 | 17.2 | 16.9 | 19.6 | 23.6 | 25.5 | 25.1 | 27.2 | 26.6 | 28.8 | 28.1 | 30.4 |
| 8 | 22.5 | 22 | 25.6 | 30.8 | 33.4 | 32.8 | 35.5 | 34.8 | 37.6 | 36.7 | 39.7 |
| 9 | 28.4 | 27.9 | 32.4 | 39 | 42.2 | 41.6 | 44.9 | 44 | 47.6 | 46.5 | 50.3 |
| 10 | 35.1 | 34.4 | 40 | 48.2 | 52.1 | 51.3 | 55.4 | 54.4 | 58.8 | 57.4 | 62.1 |
| 11 | 42.5 | 41.6 | 48.4 | 58.3 | 63.1 | 62 | 67.1 | 65.8 | 71.1 | 69.5 | 75.1 |
| 12 | 50.5 | 50 | 57.6 | 69.4 | 75.1 | 73.8 | 79.8 | 78.2 | 84.6 | 82.7 | 89.4 |
| 13 | 59.3 | 58.1 | 67.6 | 81.5 | 88.1 | 86.6 | 93.7 | 91.8 | 99.3 | 97 | 105 |
| 14 | 68.8 | 67.4 | 78.4 | 94.5 | 102 | 100 | 109 | 107 | 115 | 113 | 122 |
| 16 | 89.9 | 88.1 | 102 | 123 | 133 | 131 | 142 | 139 | 150 | 147 | 159 |
| 18 | 114 | 111 | 130 | 156 | 169 | 166 | 180 | 176 | 190 | 186 | 201 |
| 20 | 140 | 138 | 160 | 193 | 208 | 205 | 222 | 217 | 235 | 230 | 248 |
| 22 | 170 | 166 | 194 | 233 | 252 | 248 | 268 | 263 | 284 | 278 | 300 |
| 24 | 202 | 198 | 230 | 278 | 300 | 295 | 319 | 313 | 338 | 331 | 358 |
| 26 | 237 | 233 | 270 | 326 | 352 | 346 | 375 | 367 | 397 | 388 | 420 |
| 28 | 275 | 270 | 314 | 378 | 409 | 402 | 435 | 426 | 461 | 450 | 487 |
| 30 | 316 | 310 | 360 | 434 | 469 | 461 | 499 | 489 | 529 | 517 | 559 |
| 32 | 359 | 352 | 410 | 494 | 534 | 525 | 568 | 557 | 602 | 588 | 636 |
| 34 | 406 | 398 | 462 | 557 | 603 | 593 | 641 | 628 | 679 | 664 | 718 |
| 36 | 455 | 446 | 518 | 625 | 676 | 664 | 719 | 704 | 762 | 744 | 805 |
| 38 | 507 | 497 | 578 | 696 | 753 | 740 | 801 | 785 | 849 | 829 | 896 |
| 40 | 562 | 550 | 640 | 771 | 834 | 820 | 887 | 869 | 940 | 919 | 993 |
| 42 | 619 | 607 | 706 | 850 | 919 | 904 | 978 | 959 | 1040 | 1010 | 1100 |
| 44 | 680 | 666 | 774 | 933 | 1010 | 993 | 1070 | 1050 | 1140 | 1110 | 1200 |
| 46 | 743 | 728 | 846 | 1020 | 1100 | 1080 | 1170 | 1150 | 1240 | 1210 | 1310 |
