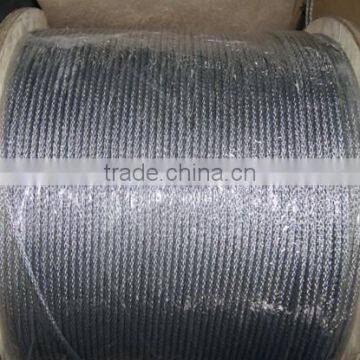

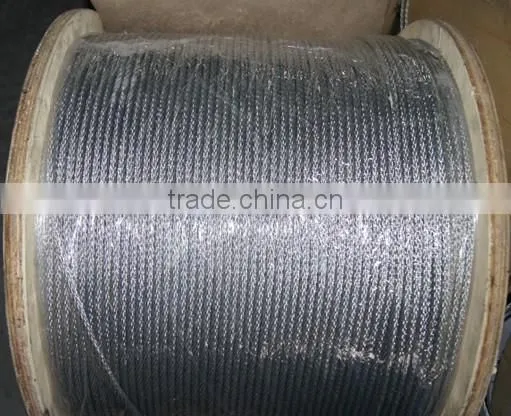

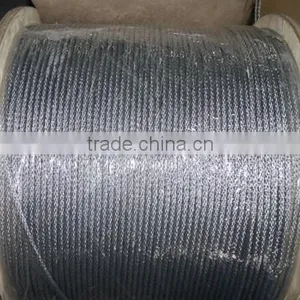

Galvanized Steel Wire Rope for Fishing

Name: Galvanized Steel Wire Rope for Fishing
Brand: JINBAO
SKU: 141917992
Availability: InStock

US$ 700 - 900 MOQ: 5 Metric Tons

Key Specifications

Steel Grade:

55# 60# 65# 70#

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge:

6.2-30mm

Hebei Jinbao Steel Wire Rope Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade 55# 60# 65# 70#

Standard AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge 6.2-30mm

Place of Origin Hebei, China

Type Galvanized

Application Manufacturing

Alloy Or Not Is Alloy

Special Use Free Cutting Steel

Brand Name JINBAO

Specifications

Dia.:6.2-30mm
Tensilestrength:1370-1770Mpa
Use:Fishing, Fisheries, Marine Industry,Lifting Industry

It is mainly used for Fishing, Fisheries, Marine Industry,Lifting Industry .

Weight/ (kg/100m)			Steel Wire Rope Tensile Strength/Mpa
			1570 Fishing, Fisheries, Marine Industry,Lifting Industry		1670		1770		1870

Nature Firbre Core	Synthetic Fibre Core	Steel Core	Fibre Core	Steel Core	Fibre Core	Steel Core	Fibre Core	Steel Core	Fibre Core	Steel Core
3.16	3.1	3.6	4.34	4.69	4.61	4.99	4.89	5.29	5.17	5.59
5.62	5.5	6.4	7.71	8.34	8.2	8.87	8.69	9.4	9.19	9.93
8.78	8.6	10	12	13	12.8	13.9	13.6	14.7	14.4	15.5
12.6	12.4	14.4	17.4	18.8	18.5	20	19.6	21.2	20.7	22.4
17.2	16.9	19.6	23.6	25.5	25.1	27.2	26.6	28.8	28.1	30.4
22.5	22	25.6	30.8	33.4	32.8	35.5	34.8	37.6	36.7	39.7
28.4	27.9	32.4	39	42.2	41.6	44.9	44	47.6	46.5	50.3
35.1	34.4	40	48.2	52.1	51.3	55.4	54.4	58.8	57.4	62.1
42.5	41.6	48.4	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1
50.5	50	57.6	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4
59.3	58.1	67.6	81.5	88.1	86.6	93.7	91.8	99.3	97	105
68.8	67.4	78.4	94.5	102	100	109	107	115	113	122
89.9	88.1	102	123	133	131	142	139	150	147	159
114	111	130	156	169	166	180	176	190	186	201
140	138	160	193	208	205	222	217	235	230	248
170	166	194	233	252	248	268	263	284	278	300
202	198	230	278	300	295	319	313	338	331	358
237	233	270	326	352	346	375	367	397	388	420
275	270	314	378	409	402	435	426	461	450	487
316	310	360	434	469	461	499	489	529	517	559
359	352	410	494	534	525	568	557	602	588	636
406	398	462	557	603	593	641	628	679	664	718
455	446	518	625	676	664	719	704	762	744	805
507	497	578	696	753	740	801	785	849	829	896
562	550	640	771	834	820	887	869	940	919	993
619	607	706	850	919	904	978	959	1040	1010	1100
680	666	774	933	1010	993	1070	1050	1140	1110	1200
743	728	846	1020	1100	1080	1170	1150	1240	1210	1310
