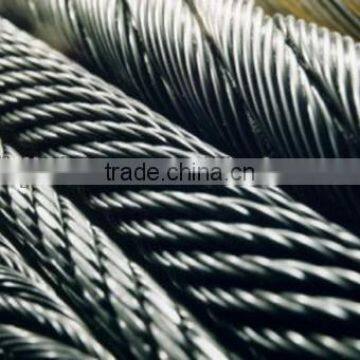

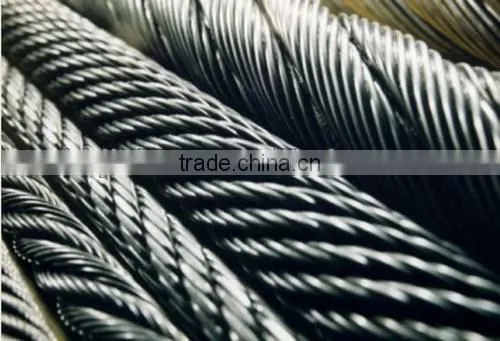

Galvanized Steel Wire Rope for Fishing

Galvanized Steel Wire Rope for Fishing thumbnail-1
Galvanized Steel Wire Rope for Fishing photo-1
US$ 900 - 1,000 MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JINBAO
Type:
Other, Coal Mining Lifting
Contact Supplier Request Quote Chat Now
Hebei Jinbao Steel Wire Rope Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JINBAO
Type Other, Coal Mining Lifting
Machine Type Other, Lifting
Certification Other, ISO9000
Material Carbon Steel
Processing Type Other, Rope
Use Coal Mining

Specifications

Dia.:6.2-30mm
Tensilestrength:1370-1770Mpa
Use:Mine.

It is mainly used for mine, mine limestone mine ore nickel copper mine gold and silver, Mining steel rope is the key to the coal production material, is to use one of the key steel varieties of coal industry.



  1. Dia.(mm)
  1. Weight/(Kg/100m)
 Nominal tensile strength of wire rope/Mpa
1570 1670 1770 1870
Minimum breaking force of wire rope/KN
NFC SFC Steel-cored wire rope Fiber cored wire rope Steel-cored wire rope Fiber cored wire rope Steel-cored wire rope Fiber cored wire rope Steel-cored wire rope Fiber cored wire rope Steel-cored wire rope
5 8.65 8.43 10.0 11.6 12.5 12.3 13.3 13.1 14.1 13.8 14.9
6 12.5 12.1 14.4 16.7 18.0 17.7 19.2 18.8 20.3 19.9 21.5
7 17.0 16.5 19.6 22.7 24.5 24.1 26.1 25.6 27.7 27.0 29.2
8 22.1 21.6 25.6 29.6 32.1 31.5 34.1 33.4 36.1 35.3 38.2
9 28.0 27.3 32.4 37.5 40.6 39.9 43.2 42.3 45.7 44.7 48.3
10 34.6 33.7 40.0 46.3 50.1 49.3 53.3 52.2 56.5 55.2 59.7
11 41.9 40.8 48.4 56.0 60.6 59.6 64.5 63.2 68.3 66.7 72.2
12 49.8 48.5 57.6 66.7 72.1 70.9 76.7 75.2 81.3 79.4 85.9
13 58.5 57 67.6 78.3 84.6 83.3 90.0 88.2 95.4 93.2 101
14 67.8 66.1 78.4 90.8 98.2 96.6 104 102 111 108 117
16 88.6 86.3 102 119 128 126 136 134 145 141 153
18 112 109 130 150 162 160 173 169 183 179 193
20 138 135 160 185 200 197 213 209 226 221 239
22 167 163 194 224 242 238 258 253 273 267 289
24 199 194 230 267 288 284 307 301 325 318 344
26 234 228 270 313 339 333 360 353 382 373 403
28 271 264 314 363 393 386 418 409 443 432 468
30 311 303 360 417 451 443 479 470 508 496 537
32 354 345 410 474 513 504 546 535 578 565 611
34 400 390 462 535 579 570 616 604 653 638 690
36 448 437 518 600 649 638 690 677 732 715 773
38 500 487 578 669 723 711 769 754 815 797 861
40 554 539 640 741 801 788 852 835 903 883 954
42 610 594 706 817 883 869 940 921 996 973 1050
44 670 652 774 897 970 954 1030 1010 1090 1070 1150
46 732 713 846 980 1060 1040 1130 1100 1190 1170 1260
48 797 776 922 1070 1150 1140 1230 1200 1300 1270 1370
50 865 843 1000 1160 1250 1230 1330 1300 1410 1380 1490
52 936 911 1080 1250 1350 1330 1440 1410 1530 1490 1610
54 1010 983 1170 1350 1460 1440 1550 1520 1650 1610 1740
56 1090 1060 1250 1450 1570 1540 1670 1640 1770 1730 1870
58 1160 1130 1350 1560 1680 1660 1790 1760 1900 1860 2010
60 1250 1210 1440 1670 1800 1770 1920 1880 2030 1990 2150
