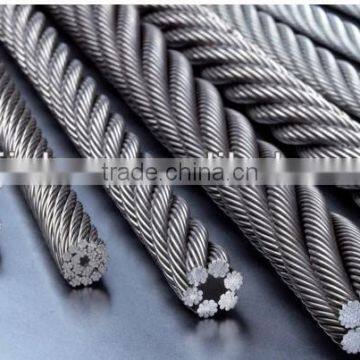

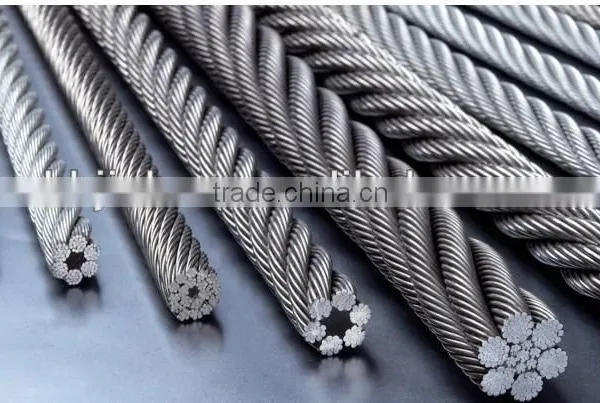

Help CenterSteel Wire Rope
US$ 900 - 1,100
MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Steel Grade:
55# 60# 65# 70#
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
8-46mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The Lift or Elevator Wire RopeUS$ 750 - 900MOQ: 5 Metric Tons -
Crane Steel Wire RopeNegotiableMOQ: 5 Metric Tons
-
Steel Wire Rope ManufacturerNegotiableMOQ: 5 Metric Tons
-
Z2 Packing 1.2mm Galvanized High Carbon Steel WireUS$ 700 - 900MOQ: 5 Metric Tons
-
6X12 Galvanized Steel Wire Rope With Diameter 9mmNegotiableMOQ: 5 Metric Tons
Steel Grade
55# 60# 65# 70#
Standard
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge
8-46mm
Place of Origin
Hebei, China
Type
Galvanized
Application
Manufacturing
Alloy Or Not
Is Alloy
Special Use
Free Cutting Steel
Brand Name
JINBAO
Specifications
Dia.:8.0-46mmTensile strength:1370-1860Mpa
Use: Drawing,tugging.
It is mainly used for drawing,tugging o"gaolu",hauling in machinery,archiectural,lifting,petroleum industry and equipment on sea.
| Dia.(d) | Radius of bending cylinders | Ungalvanized and B Grade Galvanized Steel Wire | AB Grade Galvanized Steel Wire | A Grade Galvanized Steel Wire | |||||||||||||
| Tensile Strength/Mpa | |||||||||||||||||
| mm | 1570 | 1670 | 1770 | 1870 | 1960 | 2160 | 1570 | 1670 | 1770 | 1870 | 1960 | 1470 | 1570 | 1670 | 1770 | 1870 | |
| 0.5≤d≤0.55 | 1.75 | 15 | 14 | 14 | 13 | 13 | 12 | 12 | 11 | 11 | 10 | 10 | 11 | 11 | 10 | 10 | 9 |
| 0.55≤d≤0.6 | 14 | 13 | 13 | 12 | 12 | 11 | 10 | 9 | 9 | 8 | 8 | 9 | 9 | 8 | 8 | 7 | |
| 0.6≤d≤0.65 | 12 | 11 | 11 | 10 | 10 | 9 | 8 | 7 | 7 | 6 | 6 | 7 | 7 | 6 | 6 | 5 | |
| 0.65≤d≤0.7 | 11 | 10 | 10 | 9 | 9 | 8 | 7 | 6 | 6 | 5 | 5 | 6 | 6 | 5 | 5 | 4 | |
| 0.7≤d≤0.75 | 2.5 | 15 | 14 | 14 | 13 | 13 | 12 | 14 | 13 | 13 | 12 | 12 | 12 | 12 | 11 | 11 | 10 |
| 0.75≤d≤0.8 | 14 | 13 | 13 | 12 | 12 | 11 | 13 | 12 | 12 | 11 | 11 | 11 | 11 | 10 | 10 | 9 | |
| 0.8≤d≤0.85 | 13 | 12 | 12 | 11 | 11 | 10 | 12 | 11 | 11 | 10 | 10 | 10 | 10 | 9 | 9 | 8 | |
| 0.85≤d≤0.9 | 11 | 10 | 10 | 9 | 9 | 8 | 11 | 10 | 10 | 9 | 9 | 8 | 8 | 7 | 7 | 6 | |
| 0.9≤d≤0.95 | 10 | 9 | 9 | 8 | 8 | 7 | 10 | 9 | 9 | 8 | 8 | 7 | 7 | 6 | 6 | 5 | |
| 0.95≤d≤1 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 7 | 7 | 7 | 7 | 6 | 6 | 5 | |
| 1≤d≤1.1 | 3.75 | 15 | 14 | 14 | 13 | 13 | 12 | 15 | 14 | 14 | 13 | 13 | 12 | 12 | 11 | 11 | 10 |
| 1.1≤d≤1.2 | 13 | 12 | 12 | 11 | 11 | 11 | 13 | 12 | 12 | 11 | 11 | 10 | 10 | 9 | 9 | 8 | |
| 1.2≤d≤1.3 | 12 | 11 | 11 | 10 | 10 | 10 | 12 | 11 | 11 | 10 | 10 | 9 | 9 | 8 | 8 | 7 | |
| 1.3≤d≤1.4 | 10 | 9 | 9 | 8 | 8 | 8 | 10 | 9 | 9 | 8 | 8 | 7 | 7 | 6 | 6 | 5 | |
| 1.4≤d≤1.5 | 9 | 8 | 8 | 7 | 7 | 7 | 9 | 8 | 8 | 7 | 7 | 6 | 6 | 5 | 5 | 4 | |
| 1.5≤d≤1.6 | 5 | 12 | 11 | 11 | 10 | 10 | 9 | 12 | 11 | 11 | 10 | 10 | 9 | 9 | 8 | 8 | 7 |
| 1.6≤d≤1.7 | 11 | 10 | 10 | 9 | 9 | 8 | 11 | 10 | 10 | 9 | 9 | 8 | 8 | 7 | 7 | 6 | |
| 1.7≤d≤1.8 | 10 | 9 | 9 | 8 | 8 | 7 | 10 | 9 | 9 | 8 | 8 | 7 | 7 | 6 | 6 | 5 | |
| 1.8≤d≤1.9 | 9 | 8 | 8 | 7 | 7 | 6 | 9 | 8 | 8 | 7 | 7 | 6 | 6 | 5 | 5 | 4 | |
| 1.9≤d≤2 | 8 | 7 | 7 | 6 | 6 | 5 | 8 | 7 | 7 | 6 | 6 | 5 | 5 | 4 | 4 | 3 | |
| 2≤d≤2.1 | 7.5 | 13 | 12 | 12 | 11 | 11 | 10 | 12 | 11 | 11 | 10 | 10 | 10 | 10 | 9 | 9 | 8 |
| 2.1≤d≤2.2 | 12 | 11 | 11 | 10 | 10 | 9 | 11 | 10 | 10 | 9 | 9 | 9 | 9 | 8 | 8 | 7 | |
| 2.2≤d≤2.4 | 11 | 10 | 10 | 9 | 9 | 8 | 10 | 9 | 9 | 8 | 8 | 8 | 8 | 7 | 7 | 6 | |
| 2.4≤d≤2.5 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 7 | 7 | 7 | 7 | 6 | 6 | 5 | |
| 2.5≤d≤2.6 | 9 | 8 | 8 | 7 | 7 | 6 | 8 | 7 | 7 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 2.6≤d≤2.7 | 8 | 7 | 7 | 6 | 6 | 5 | 7 | 6 | 6 | 5 | 5 | 5 | 5 | 4 | 4 | 3 | |
| 2.7≤d≤3 | 7 | 6 | 6 | 5 | 5 | 4 | 6 | 5 | 5 | 4 | 4 | 4 | 4 | 3 | 3 | 2 | |
| 3≤d≤3.1 | 10 | 11 | 10 | 10 | 9 | 9 | 8 | 10 | 9 | 9 | 8 | 8 | 8 | 8 | 7 | 7 | 6 |
| 3.1≤d≤3.2 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 7 | 7 | 7 | 7 | 6 | 6 | 5 | |
| 3.2≤d≤3.3 | 9 | 8 | 8 | 7 | 7 | 6 | 8 | 7 | 7 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 3.3≤d≤3.4 | 9 | 8 | 8 | 7 | 7 | 6 | 8 | 7 | 7 | 5 | 5 | 6 | 6 | 5 | 5 | 4 | |
| 3.4≤d≤3.5 | 8 | 7 | 7 | 6 | 6 | 5 | 8 | 7 | 7 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 3.5≤d≤3.6 | 7 | 6 | 6 | 5 | 5 | 4 | 6 | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | 2 | |
| 3.6≤d≤3.7 | 7 | 6 | 6 | 5 | 5 | 4 | 6 | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 | 2 | |
| 3.7≤d≤3.8 | 6 | 5 | 5 | 4 | 4 | 3 | 5 | 4 | 4 | 2 | 2 | 4 | 4 | 3 | 3 | 2 | |
| 3.8≤d≤3.9 | 6 | 5 | 5 | 4 | 4 | 3 | 5 | 4 | 4 | 2 | 2 | 4 | 4 | 3 | 3 | 2 | |
| 3.9≤d≤4 | 6 | 5 | 5 | 4 | 4 | 3 | 5 | 4 | 4 | 2 | 2 | 4 | 4 | 3 | 3 | 2 | |
| 4≤d≤4.1 | 15 | 11 | 10 | 10 | 9 | 9 | 8 | 10 | 9 | 9 | 7 | 7 | 7 | 7 | 6 | 6 | 5 |
| 4.1≤d≤4.2 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 4.2≤d≤4.3 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 4.3≤d≤4.4 | 10 | 9 | 9 | 8 | 8 | 7 | 9 | 8 | 8 | 6 | 6 | 6 | 6 | 5 | 5 | 4 | |
| 4.4 | 9 | 8 | 8 | 7 | 7 | 6 | 8 | 8 | 8 | 6 | 6 | 5 | 5 | 4 | 4 | 3 | |
| Dia.(d) | Test Length | Ungalvanized and B Grade Galvanized Steel Wire | AB Grade Galvanized Steel Wire | A Grade Galvanized Steel Wire | |||||||||||||
| Tensile Strength/Mpa | |||||||||||||||||
| mm | 1570 | 1670 | 1770 | 1870 | 1960 | 2160 | 1570 | 1670 | 1770 | 1870 | 1960 | 1470 | 1570 | 1670 | 1770 | 1870 | |
| 0.5≤d≤1 | 100*d | 26 | 24 | 24 | 22 | 22 | 20 | 24 | 22 | 22 | 20 | 20 | 17 | 16 | 14 | 14 | 13 |
| 1≤d≤1.3 | 25 | 22 | 22 | 20 | 20 | 18 | 22 | 20 | 20 | 18 | 18 | 16 | 15 | 13 | 13 | 12 | |
| 1.3≤d≤1.8 | 24 | 21 | 21 | 19 | 19 | 17 | 21 | 19 | 19 | 17 | 17 | 15 | 14 | 12 | 12 | 11 | |
| 1.8≤d≤2.3 | 22 | 20 | 20 | 18 | 18 | 16 | 20 | 18 | 18 | 16 | 16 | 15 | 14 | 12 | 12 | 11 | |
| 2.3≤d≤3 | 20 | 19 | 19 | 17 | 17 | 15 | 18 | 16 | 16 | 14 | 14 | 13 | 12 | 10 | 10 | 9 | |
| 3≤d≤3.5 | 19 | 17 | 17 | 15 | 15 | 13 | 17 | 14 | 14 | 12 | 12 | 11 | 10 | 8 | 8 | 7 | |
| 3.5≤d≤3.7 | 17 | 15 | 15 | 13 | 13 | 11 | 15 | 13 | 13 | 11 | 11 | 9 | 8 | 6 | 6 | 5 | |
| 3.7≤d≤4 | 15 | 13 | 13 | 11 | 11 | 9 | 13 | 11 | 11 | 9 | 9 | 8 | 7 | 5 | 5 | 4 | |
| 4≤d≤4.2 | 14 | 12 | 12 | 10 | 10 | 8 | 12 | 10 | 10 | 8 | 8 | 7 | 5 | 3 | 3 | 2 | |
| 4.2≤d≤4.4 | 13 | 11 | 11 | 9 | 9 | 7 | 11 | 9 | 9 | 7 | 7 | 7 | 5 | 3 | 3 | 2 | |
