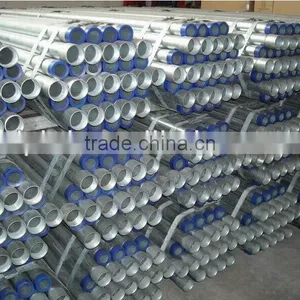

Top 3 Intermediate Galvanized Steel Conduit/IMC conduit Pipe/IMC Conduit Tube

Specifications

galvanized IMC Conduit pipe " UL1242
1.Standard:UL1242 ANSI C 80.6
2.Length:3.05m
3.Surface:PG&HDG
4.End:NPT threaded

Intermediate Galvanized Steel Conduit/IMC conduit Pipe/IMC Conduit Tube Details:







1.Standard:UL1242 & ANSI C80.6



2.Tade Size : from 1/2” to 4”



3.Length: 3050mm or according to customer’s requirement



4.Both ends: threaded both ends with one coupling and plastic cap



5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface finished: Hot dip galvanized(HDG) and pre-galvanized(PG)
7.Material : carbon steel coil

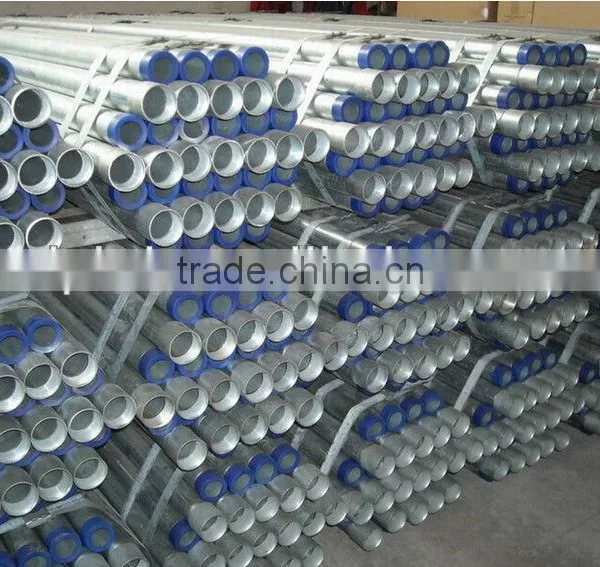

8.Package: the conduits coverd with pvc paper then tied with steel straps



9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C



10.Payment Term: L/C at sight or T/T







Following is the size for your reference





U.S.	Metric	Lbs	Kg	In.	mm	In.	mm
1/2	16	62	28.1	0.815	20.70	0.070	1.79
3/4	21	84	38.1	1.029	26.13	0.075	1.90
1	27	119	54.0	1.290	32.76	0.085	2.16
1-1/4	35	158	71.7	1.638	41.60	0.085	2.16
1-1/2	41	194	88.0	1.883	47.82	0.090	2.29
2	53	256	116.1	2.360	59.94	0.095	2.41
2-1/2	63	441	200.0	2.857	72.56	0.140	3.56
3	78	543	246.3	3.476	88.29	0.140	3.56
3-1/2	91	629	285.3	3.971	100.86	0.140	3.56
4	103	700	317.5	4.466	113.43	0.140	3.56



 Applicable Tolerances:

Length: 10Ft (3.05m) ± ¼” (±6.35mm).

Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
