Product Details
Type: | Other, Cold rolling mill | Place of Origin: | Shandong, China | Brand Name: | Tiema |
Model Number: | ZL158-II | Voltage: | 380V | Power(W): | 45kw |
Weight: | 9500kg | Warranty: | 6 months |
Product Description
Specifications
flexibility to adjust the production specificationhigh efficiency production
saving raw material
high leaf hardness
The product video link:
/v_show/id_XMjE5MTYyMDM2.html

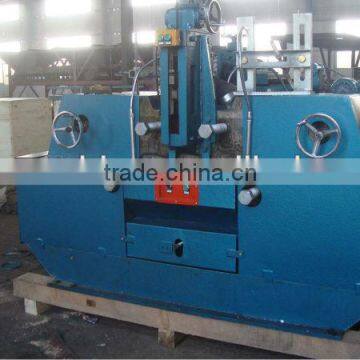

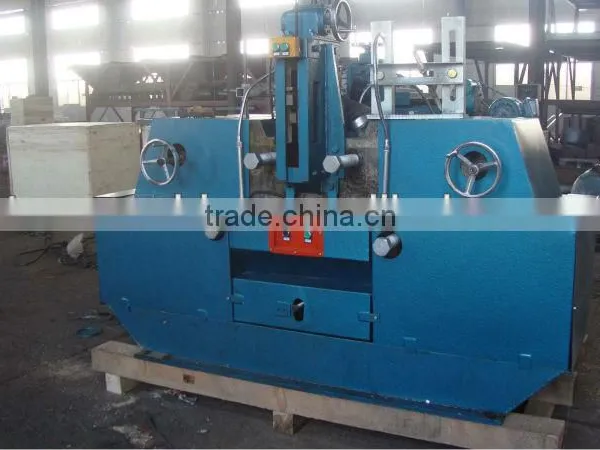

ZL series Semi-active Spiral Blade Cold Rolling Mill are the second generation Semi-active Spiral Blade Cold Rolling Mill products of Shandong TIEMA Machinery., LTD, which researched and developed by our company's practical experience.
ZL series of products are the advanced equipments for producing spiral blade ,which use the strip steel as the raw material and make continuous rolling operation. Compared with conventional cold forming practices which is used current widely, it just needs do some simple adjustments on the equipment's adjustable parts (don't need replace parts), like the device dials and pressure gauges, and then roll out various kinds of spiral blades required. This series of products have the advantages of flexibility to adjust the production specification, high efficiency production, saving raw materials, high leaf hardness and good wear resistance.
Today, the series of spiral blade cold rolling mills have been developed ZL158-II to be market, and praised by domestic and foreign users. More new products—automatic CNC (Computerized Numerical Control) spiral blade cold rolling mills have been developed completely, and will be launched on the market recently.
Main technical specification:
Model | ZL158-II |
Allows the thickness of rolled strip | 2mm ~ 6mm |
The maximum width of the strip rolling | 100mm |
The minimum diameter of the rolling leaf | 35mm |
The maximum diameter of the rolling blade | 400mm |
Maximum Efficient Rate of Production | 0.6 ~ 1t/h |
Mechanical Power | 45kw |
Gross Weight | 9,500kg |
If you are interested in these products, please contact us to obtain the products' video and related material files.
--------------------------------------------------------------------------------------------------
