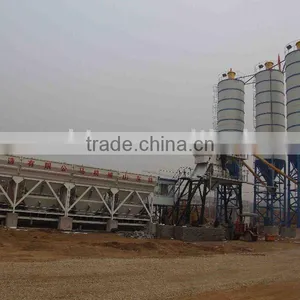

Batching Plant HZS35

Name: Batching Plant HZS35
Brand: TIEMA
SKU: 141887064
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

TIEMA

Model Number:

HZS35

Shandong Tiema Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name TIEMA

Model Number HZS35

Specifications

1.Be made up of mixing system, batching system, electric control system, storage silo, powder convery
2.ISO9001,CE
3.US,Europe

The mixing console is double-horizontal-shaft forced type, good mixing quality and efficient.

Combined structure. It is easy to be moved. Complete engine set installation


MODEL	HZS35 Simple type
MAX.PRODUCTIVITY	35M³/H
SPECIFICATION	1. centralized control 2. discharging height :3.8m
mixing console	JS750
Brand name	Tiema
Place of origin	China
Measuring Precision of the water(%)	±2
Measuring Precision of cement(%)	±1
Measuring Precision of admixture(%)	±2
the precision of aggregat(%)	±2
Max.Measuring value of Cement	400kg
Max.Measuring value ofaggregate	2000g
Max.Measuring value of Constellation	200kg
Max.Measuring value of admixture	40kg
delivery value of screw conveyer	35t/h

Concrete mixing plant HZS25 configuration

item	Commodity name			description	quatity	note
01	Mixing console			JS500	1	Js500 dual-axial mixing; Discharge form :pneumatic
02	Batching plant			PLD1200A	1	Pld1200III electronic batching plant ;discharging with pneumatic; automatic Batching of Aggregate
03	Feeding system of aggregate				1	Feeding syetem with Climb bucket;high efficient;easy to overhauling
04	Measuringsystem of cement				1	Measuringsystem with electronic balance;Pneumatic butterfly discharging; The central control
05	Measuring system of water				1	Measuring system with electronic balance; The central control
06	filler bin	Cement		SYN60T	1	With Silo material level instrument, warehouse top precipitator, unloading valve disc, current mouth, blowing arch breaker
		flyash		SYN100T	2
07	screw conveyer		LSY219-6M		1	Connect with , universial feeding hole
08	Pneumatic system				1	With 0.8m³air compressor
