Specifications
Polycarbonate Corrugated sheet (Ti-Lite TRIMDEK)TiO2 Integrated
100% Virgin Mitsubishi resin
SD optical grade UV400 Coating
Ti-Lite
Exceptional Shading and without Heat
As we know, polycarbonate is the clearest of all plastic resins. How do we add shading properties effectively? Coloring is clearly not the best solution.
At VULCAN Plastics we developed Ti-Lite; integrating TiO2 (Titanium Dioxide) along with other technologies to cope with this issue.
The result is a product with excellent shading properties (46% light transmission rate), and exceptional heat insulation (temperature drop of 7°c~9°c depending on the relative temperature and humidity).
Apart from using the best raw materials, VULCAN Polycarbonate TRIMDEKprofile sheet differs from other brand products by having added grooves at the 131mm area to allow faster drainage. VULCAN TRIMDEK profile sheets have a long lifespan and is extensively tried and true in the Americas; choose between five different material grades to suit your needs*.
Width | Wave Span | Wave Height | Thickness | Production Length | |||
Min. | Max. | Min. | Max. | 20' | 40' | ||
5 Corrugations | 190mm | 27mm | 0.6mm | 2.0mm | Max. | Max. | |
820mm | 5800mm | 11600mm | |||||
Specifications

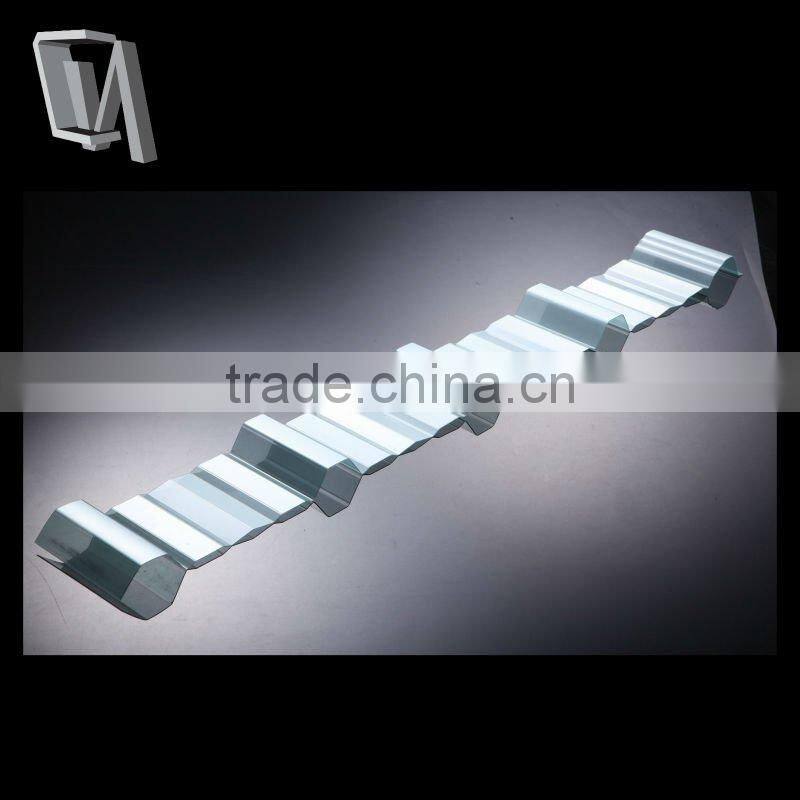

- Profile: Polycarbonate TRIMDEK Corrugated (5 Corrugations)

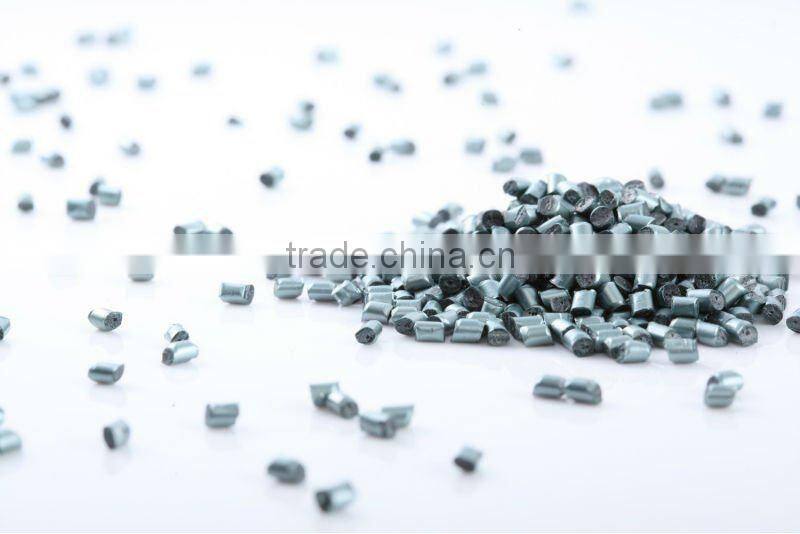

- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- Ti-Lite Technology: Added TiO2 and other heat blocking material.
- Standard Colors: Clear, Bronze, Blue, Green, Opal.
- Thickness: 0.6mm~2.0mm
- Width: 820mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
- Warranty: 10 years. (5 for yellowing, 10 for usage)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
- Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
Ti-Lite Technology
- Ti-Lite provides excellent shading properties (46% light transmission rate), and exceptional heat insulation (temperature drop of 7°c~9°c depending on the relative temperature and humidity).
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Design Flexibility
- VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.
Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Applicable Areas
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK sheet used on our own warehouse.
From the outside:
From the inside - Sufficient lighting with no glare
VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK sheet uses 100% Virgin resin from Mitsubishi Japan, Bayer Germany, Sabic (GE), and with added TiO2 integration.
All of our sheets are produced using our advanced Co-Extrusion process using EDI (Extrusion Dies Inc.) feedblocks and controlled by Dynisco.
As with all of our polycarbonate products, VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK uses Optical Grade SD Polyca UV400 resin from Sumitomo Dow Chemicals Japan to protect itself from harmful UV rays.
Impurity leads to less quality, which is why VULCAN Polycarbonate sheets are produced in clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.
Optional Plus+ surface treatment provides added light softening properties. (MOQ required)
Other proprietary material from VULCAN Plastics
