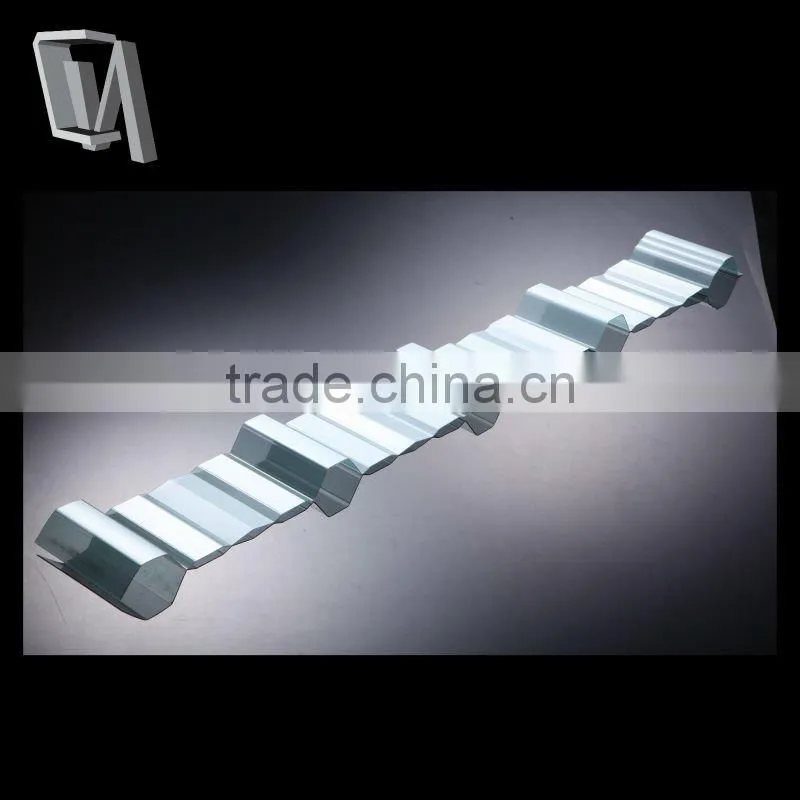

Polycarbonate Corrugated sheet (Ti-Lite TRIMDEK)

Specifications

Polycarbonate Corrugated sheet (Ti-Lite TRIMDEK)
TiO2 Integrated
100% Virgin Mitsubishi resin
SD optical grade UV400 Coating

Ti-Lite

Exceptional Shading and without Heat



As we know, polycarbonate is the clearest of all plastic resins.  How do we add shading properties effectively?  Coloring is clearly not the best solution.







At VULCAN Plastics we developed Ti-Lite; integrating TiO2 (Titanium Dioxide) along with other technologies to cope with this issue.



The result is a product with excellent shading properties (46% light transmission rate), and exceptional heat insulation (temperature drop of 7°c~9°c depending on the relative temperature and humidity).





Apart from using the best raw materials, VULCAN Polycarbonate TRIMDEKprofile sheet differs from other brand products by having added grooves at the 131mm area to allow faster drainage. VULCAN TRIMDEK profile sheets have a long lifespan and is extensively tried and true in the Americas; choose between five different material grades to suit your needs*.



Width		Wave Span	Wave Height	Thickness		Production Length
Min.	Max.			Min.	Max.	20'	40'
5 Corrugations		190mm	27mm	0.6mm	2.0mm	Max.	Max.
820mm						5800mm	11600mm



Specifications

• Profile: Polycarbonate TRIMDEK Corrugated (5 Corrugations)
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• Ti-Lite Technology: Added TiO2 and other heat blocking material.
• Color: Titania.
• Thickness: 0.6mm~2.0mm
• Width: 820mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
• Warranty: 10 years. (5 for yellowing, 10 for usage)

Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.

Ti-Lite Technology

• Ti-Lite provides excellent shading properties (46% light transmission rate), and exceptional heat insulation (temperature drop of 7°c~9°c depending on the relative temperature and humidity).

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Design Flexibility

• VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.



Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).



Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.



Applicable Areas

Agricultural Greenhouse

Garden Greenhouse

Flower Greenhouse

Multi-span Greenhouse

Singe-span Greenhouse

Greenhouse roofing

Greenhouse Walls

Aquaculture Greenhouse

Polycarbonate sound barriers

Polycarbonate Highway barriers

Polycarbonate Skylight

Polycarbonate Warehouse

Polycarbonate Roofing

Warehouse Roofing

Warehouse Skylight

Industrial Skylight

Interior decoration

Car Park

Glazing

Patios



VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK sheet used on our own warehouse.

From the outside:

From the inside - Sufficient lighting with no glare



VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK sheet uses 100% Virgin resin from Mitsubishi Japan, Bayer Germany, Sabic (GE), and with added TiO2 integration.



All of our sheets are produced using our advanced Co-Extrusion process using EDI (Extrusion Dies Inc.) feedblocks and controlled by Dynisco.



As with all of our polycarbonate products, VULCAN Polycarbonate Corrugated Ti-Lite TRIMDEK uses Optical Grade SD Polyca UV400 resin from Sumitomo Dow Chemicals Japan to protect itself from harmful UV rays.



Impurity leads to less quality, which is why VULCAN Polycarbonate sheets are produced in clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.

Class 5000 Clean Rooms



Optional Plus+ surface treatment provides added light softening properties. (MOQ required)
