Polycarbonate Corrugated sheet (Pearly GREEN TRIMDEK)

Specifications

Polycarbonate Corrugated sheets (Pearly GREEN)

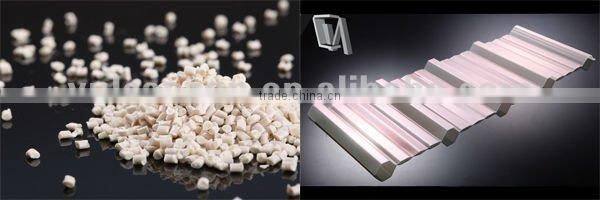

1. 100% Virgin Mitsubishi resin
2. Nano-Grade pearl powder
3. SD UV400 Coating

VULCAN Pearly GREEN

Good to be GREEN





PEARLY GREENTechnology: Good to be GREEN



GREEN is beneficial to living organisms.



VULCAN Polycarbonate Corrugated PEARLY GREEN ROMA sheet was developed specially for living organisms and general purposes.

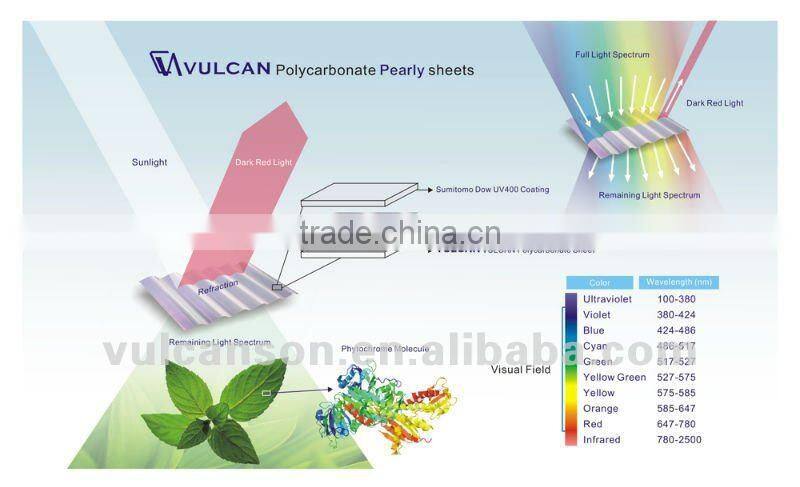

PEARLY GREEN pigment reflects rather than absorbs heat producing far-red solar radiation without affecting the transmittance of the GREEN spectrum, and retains health benefiting GREEN light.  This makes it easier to control the climate, particularly in the summer, and maintain optimum room temperature.*

*A large proportion of the heat increasing far-red light is reflected.



VULCAN Polycarbonate Corrugated Pearly Green sheets have a Lilac / Greenish Hue and suitable for use in archetecture.  The maximum transmission of the passing light is in the green area of the visible light - exactly where the human eye is most light sensitive.

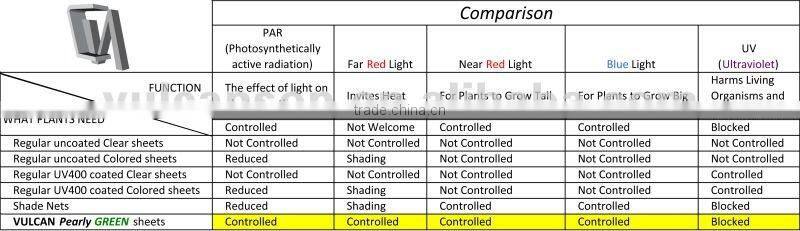

Pearly Green compared with sheets using different coating methods.

VULCAN Polycarbonate Corrugated Pearly GREEN sheet has a Lilac/Greenish Hue, and creates a significant drop in temperature (Depending on the individual application conditions, rooms are up to 15°c cooler compared to non-pigmented systems), owing to its ability to block harmful UV and IR rays. Since Pearly GREEN was specially designed for humans and living organisms, and focuses more on it's cooling abilities.

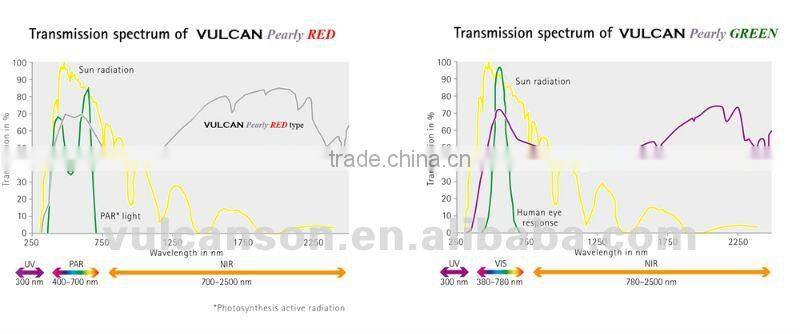

The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN.





TRIMDEK (190/27)





Apart from using the best raw materials, VULCAN Polycarbonate TRIMDEKprofile sheet differs from other brand products by having added grooves at the 131mm area to allow faster drainage. VULCAN TRIMDEK profile sheets have a long lifespan and is extensively tried and true in the Americas; choose between five different material grades to suit your needs.



Width		Wave Span	Wave Height	Thickness		Production Length
Min.	Max.			Min.	Max.	20'	40'
5 Corrugations		190mm	27mm	0.6mm	2.0mm	Max.	Max.
820mm						5800mm	11600mm



Specifications

• Profile: Polycarbonate TRIMDEK Corrugated (190/27) 5 Corrugations.
• Raw Material: 100% Virgin Optical Grade resin from Bayer Germany.
• UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• PEARLY GREEN Coating: Weather resistant grade material developed with a renowned pigment manufacturer in Germany.
• Color: Reddish / Greenish hue.
• Thickness: 0.6mm~2.0mm
• Width: 670mm~1060mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
• Warranty: 10 years. (5 for yellowing, 10 for usage)

Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.

PEARLY GREEN Coating

• With particle sizes ranging from 10~60μm, PEARLY GREEN is suitable for general-purpose infrared blocking applications.

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Design Flexibility

• VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.

Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).



Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.



Applicable Areas

Signs and Billboards

Polycarbonate sound barriers

Polycarbonate Highway barriers

Polycarbonate Skylight

Polycarbonate Warehouse

Polycarbonate Roofing

Warehouse Roofing

Warehouse Skylight

Industrial Skylight

Interior decoration

Car Park

Glazing

Patios



Machinery and Raw Material

As with all of our polycarbonate products, VULCAN Pearly uses 100% Virgin Material from Mitsubishi Japan, Bayer Germany, Sabic (GE), and Optical Grade SD Polyca UV400 Coating resin from Sumitomo Dow Chemicals Japan to protect itself from harmful UV rays.



VULCAN Polycarbonate Sheets are produced using advanced Co-Extrusion process to ensure an evenly UV coated surface. We use feedblocks from EDI (Extrusion Dies Inc.) and the extrusion process is controlled from Dynisco systems.

Feedblocks: EDI (Extrusion Dies Industries) to ensure even material flow.



Co-extrusion process is fully computer controlled by Dynisco systems.



Impurity leads to less quality, which is why VULCAN Polycarbonate sheets are produced in Class 5000 clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.



VULCAN Pearly Series can be made into the following Profiles:





Optional Plus+ surface treatment provides added light softening properties. (MOQ required)



Other proprietary materials from VULCAN Plastics
