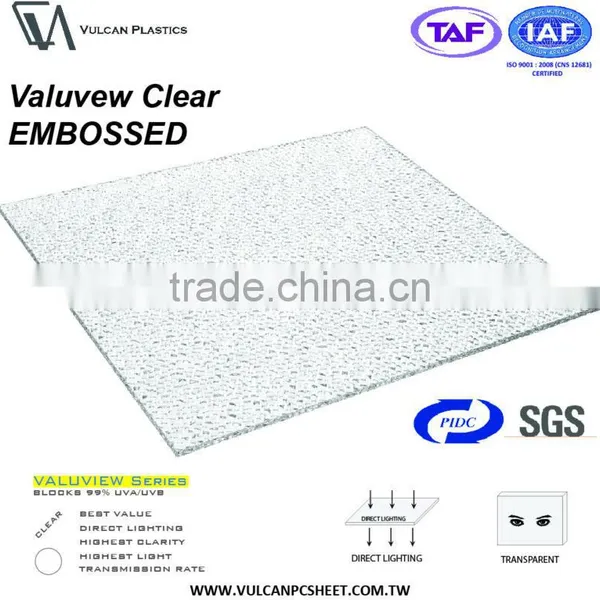

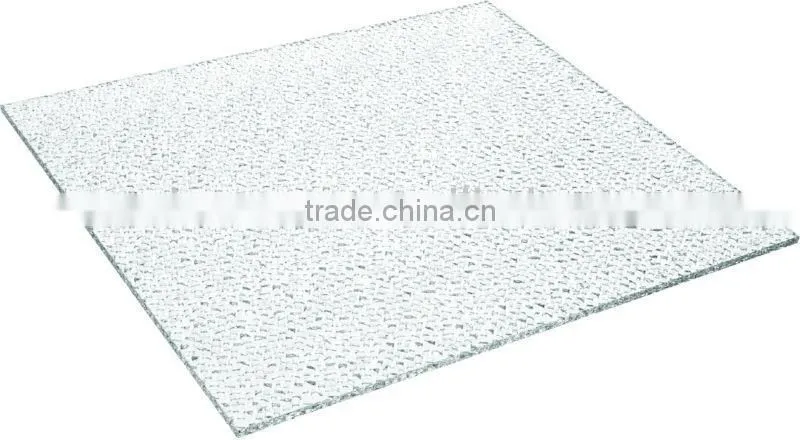

Thick Colored Polycarbonate Solid Embossed Clear Sheet (Valuview Series)

VULCAN Polycarbonate Solid Embossed sheet offers exceptional strength and glazing properties.  Its high impact strengh and ablility to withstand difficult weather conditions makes it the perfect choice over glass, FRP and  Acrylic*.

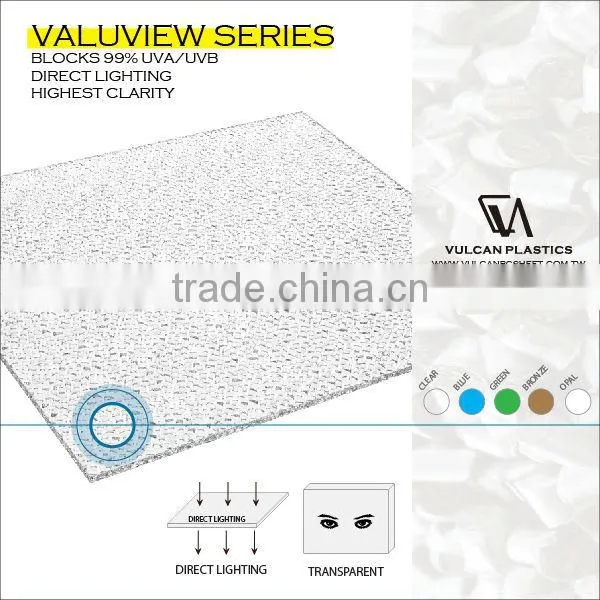

The Embossed texture of VULCAN Polycarbonate Valuview Solid Embossed sheet targets users requiring softened, indirect light exposure.

*Polycarbonate impact strength: 250 times over glass, 10 times over FRP and Acrylic.

Specifications – Omipa Extrusion Machine

• Profile: Polycarbonate Solid Embossed
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV: Included in Raw Material

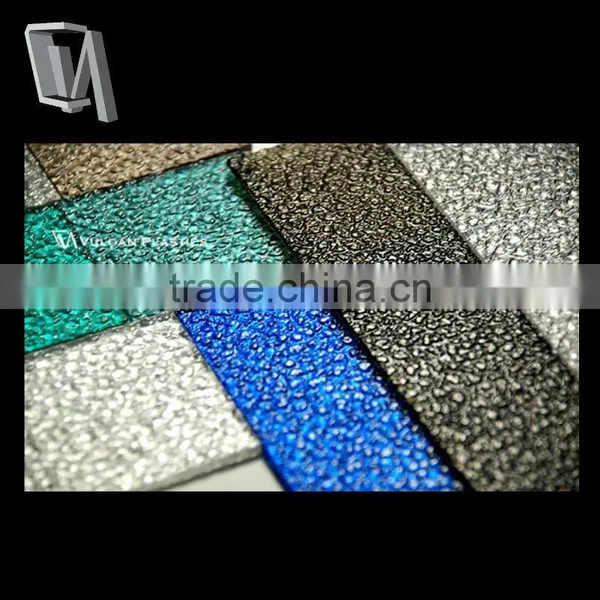

• Standard Material/Colors: Clear, Bronze, Blue, Green, Opal.
• Propriety Material: LiteGuide, Ti-Lite Metallic Silver/Green/Blue/Bronze, Pearly RED, Pearly GREEN.

• Thickness: 1.6mm~6mm
• Width: 600mm~1900mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request).  Rolls are also doable.

• Warranty: 3 years.


Specifications – Breyer Machine

• Profile: Polycarbonate Solid Embossed
• Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
• UV Coating: SINGLE SIDED Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
• Standard Material/Colors: Clear, Bronze, Blue, Green, Opal.
• Propriety Material: LiteGuide, Ti-Lite Metallic Silver/Green/Blue/Bronze, Pearly RED, Pearly GREEN.

• Thickness: 1.7mm~10mm
• Width: 600mm~1900mm
• Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request). Rolls are also doable.

• Warranty: 10 years. (5 for yellowing, 10 for usage)

Product Strengths

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Double Sided Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

High impact resistance

• 250 times the impact strength over glass and 10 times over FRP and Acrylic.

Fire Retardant

• Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.

Design Flexibility

• VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.

Quality Standards

VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

Machinery

We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.

Log onto our Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

Applicable Areas

Aquaculture Greenhouse

Polycarbonate sound barriers

Polycarbonate Highway barriers

Polycarbonate Skylight

Polycarbonate Warehouse

Polycarbonate Roofing

Warehouse Roofing

Wall and Flooring

Warehouse Skylight

Industrial Skylight

Interior decoration

Car Park

Glazing

Patios

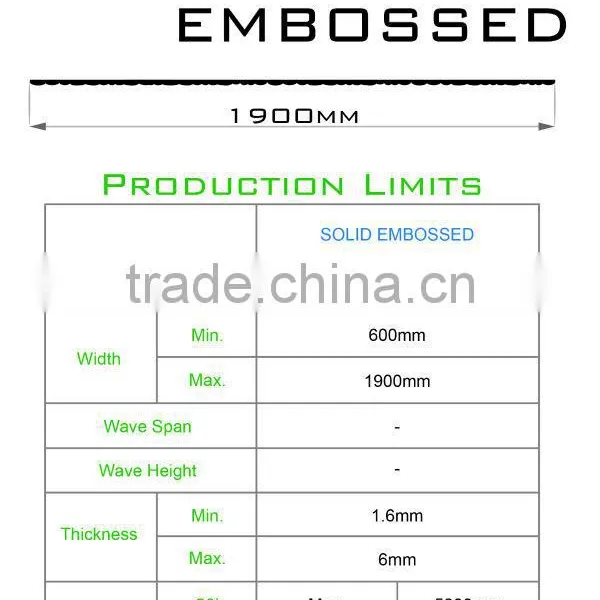

VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.  Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Minimum Order Quantity is 10 tons per profile.

All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.

*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.

VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.

We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

For More information, visit our

Website: .tw

E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF

Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
