Specifications
Polycarbonate sheet (Valuview ROMA)1. 100% Virgin Mitsubishi resin
2. SD UV400 Coating
3. 10 years warranty.

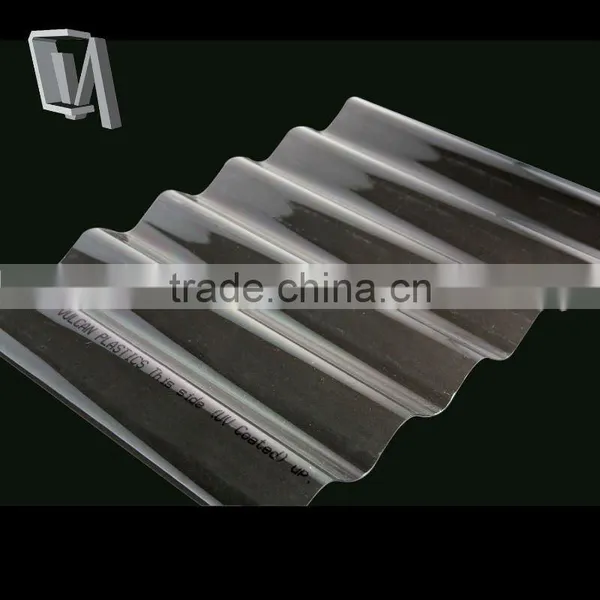

VULCAN Polycarbonate Corrugated Valuview ROMA (76/18) profile sheets are the most sought of product of the VULCAN corrugated sheets family. Used extensively in agricultural greenhouse projects throughout the globe, our Valuview ROMA (76/18) survives the most demanding conditions. Customers can choose between five different material grades to suit your needs*.
Width | Wave Span | Wave Height | Thickness | Production Length | |||
Min. | Max. | Min. | Max. | 20' | 40' | ||
9 Corrugations | 14.5 Corrugations | 76mm | 18mm | 0.6mm | 2.0mm | Max. | Max. |
670mm | 1060mm | 5800mm | 11600mm | ||||
Specifications
- Profile: Polycarbonate ROMA (76/18) Medium Circular Corrugated
- Raw Material: 100% Virgin Resin from Mitsubishi Japan, Bayer Germany, Sabic (GE).
- UV Coating: Optical Grade SD Polyca UV400 Coating (Sumitomo Dow Chemicals Japan)
- Standard Colors: Clear, Bronze, Blue, Green, Opal.
- Thickness: 0.6mm~2.0mm
- Width: 670mm~1060mm
- Length: 2440mm, 3660mm, 4880mm, 5800mm, 5900mm, 9000mm, 10000mm, 11000mm, 11600mm (other sizes can be cut to length upon request)
- Warranty: 10 years. (5 for yellowing, 10 for usage)
Product Strengths
Base Material
- 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV400 Coating
- Optical Grade SD Polyca UV400 coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
Production Method
- Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)
High impact resistance
- 250 times the impact strength over glass and 10 times over FRP and Acrylic.
Fire Retardant
- Polycarbonate sheets produced with 100% Virgin material have a melting point of at least 190 degrees Celsius and produce only odorless smoke when burned.
Design Flexibility
- VULCAN Polycarbonate sheets can be tailored with different coatings to provide different light transmission rates and properties. Customers can choose between LiteGuide, Pearly RED, Pearly GREEN, Ti-Lite, and Valuview.
Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry. We are the first Polycarbonate manufacture in Asia to incorporate clean rooms for all of our extrusion lines. Our latest Breyer Solid Flat sheet machine is installed in a Class 5000 clean room (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).
Machinery
We have a total of 5 co-extrusion lines, 2 for corrugated sheets and 3 for solid sheets. Our machines are imported from Toshiba-Hitachi Japan, Omipa Italy and Breyer Germany. Our co-extrusion machine uses feedblocks from the industry leading EDI (Extrusion Dies Industries) company and controlled by the also industry leading Dynisco company computers.
Applicable Areas
Signs and Billboards

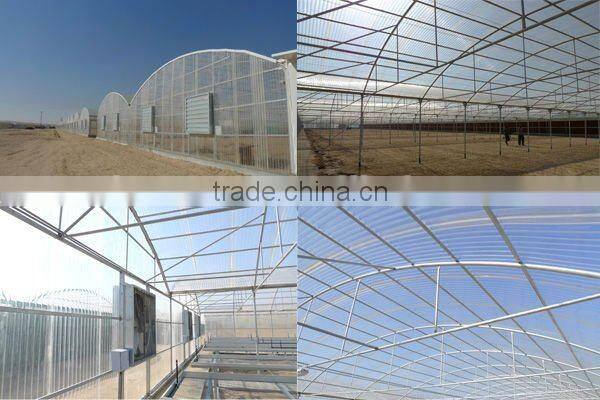

Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
Greenhouses
Raw Material - Mitsubishi Japan, Bayer Markolon, Sabic GE
UV400 Coating: SD Polyca Optical Grade UV400 material
Co-Extrusion Process
Feedblocks: EDI (Extrusion Dies Industries) to ensure even material flow.
Even material flow= Even UV400 surface Coating = Withstand sunlight longer = Long lifespan of sheet
Co-extrusion process is fully computer controlled by Dynisco systems.
Impurity leads to less quality, which is why VULCAN Polycarbonate sheets are produced in clean rooms; the cleaner the environment, the cleaner the sheets, and hence a longer lifespan.
Class 5000 Clean Rooms
Optional Plus+ surface treatment provides additional light softening properties.
Standard colors: Clear, Bronze, Blue, Green and Opal; other colors can be made to order.
Other proprietary materials from VULCAN Plastics
