Solar Polycarbonate Sheet Perfect for Living Organism (Pearly GREEN Series)

VULCAN PLASTICS

Pearly GREEN Sheet Material

Good to be GREEN

PEARLY GREEN Technology: Good to be GREEN

GREEN is beneficial to living organisms.

VULCAN Polycarbonate Corrugated PEARLY GREEN ROMA sheet was developed specially for living organisms and general purposes.

PEARLY GREEN pigment reflects rather than absorbs heat producing far-red solar radiation without affecting the transmittance of the GREEN spectrum, and retains health benefiting GREEN light.  This makes it easier to control the climate, particularly in the summer, and maintain optimum room temperature.*

*A large proportion of the heat increasing far-red light is reflected.

VULCAN Polycarbonate Corrugated Pearly Green sheets have a Lilac / Greenish Hue and suitable for use in archetecture.  The maximum transmission of the passing light is in the green area of the visible light - exactly where the human eye is most light sensitive.

Pearly Green compared with sheets using different coating methods.

VULCAN Polycarbonate Corrugated Pearly GREEN sheet has a Lilac/Greenish Hue, and creates a significant drop in temperature (Depending on the individual application conditions, rooms are up to 15°c cooler compared to non-pigmented systems), owing to its ability to block harmful UV and IR rays.

Since Pearly GREEN was specially designed for humans and living organisms, and focuses more on it's cooling abilities.

The Transmission Spectrum chart of VULCAN Polycarbonate Pearly RED and Pearly GREEN.

PEARLY GREEN Coating

• With particle sizes ranging from 10~60μm, PEARLY GREEN is suitable for general-purpose infrared blocking applications.

Heat Reflective Properties:

• Controlled NIR (780~2500nm):Temperature drop of 13°c depending on the relative temperature and humidity.

Light Transmission Rate:

• Controlled VIS (380~780nm):Excellent shading Properties - 65% light transmission rate

Production Method

• Co-Extrusion ensures evenly spread, evenly thick base material and UV coating. (A chain is only as strong as it’s weakest link.)

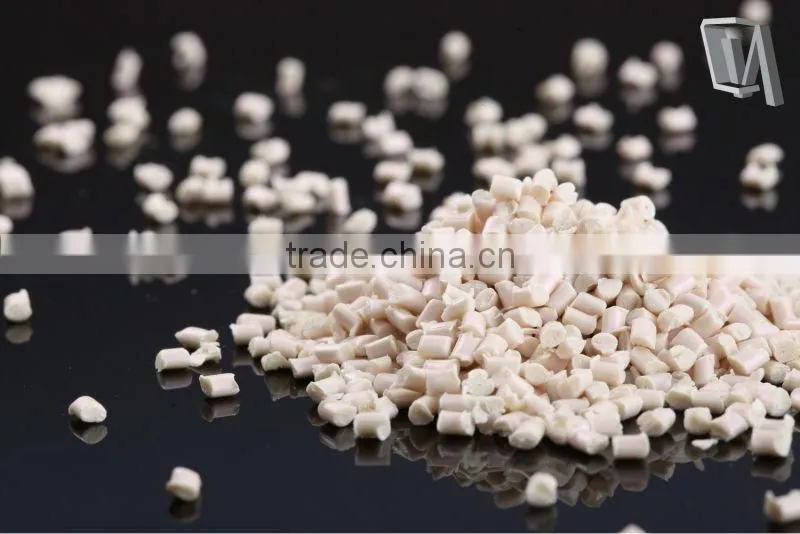

Base Material

• 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.

UV400 Coating

• Co-extruded with the Base Material, our Optical Grade UV400 resin from Sumitomo Dow Chemicals Co., LTD (Now Sumitomo Styron), blocks harmful UV rays from 280~400nm. With UV400 coating, VULCAN Polycarbonate sheets are able to last 10 years or more.

VULCAN Polycarbonate Pearly GREEN Sheets comes in 4 different Corrugated Profiles - ROMA, TRIMDEK, GRECA, MINI

and 2 different Solid Profiles - SOLID FLAT and SOLID EMBOSSED/TEXTURED.

Pearly GREEN ROMA:

Pearly GREEN TRIMDEK:

Pearly GREEN GRECA:

Pearly GREEN MINI:

Pearly GREEN SOLID FLAT:

Pearly GREEN SOLID EMBOSSED:

VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.

Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Minimum Order Quantity is 10 tons per profile.

All sheets are co-extruded with SD Polyca Optical Grade UV400 coating and are warranted for 10yrs under normal circumstances*.

*Warranty details are listed on our online Installation Manual .tw/download/VP%20Corrugated%20Sheet%20Installation%20Instructions.pdf, failure to comply shall void warranty.

VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.

We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate Class 5000 clean rooms for our extrusion lines. (the maximum number of particles per cubic foot of air of diameter greater or equal to 0.5 µm is 5000).

For More information, visit our

Website: .tw

E-Catalogue: .tw/download/VULCAN%20Polycarbonate%20Sheets%20Catalogue.PDF

Youtube Channel: /user/VULCANPLASTICSTW for a brief tour of our factory.

We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
