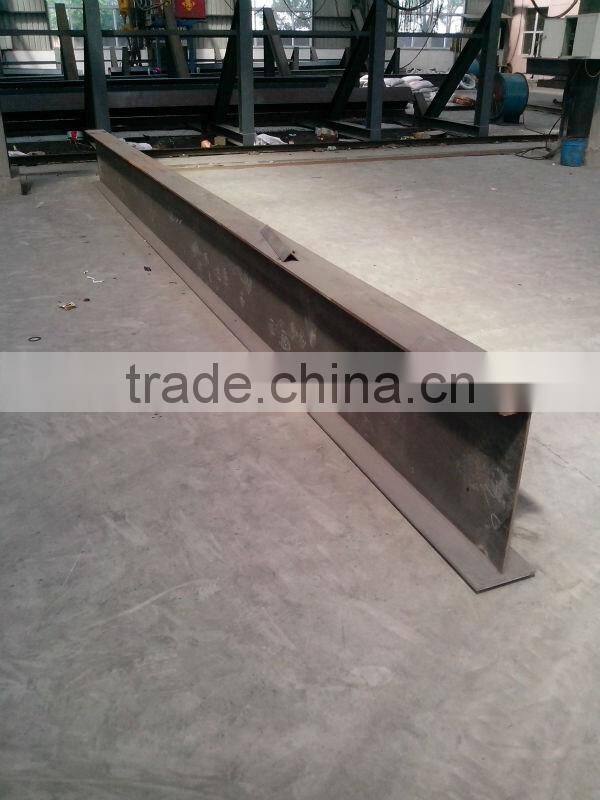

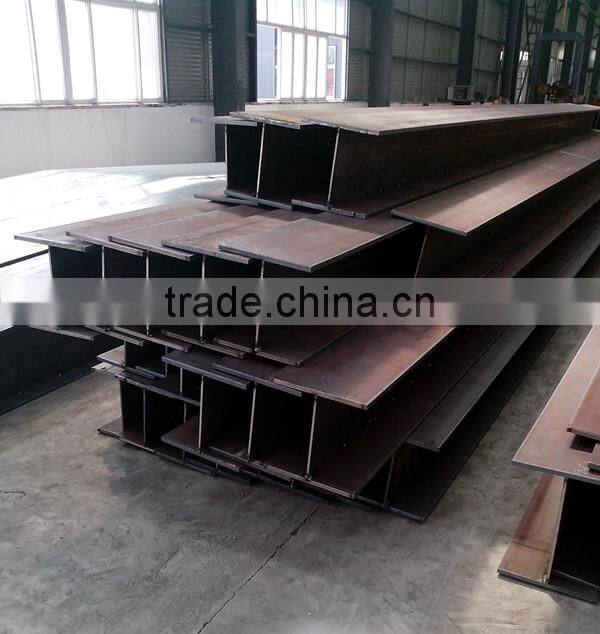

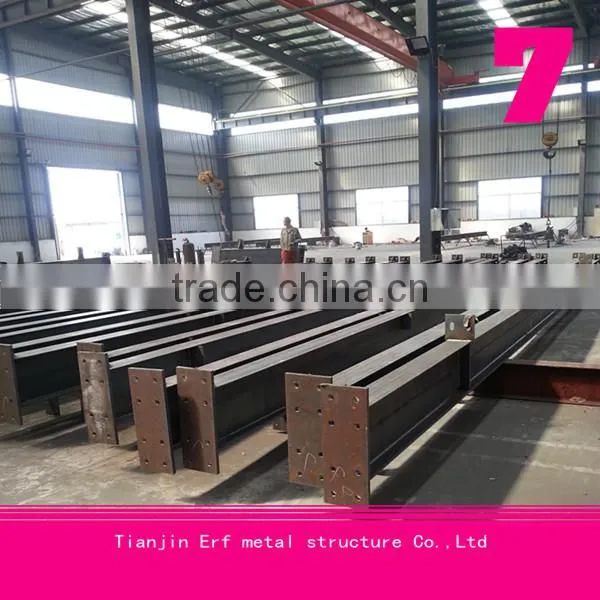

column variable cross-section steel h beam weight
- 400 Ton / Tons per Month
- Tianjin
- T/T L/C D/P D/A
- H-shaped steel bridge steel columns hot-rolled galvanized Q235B Q355B steel structure
- Steel H-Beams fromChinese rigid material H-beam I-beam
- Steel H-Beams fromChinese rigid material H-beam I-beam
- Good Quality Steel Channel C Channel Standard Sizes Supplied for All C U Z Shape Steel Channel Profile Price
- Standard Hot Rolled H-Beams Hot Rolled cold formed steel profile steel C U Z Shape Steel Channel Profile Price
- High Performance mild steel w40 Astm Hot Rolling Carbon Steel H Shape Steel Beam 150x100 h beam
Product Details
Place of Origin: | Tianjin, China | Grade: | Q235B | Technique: | Welded |
Thickness: | 8mm-50mm | Application: | Building and Construction | Length: | as per customer's requirement |
Standard: | DIN | Flange Width: | 100mm-350mm | Flange Thickness: | 8mm-28mm |
Web Width: | 100mm-800mm | Web Thickness: | 4.5mm-28mm | Brand Name: | erf |
Model Number: | steel h beam weight |
Product Description
Specifications
steel h beam weightDirect Manufacturer
material:Q235,Q345
technique: weilding
steel h beam weight
ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 | |||
H beam Section (mm) | Weight (kg/m) | ||
Height×Breadth | Web thickness | Flange thickness | |
100×100 | 6 | 8 | 16.9 |
125×125 | 6.5 | 9 | 23.6 |
150×150 | 7 | 10 | 31.1 |
175×175 | 7.5 | 11 | 40.4 |
200×200 | 8 | 12 | 49.9 |
250×250 | 9 | 14 | 71.8 |
300×300 | 10 | 15 | 93.0 |
300×300 | 15 | 15 | 105.0 |
350×350 | 12 | 19 | 134.9 |
400×400 | 13 | 21 | 171.7 |
148×100 | 6 | 9 | 20.7 |
194×150 | 6 | 9 | 29.9 |
244×175 | 7 | 11 | 43.6 |
294×200 | 8 | 12 | 55.8 |
340×250 | 9 | 14 | 78.1 |
390×300 | 10 | 16 | 104.6 |
440×300 | 11 | 18 | 120.8 |
482×300 | 11 | 15 | 110.8 |
488×300 | 11 | 18 | 124.9 |
582×300 | 12 | 17 | 132.8 |
588×300 | 12 | 20 | 147.0 |
100×50 | 5 | 7 | 9.3 |
125×60 | 6 | 8 | 13.1 |
150×75 | 5 | 7 | 14.0 |
175×90 | 5 | 8 | 18.0 |
198×99 | 4.5 | 7 | 17.8 |
200×100 | 5.5 | 8 | 20.9 |
248×124 | 5 | 8 | 25.1 |
250×125 | 6 | 9 | 29.0 |
298×149 | 5.5 | 8 | 32.0 |
300×150 | 6.5 | 9 | 36.7 |
346×174 | 6 | 9 | 41.2 |
350×175 | 7 | 11 | 49.4 |
396×199 | 7 | 11 | 56.1 |
400×200 | 8 | 13 | 65.4 |
446×199 | 8 | 12 | 65.1 |
450×200 | 9 | 14 | 74.9 |
496×199 | 9 | 14 | 77.9 |
500×200 | 10 | 16 | 88.1 |
596×199 | 10 | 15 | 92.4 |
600×200 | 11 | 17 | 103.4 |
700×300 | 13 | 24 | 181.8 |
800×300 | 14 | 26 | 206.8 |
900×300 | 16 | 28 | 240.1 |
1. The Features and Advantages:
--- If bear the same press, then the H Beam can save 10%-15% material.
--- You can have more designs of the rooms if you use H Beam than concrete.
--- The H Beam is light than the concrete, so it is easy to carry and cut the cost.
--- The Building will be more stable, if it is built by H Beam, especially the places where earthquake usually happened.
--- The H Beam is environmentally friendly and reduce the Nuisance dusts.
--- The H Beam can save the real working time, because it is easy to carry and can be used in any weather.
2. Application:
---H Beams can be used in the industry and construction.
---H Beams also can be used in the large Bridge.
---The industries of trains, automobiles and tractors also will use the H Beam.
---Frame Structure in marine and mechanical area.

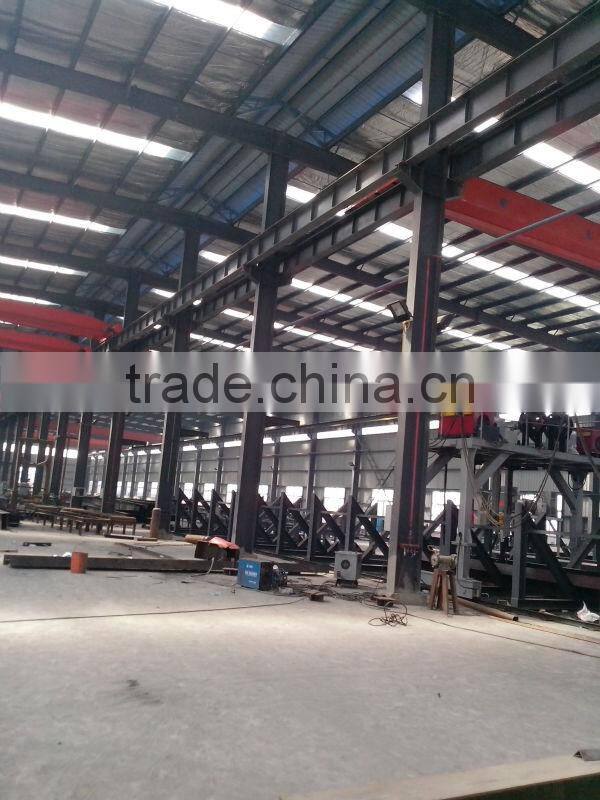

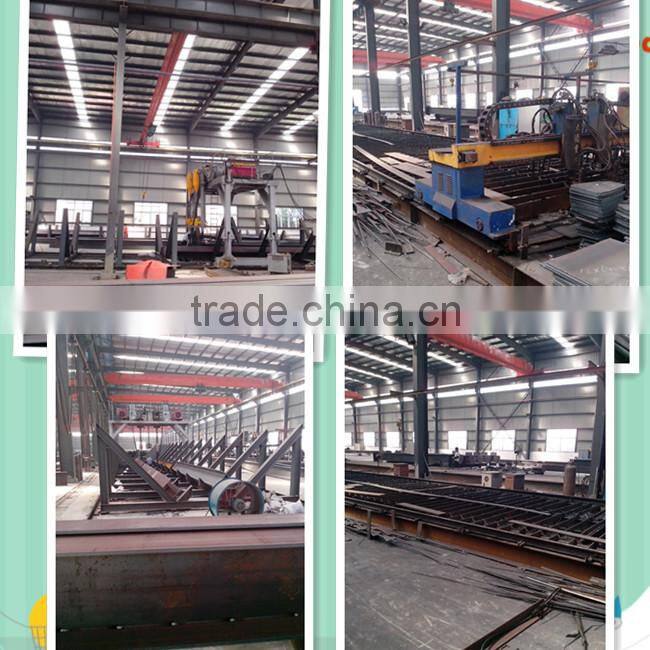

process :

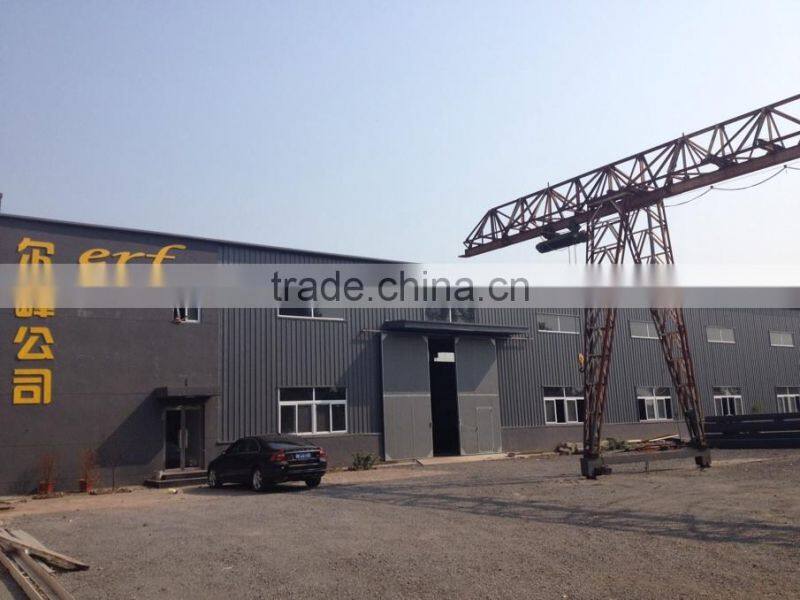

We have two factories, one of which already has more than nine years of experience. And we have establish a new factory. Our company is mainly engaged in cold bending steel, cold bend profiled steel, CZU type steel; Galvanized steel, steel door frame; Hot dip galvanized steel structure; Sisheng metal manufacturing, rolled plate kaiping; Steel, strip steel, and other products.
Contact informtion;
ADD: Room 1103, Xinyu Building, Jingwen Road, Jinghai Town, Jinghai County, Tianjin, China.
Mopile number: +86- 13001366216
Skype: Camille Yan
Contact Us
- Tianjin Erf Metal Structure Co., Ltd.
- Contact nameNancy Yu
- Phone86-22-87930376
- AddressTaibo South Road
