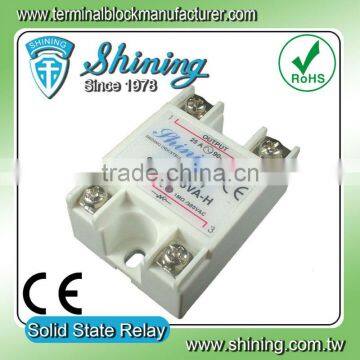

SSR-S25VA-H Single Phase Solid State Variable Relay
- 100000 Pack / Packs per Month
- Keelung
- Credit Card
- SSR-T25AA-H Three Phase Solid State Relay
- SSR-S10AA 10A 24V Single Phase Solid State Relay Module SSR
- SSR-S10AA Single Phase Zero Cross Solid State Relay Module 10A
- SSR-S10AA UL and cUL Approval Single Solid State Relay Module
- SSR-S10AA 10A 24V Solid State Dpdt Relay Symbol CE Compliant
- SSR-S10AA-H 220V Industrial Solid State Relay UL and cUL Approval
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | SSR-S25VA-H |
Theory: | Solid State Relay | Usage: | General Purpose | Size: | Miniature |
Protect Feature: | Other | Contact Load: | High Power |
Packaging Details
100 pcs/ 11.7kgs / 1ctn
Product Description
Specifications
SSR-S25VA-H Single Phase Solid State Variable RelayItem number:SSR-S10VA
Output Load Current:10A
600V Transient Capability
SSR-S25VA-H Single Phase Solid State Variable Relay
1. Item number: SSR-S25VA-H
2. Output Load Current: 25A
3. Output Load Voltage Range: 90~480VAC
4. Operate Input Current: 500 K Ohm@ 220 V , 1000 K Ohm@ 380V
5. 600V Transient Capability
6. Low EMI/EFI & Surge by Phase Controltrigger control
7. High Isolation over than 50MΩ/500VDC
8. Panel Mount
9. LED Input status Indicator
10. Integrated with removable tinger-proof cover SSR-S-CV
11. Fast reaction, high reliability and long life
12. No switching speaks, no noise, and no contact points.
13. Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
14. Packing: 100pcs/ctn, N.W. :11.6kgs /carton
15. Webpage: SSR-SxxVA Series VR to AC Solid State Relays
|
|
|
| |||
(Series Name or) | SSR-S10VA | SSR-S25VA | SSR-S40VA | SSR-S10VA-H | SSR-S25VA-H | SSR-S40VA-H |
Specifications/Dimensions | ||||||
L x W x H | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm |
Ref. L1 x W1 | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm |
Ref. L2 x W2 | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm |
Ref. Diameter (Ø) | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
Electrical Specifications | ||||||
Max. Load Current | 10 A | 25 A | 40 A | 10 A | 25 A | 40 A |
Control Method | Phase Control | Phase Control | Phase Control | Phase Control | Phase Control | Phase Control |
Input Operating Voltage | 250K Ohm@ 110 V, 500K Ohm@ 220 V | 500K Ohm@ 220 V, 1000K Ohm@ 380 V | ||||
Input Current | N/A | N/A | N/A | N/A | N/A | N/A |
Must Turn Off Voltage | N/A | N/A | N/A | N/A | N/A | N/A |
Output Load Voltage Range | 24~280 VAC | 24~280 VAC | 24~280 VAC | 90~480 VAC | 90~480 VAC | 90~480 VAC |
Max. One Circle Peak Surge | 120 A | 250 A | 400 A | 120 A | 250 A | 400 A |
Min. Blocking Voltage | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
Turn On & Turn Off Time | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle | < 1/2 AC circle |
Isolate Impedance | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC |
Max. On-State Voltage Drop | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC | 1.6 V / 25oC |
Materials | ||||||
Body Materials | PBT | |||||
Color | White | |||||
Accessories & Parts | ||||||
Protective Cover | SSR-S-CV (Optional) | |||||
Heat Sink | HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200) | |||||
Approval & Certificate | CE | CE | CE | CE | CE | CE |
