SSR-T25AA-H Three Phase Solid State Relay
- KEELUNG
- T/T Money Gram Credit Card PayPal
You May Like
-
SSR-S10AA 10A 24V Single Phase Solid State Relay Module SSR
-
SSR-S10AA Single Phase Zero Cross Solid State Relay Module 10A
-
SSR-S10AA UL and CUL Approval Single Solid State Relay Module
-
SSR-S10AA 10A 24V Solid State Dpdt Relay Symbol CE Compliant
-
SSR-S10AA-H 220V Industrial Solid State Relay UL and CUL Approval
-
UL 10A 40A 24V Phase Control DC AC Fotek Solid State Relay Power SSR
Product Details
| Place of Origin | Taiwan, China | Brand Name | SHINING | |
| Model Number | SSR-T25AA-H | Theory | Solid State Relay | |
| Usage | General Purpose | Size | Subminiature | |
| Protect Feature | Sealed | Contact Load | High Power |
30pcs/N.W. :13.3kgs /carton
Product Description
| SSR-T25AA-H Three Phase Solid State Relay |
| Gerneral Product Information | |
| Item number: | SSR-T25AA-H |
| Load Current: | 25A |
| Input Voltage: | 80~240 VAC |
| Output Voltage: | 90~480 VAC |
| Dimension: | 103*79*27 mm (L*W*H) |
| Type: | AC to AC, Three Phase |
| Dimensions [mm] | ||||||
| Item No. | Load Current | Input Voltage(VAC) | Output Voltage(VAC) | Length(L) | Width (W) | Height (H) |
| SSR-T25AA | 25A | 80~240 | 24~280 | 103 mm | 79.0 mm | 27.0 mm |
| SSR-T40AA | 40A | |||||
| SSR-T25AA-H | 25A | 90~480 | ||||
| SSR-T40AA-H | 40A | |||||

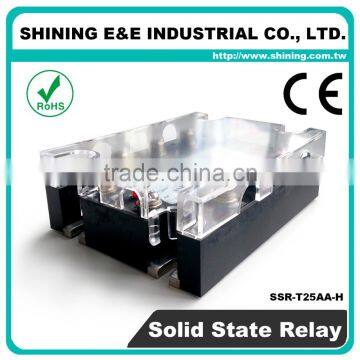

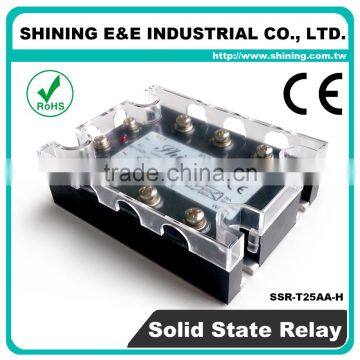

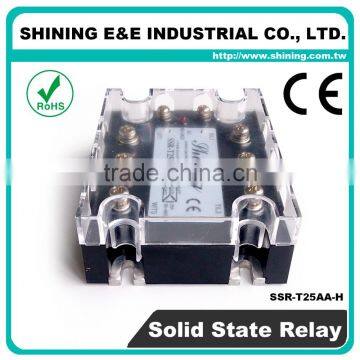

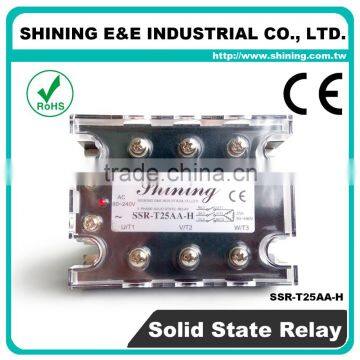

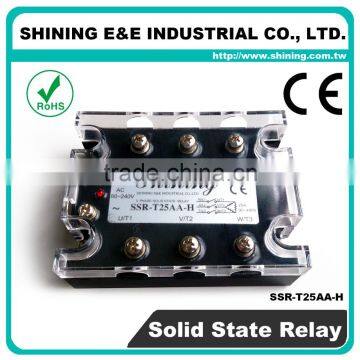

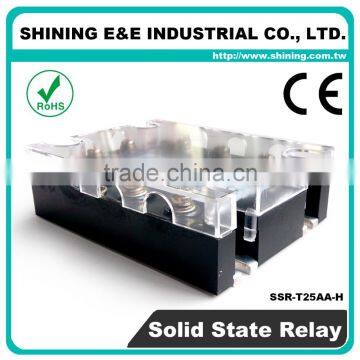

| Product Photos |
| Product Features |
• Item Number: SSR-T25AA-H • Load Current: 25A • Input Voltage: 80~240 VAC • Output Voltage: 90~480 VAC • 600V Transient Capability • Low EMI/EFI & Surge by zero cross trigger control • High Isolation over than 50MΩ/500VDC • Panel Mounting • LED Input status Indicator • Integrated with removable tinger-proof cover SSR-T-CV • Fast reaction, high reliability and long life • No switching speaks, no noise, and no contact points. • Excellent for switching control of switchboard panel, heaters, printers, machines, UPS • CE Compliant • Type: AC to AC, Three Phase • Certificate: CE
SSR-TxxAA Series Solid State Relay are Panel Mounted Mounted Three Phase Solid State Relay, the basic color is black. The Load Current is 25A or 40A. The Input Voltage is 80~240VAC, and Output Voltage is 24~280VAC / 90~480VAC. About this Solid State Relay, it can be install on Heat Sink with Electrical Fans. Protective Cover (SSR-T-CV) is an optional parts for this SSR. The SSR are RoHS approved. |
| Specification Sheet | ||||
| SSR-TXXAA(-H) Product Picture | | |||
| Item No. | SSR-T25AA | SSR-T40AA | SSR-T25AA-H | SSR-T40AA-H |
| Specifications | ||||
Total Length (L) [mm] | 103 | |||
| Ref 1. L1 x W1 [mm] | 24.1 x 27.6 mm | |||
| Ref 2. L2 x W2 [mm] | 88.9 x 47.5 mm | |||
| Ref. Diameter (Ø) | 5.2 mm | |||
| Electrical Specification | ||||
| Max. Load Current | 25A | 40A | 25A | 40A |
| Control Method | Zero Cross | |||
| Input Operating Voltage | 80~240 VAC | |||
| Input Current | 60mA@ 32 VDC | 60mA@ 220 VAC | ||
| Must Turn Off Voltage | 0~70 VAC | |||
| Output Load Voltage Range | 24~280 VAC | 24~280 VAC | 90~480 VAC | 90~480 VAC |
| Max. One Circle Peak Surge | 250 A | 400 A | 250 A | 400 A |
| Min. Blocking Voltage | 600 V | |||
| Turn On & Turn Off Time | <1/2 AC circle | |||
| Isolate Impedance | 50 Mega Ohm / 500 VDC | |||
| Max. On-State Voltage Drop | 1.6 V / 25oC | |||
Materials | ||||
| Body Materials | PBT | |||
| Color | White | |||
Accessories & Parts | ||||
| Protective Cover | SSR-T-CV (Optional) | |||
| Heat Sink Heat Sink | HS-80XXX series (HS-80050, HS-80100, HS-80150, HS-80200) | |||
| Fan | FAC-80, FDC-80, FDC-50 fans | |||
| Approval & Certificate | CE | |||
| Packaging |
| 30pcs/1 cartom. N.W. :13.3kgs |
| Shipping information |
| 1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us.
|
| FAQ |
Q: What are the proper Torque Values for Terminal Blocks? A: The torque depends on the type and size of screw/hardware used in the terminal block. Torque values can be found on our spec sheet.
Q: What are the proper using conditions and temperature for the Terminal Blocks? A: For terminal blocks made from plastic, conditions with strong acid, alkali or greasy, or the rate of humidity is more than 60% should be avoided. Temperature should be within -40°C~110°C, and do not use them in frozen or dew formed condition.
Q: How can I get your quotation? A: Please provide us informations as below: 1. Item Number. 2. Quantity. 3. Company Profile (Name, Tel, Fax, Address, and Webpage) 4. Any Other Relevant Details.
Q: How long is the lead time after placing the order? A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.
Q: How long does the delivery time take? A: We send our goods from Taiwan, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference. Express Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on Logistic Schedule after remitting the Payment.
Q: Which type of terminal block should I choose? A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected. In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)? Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)? |
