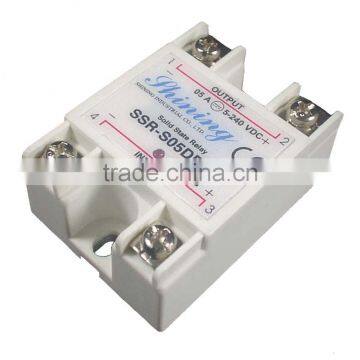

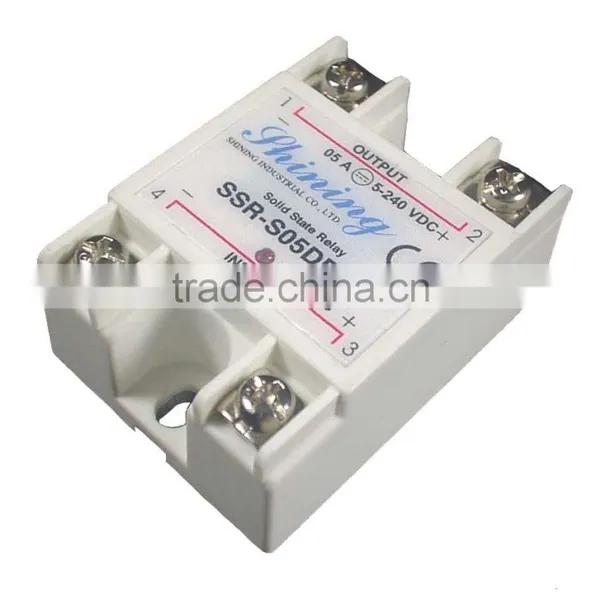

SSR-S05DD-H 5A 4~32VDC DC Solid Electric Single Phase SSR Relay 5V
- 5000 Piece / Pieces per Month
- Keelung
- Credit Card
You May Like
-
SSR-S05DD-H 5A 4~32VDC Electric Single Phase SSR DC Solid Relay 5V
-
SSR-S40VA SSR 110V Phase Control 40A Current Power Switching Relays
-
SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay
-
SSR-S25VA CE SSR Phase Controlled 110V Switch Control Switch Relay
-
SSR-S40VA-H 220V Adjustable 40A Power Switching Phase Control Relay
-
SSR-S40AA-H AC to AC Large 24V AC SSR Kinds Of 40A 220V Power Relays
Product Details
Place of Origin | Taiwan, China | Brand Name | shining | |
Model Number | SSR-S05DD-H | Theory | Solid State Relay | |
Usage | General Purpose | Size | Subminiature | |
Protect Feature | Epoxy | Contact Load | High Power |
100pcs/N.W. :11.6kgs /carton
Product Description
Specifications
SSR-S05DD-H 5A 4~32VDC DC Solid Electric Single Phase SSR Relay 5V1.Input voltage: 4~32 VDC
2.Output Load Current rating: 5A
SSR-S05DD-H 5A 4~32VDC DC Solid Electric Single Phase SSR Relay 5V
• Item number: SSR-S05DD-H
• Output Load Current: 5A
• Output Load Voltage Range: 5~120VDC
• Operate InputCurrent: 4~32VDC
• 600V Transient Capability
• Low EMI/EFI & Surge by photocouple trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-S-CV
• Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• Packing: 100pcs/ctn, N.W. :11.6kgs /carton
• Webpage: Single Phase Solid State Relay
|
|
|
|
| ||
(Series Name or) | SSR-S05DD-H | SSR-S10DD-H | SSR-S25DD-H | |||
Specifications/Dimensions | ||||||
L x W x H | 57 x 42 x 24 mm | 57 x 42 x 24 mm | 57 x 42 x 24 mm | |||
Ref. L1 x W1 | 43.8 x 27 mm | 43.8 x 27 mm | 43.8 x 27 mm | |||
Ref. L2 x W2 | 46.3 x 12 mm | 46.3 x 12 mm | 46.3 x 12 mm | |||
Ref. Diameter (Ø) | 5 mm | 5 mm | 5 mm | |||
Electrical Specifications | ||||||
Max. Load Current | 5 A | 10 A | 25 A | |||
Control Method | Photocouple | Photocouple | Photocouple | |||
Input Operating Voltage | 4~32 VDC | 4~32 VDC | 4~32 VDC | |||
Input Current | 20mA@ 32 VDC | 20mA@ 32 VDC | 20mA@ 32 VDC | |||
Must Turn Off Voltage | 0~2.0 VDC | 0~2.0 VDC | 0~2.0 VDC | |||
Output Load Voltage Range | 5~120 VDC | 5~120 VDC | 5~120 VDC | |||
Max. One Circle Peak Surge | N/A | N/A | N/A | |||
Min. Blocking Voltage | 400 V | 400 V | 400 V | |||
Turn On & Turn Off Time | N/A | N/A | N/A | |||
Isolate Impedance | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | 50M Ohm / 500 VDC | |||
Max. On-State Voltage Drop | 2 V / IC=8A | 2 V / IC=8A | 2 V / IC=8A | |||
Materials | ||||||
Body Materials | PBT | |||||
Color | White | |||||
Accessories & Parts | ||||||
Protective Cover | SSR-S-CV (Optional) | |||||
Heat Sink | HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200) | |||||
Approval & Certificate | CE | CE | CE |
