Home > Electrical & Electronics > Relay & Contactor > Relay > SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay

SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay

Name: SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay
Brand: SHINING
SKU: 141872084
Availability: InStock

SHINING E&E INDUSTRIAL CO., LTD. Gold Verified Supplier

5Yrs

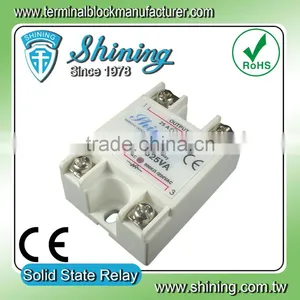

SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay thumbnail-1

SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

SHINING

Model Number:

SSR-S10VA

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name SHINING

Model Number SSR-S10VA

Theory Solid State Relay

Usage General Purpose

Size Miniature

Protect Feature Other

Contact Load Low Power

Specifications

SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay
1.Item number:SSR-S25VA
2.Output Load Current: 25A

SSR-S25VA CE SSR 110V Switch Control Phase Controlled Switch Relay

Product Description

1. Item number: SSR-S25VA

2. Output Load Current: 25A

3. Output Load Voltage Range: 24~280VAC

4. Operate Input Current: 250 K Ohm@ 110 V, 500 K Ohm@ 220 V

5. 600V Transient Capability

6. Low EMI/EFI & Surge by Phase Controltrigger control

7. High Isolation over than 50MΩ/500VDC

8. Panel Mount

9. LED Input status Indicator

10. Integrated with removable tinger-proof cover SSR-S-CV

11. Fast reaction, high reliability and long life

12. No switching speaks, no noise, and no contact points.

13. Excellent for switching control of switchboard panel, heaters, printers, machines, UPS

Packaging & Shipping

14. Packing: 100pcs/ctn, N.W. :11.6kgs /carton

15. Webpage: Single Phase Solid State Relay


(Series Name or) Product Item No.	SSR-S10VA	SSR-S25VA	SSR-S40VA	SSR-S10VA-H	SSR-S25VA-H	SSR-S40VA-H
Specifications/Dimensions
L x W x H	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm	57 x 42 x 24 mm
Ref. L1 x W1	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm	43.8 x 27 mm
Ref. L2 x W2	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm	46.3 x 12 mm
Ref. Diameter (Ø)	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Electrical Specifications
Max. Load Current	10 A	25 A	40 A	10 A	25 A	40 A
Control Method	Phase Control	Phase Control	Phase Control	Phase Control	Phase Control	Phase Control
Input Operating Voltage	250K Ohm@ 110 V, 500K Ohm@ 220 V			500K Ohm@ 220 V, 1000K Ohm@ 380 V
Input Current	N/A	N/A	N/A	N/A	N/A	N/A
Must Turn Off Voltage	N/A	N/A	N/A	N/A	N/A	N/A
Output Load Voltage Range	24~280 VAC	24~280 VAC	24~280 VAC	90~480 VAC	90~480 VAC	90~480 VAC
Max. One Circle Peak Surge	120 A	250 A	400 A	120 A	250 A	400 A
Min. Blocking Voltage	600 V	600 V	600 V	600 V	600 V	600 V
Turn On & Turn Off Time	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle	< 1/2 AC circle
Isolate Impedance	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC	50M Ohm / 500 VDC
Max. On-State Voltage Drop	1.6 V / 25^oC	1.6 V / 25^oC	1.6 V / 25^oC	1.6 V / 25^oC	1.6 V / 25^oC	1.6 V / 25^oC
Materials
Body Materials	PBT
Color	White
Accessories & Parts
Protective Cover	SSR-S-CV (Optional)
Heat Sink	HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate	CE	CE	CE	CE	CE	CE
