TA-Series Any Pole Assembly 10~400A Din Rail Mounted Terminal Block
- 10000 Carton / Cartons per Month
- Keelung Port
- T/T Credit Card PayPal
- TC-Series 15A 20A 50A 65A Thermocouple Porcelain Ceramic Terminal Block
- TD-Series Taiwan Din Mount Deck Double Level Layer Terminal Block
- TE-Series Insulated Plastic Assembly 35mm Rail Mount Terminal Block
- TGP-XXX-A Series 2~12 Pole Electrical Power Distribution Terminal Block
- TR-Series Quick Release Assembly Din Rail Mounted Terminal Block
- TS-Series Bnc Cassette Type 15A 25A 35A 25mm Rail Terminal Block
Product Details
Place of Origin: | Taiwan | Brand Name: | SHINING | Model Number: | TA-010/ TA-020/ TA-030/ TA-040/ TA-060/ TA-100/ TA-150/ TA-200/ TA-300 |
Number of Contacts: | 1 - 10 | Conductor Size: | Other, AWG16~550 | Type: | Screw |
Packaging Details
20.0kgs / 1ctn
Product Description
TA-Series Any Pole Assembly 10~400A Din Rail Mounted Terminal Block |
Gerneral Product Information | |
Item number: | TA-010 / TA-020 / TA-030 / TA-040 / TA-060 / TA-100 / TA-150 / TA-200 / TA-300 / TA-400 |
Rating: | 600V, 10A / 20A / 30A / 40A / 60A / 100A / 150A / 200A / 300A / 400A |
Size: | See Table |
Wire Size: | See Table |
Screw Size: | M3~M10. See Table |

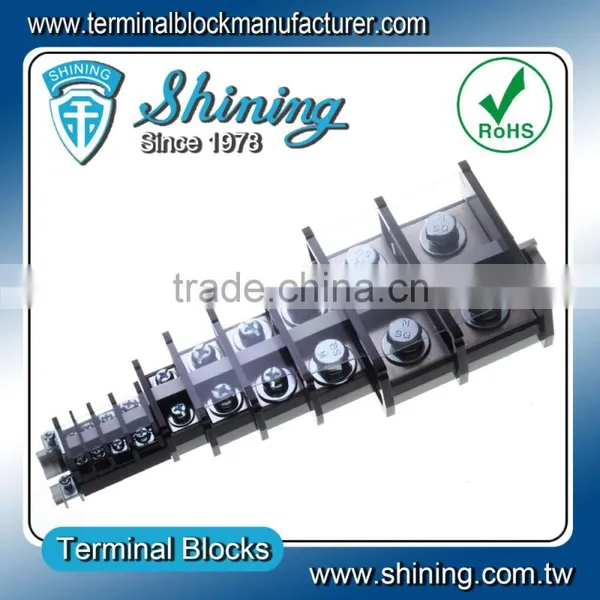

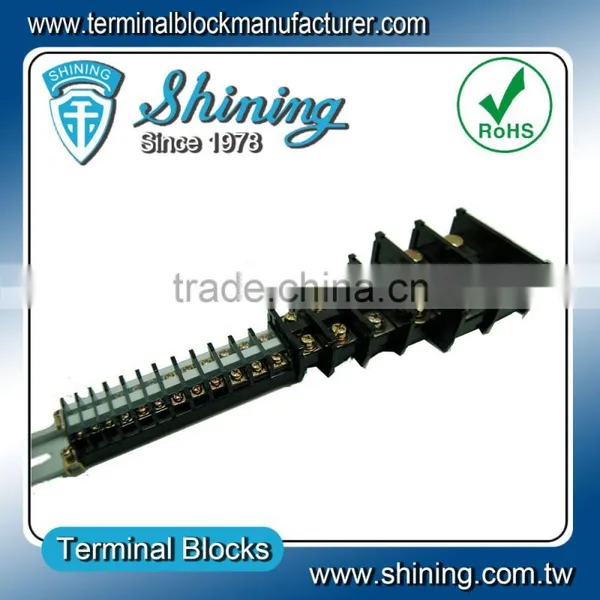

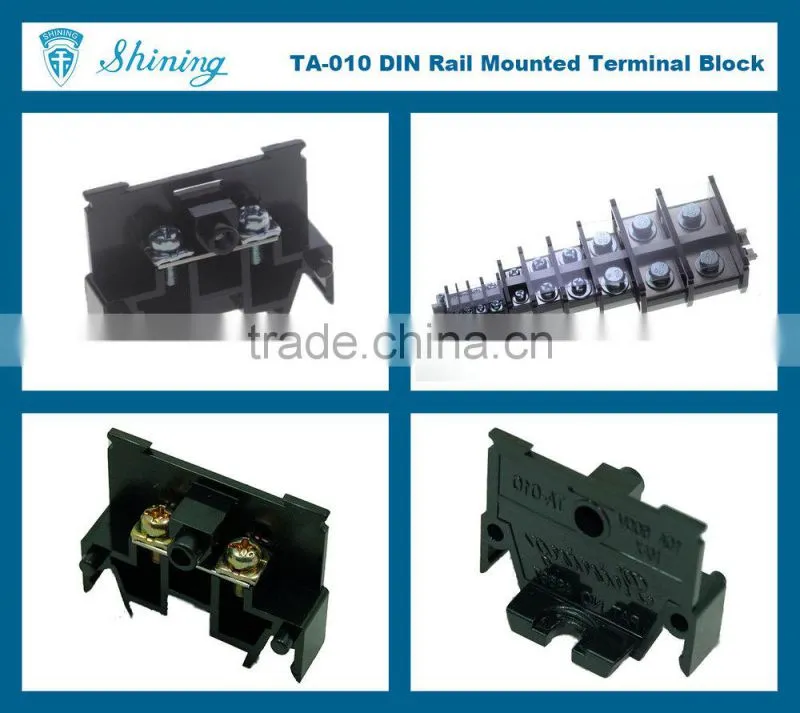

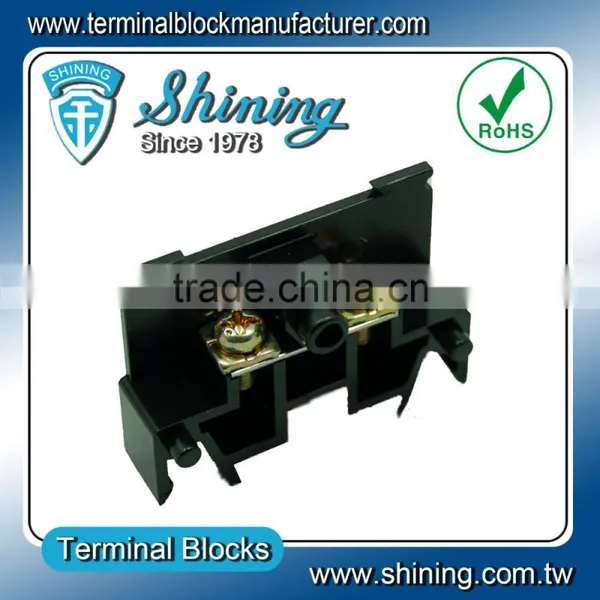

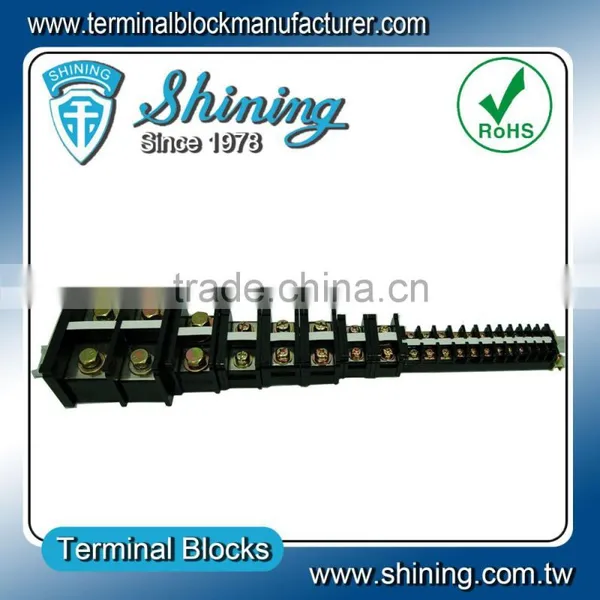

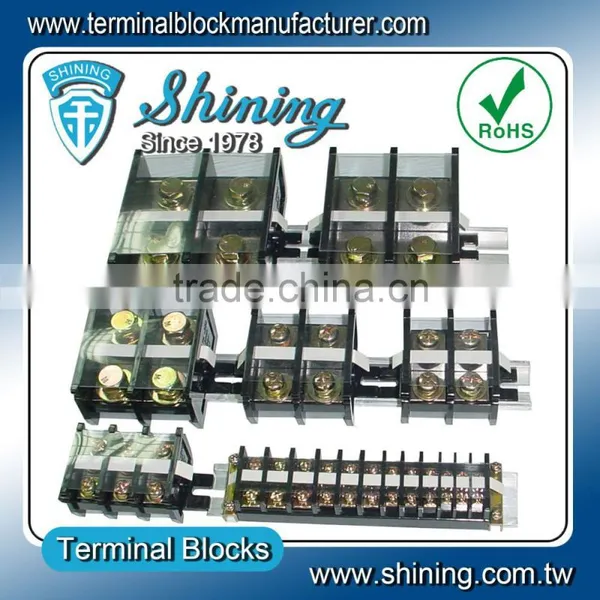

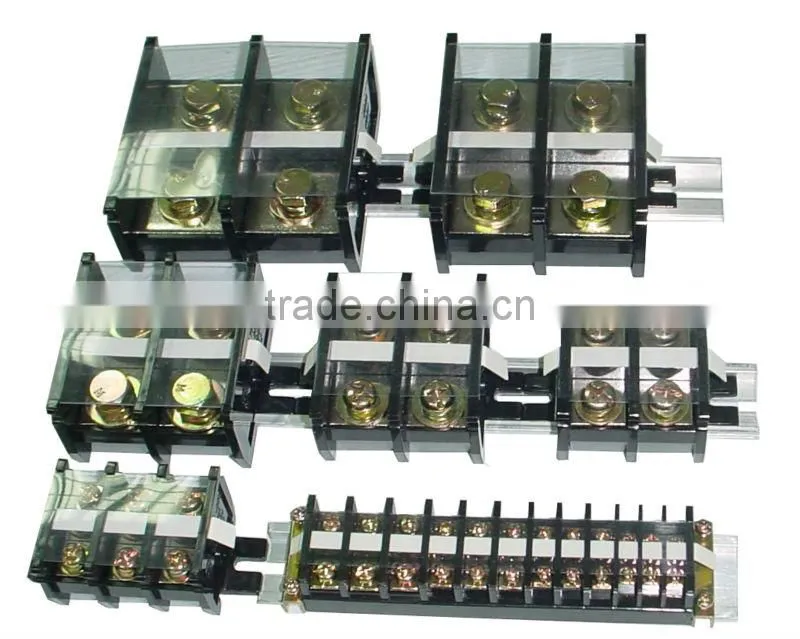

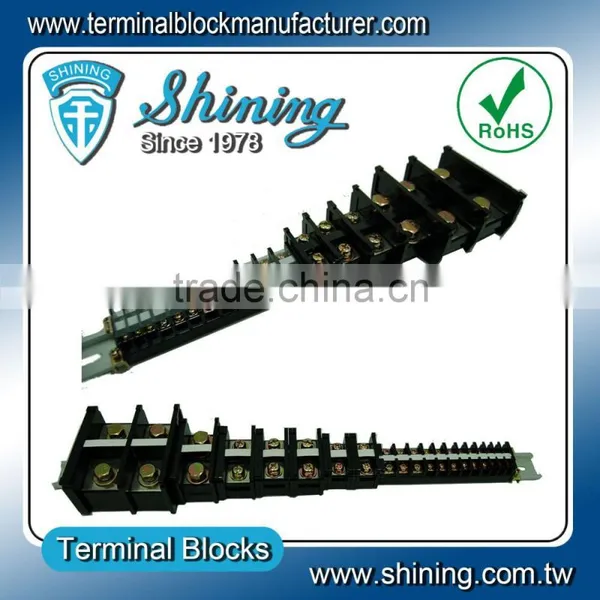

Product Photos |
Product Features |
Item Number: TA-010 / TA-020 / TA-030 / TA-040 / TA-060 / TA-100 / TA-150 / TA-200 / TA-300 / TA-400 Rated Voltage: 600V Rated Current: 10A / 20A / 30A / 40A / 60A / 100A / 150A / 200A / 300A / 400A Install Type: By 35mm Din Rail / Panel Mounted Pole: Any Pole Assembly is available Certificate: RoHS Assembly with Din Rail TA-001A / TA-001S
TA Series Terminal Block are Din Rail Mounted Terminal Blocks, the basic color is black. The product color can be changed according to the customer requirements. They can also be installed without rail. There are reserved install holes on both sides. Load current can be 10A, 20A, 30A, 40A, 60A, 100A, 150A, 200A, 300A, 400A. The products are with a Transparent Cover or Protective Cover, whose materials are PVC, this makes the products are durable. Any number of poles can be assembled into the cartridge. About Paper Marker Strip, We can also provide Typing Service according to the customer requirements. Please see the specification sheet of our TA Series 35mm Din Mounting Rail Terminal Blocks Below: |
Specification Sheet | ||||
TA Series Product Picture | ||||
Item No. | TA-010 | TA-020 | TA-030 | TA-040 |
specifications | ||||
Total Length (L) [mm] | 8.8*n+17.0 | 10.7*n+16.5 | 13.0*n+17.0 | 15.0*n+17.0 |
Ref. Length (L1) [mm] | 8.8*n+12.0 | 10.7*n+11.0 | 13.0*n+11.0 | 15.0*n+11.0 |
Gap (A) [mm] | 7.0 | 8.0 | 10.0 | 12.0 |
Pitch (B) [mm] | 8.8 | 10.7 | 13.0 | 15.0 |
Width (W) [mm] | 38.0 | 38.0 | 38.0 | 38.0 |
Ref. Width (W1) [mm] | 20.5 | 20.5 | 20.5 | 20.5 |
Height (H) [mm] | 28.0 | 28.0 | 28.0 | 28.0 |
Screw (C) (Steel, Zinc Plated) | M3 | M4 | M4 | M5 |
Rated Torque [N-m] | 0.5 | 1.2 | 1.2 | 2.0 |
Rated Torque [in-lb] | 4.4 | 10.6 | 10.6 | 17.7 |
Poles/Positions (P) | Any (n: the Number of Poles) | |||
Electrical Specification | ||||
Rated Voltage [V] | 600V | |||
Rated Current [A] | 10A | 20A | 30A | 40A |
Wire Size [mm2] | 1.6 mm2 | 4.0 mm2 | 6.0 mm2 | 10.0 mm2 |
Wire Size (AWG) | AWG 16 | AWG 12 | AWG 10 | AWG 8 |
Materials | ||||
Insulator Materials | PC | |||
Color | Black (White, Blue, Red, Brown, ...) | |||
Flame Retarded Grade | UL94V-2 (UL94V-0) | |||
Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||
Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||
Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover. | |||
End Plate | TA-010EP | |||
End Clamp | TE-002 / TA-002 / TA-002H / TF-ECL / TF-ECH | |||
DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||
Protective Cover | M-PCV-A010 (=TA-003) | |||
Transparent Cover | M-CV-010 | |||
Paper Marker Strip (Free) | M-MKS-010 (-XXX: Length) | |||
Mounting Rod [mm] (Steel) | M-MRD-010S (-XXX: Length) | |||
Remarks | Ex: TA-010-07P (7 poles assembly of TA-010) |
TA Series Product Picture | ||||||
Item No. | TA-060 | TA-100 | TA-150 | TA-200 | TA-300 | TA-400 |
specifications | ||||||
Total Length (L) [mm] | 20.5*n+34.0 | 26.5*n+35.5 | 30.0*n+34.0 | 35.0*n+35.0 | 42.0*n+34.0 | 50.0*n+35.0 |
Ref. Length (L1) [mm] | 20.5*n+17.0 | 26.5*n+18.5 | 30.0*n+16.0 | 35.0*n+18.0 | 42.0*n+17.0 | 50.0*n+17.0 |
Gap (A) [mm] | 16.5 | 22.5 | 26.0 | 31.0 | 37.0 | 45.0 |
Pitch (B) [mm] | 20.5 | 26.5 | 30.0 | 35.0 | 42.0 | 50.0 |
Width (W) [mm] | 50.0 | 64.0 | 70.0 | 80.0 | 106.0 | 106.0 |
Ref. Width (W1) [mm] | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |
Height (H) [mm] | 38.0 | 41.0 | 42.0 | 47.0 | 50.0 | 50.0 |
Screw (C) (Steel, Zinc Plated) | M6 | M8 | M8 | M10 | M10 | M10 |
Rated Torque [N-m] | 2.5 | 6.0 | 6.0 | 10.0 | 10.0 | 10.0 |
Rated Torque [in-lb] | 22.1 | 53.1 | 53.1 | 88.5 | 88.5 | 88.5 |
Poles/Positions (P) | Any (n: the Number of Poles) | |||||
Electrical Specification | ||||||
Rated Voltage [V] | 600 | |||||
Rated Current [A] | 60 | 100 | 150 | 200 | 300 | 400 |
Wire Size [mm2] | 16.0 mm2 | 35.0 mm2 | 60.0 mm2 | 100.0 mm2 | 175.0 mm2 | 280.0 mm2 |
Wire Size (AWG) | AWG 6 | AWG 2 | 1/0 | 3/0 | 350 | 550 |
Materials | ||||||
Insulator Materials | PC (PA66) | |||||
Color | Black (White, Blue, Red, Brown, ...) | |||||
Flame Retarded Grade | UL94V-2 (UL94V-0) | |||||
Operating Temperature [℃] | -40℃~+110℃ (Max: +220℃) | |||||
Conductor | Brass, Nickel Plated (Copper, Tin Plated) | |||||
Accessories & Parts | Paper Marker Strips & Transparent Cover come with products for free. Others are optional. Protective Cover is optional for the alternative of Transparent Cover. | |||||
End Plate | TA-060EP | TA-100EP | TA-150EP | TA-200EP | TA-300EP | TA-400EP |
End Clamp | TA-002H / TF-ECH | |||||
DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||||
Protective Cover | N/A | |||||
Transparent Cover | M-CV-060 | M-CV-100 | M-CV-150 | M-CV-200 | M-CV-300 | M-CV-300 |
Paper Marker Strip (Free) | M-MKS-060 (-XXX: Length) | |||||
Mounting Rod [mm] (Steel) | M-MRD-060S (-XXX: Length) | |||||
Remarks | Ex: TA-400-04P (4 poles assembly of TA-400) |
Packaging |
20.0 kGS / 1 CTN |
Shipping information |
1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
Our Services |
Shining E&E Industrial Co., Ltd. is a well-experienced manufacturer, offering Electronic Components, Plastic Products, Terminal Blocks and Fuse Holders for more than 30 years. We mainly provide Ceramic Terminal Block, Fuse Clip, Solid State Relay (SSR), Barrier Strip, Power Terminal Block, Insulators, Screw Terminal Block, Electrical Connectors, Busbar Support and Terminal Block Connector, all with superior quality. If you need more information about Electrical Terminal Blocks and Fuse Blocks, please do not hesitate to contact us. |
Shining E&E Industrial A specialized supplier of terminal blocks, fuse holders, barrier strips, and solid state relays (SSR) since 1978. |
Shining E&E Industrial Co., Ltd., founded in 1978, is a specialized manufacturer and supplier of plastic and electronic components products. We have experienced growth steadily year after year. Since 1992, our oversea factory, which is located in GuanDong Province, China, has been built to support our continuously expanding business. Awarded SGS ISO 9001:2000 certification since 2005.
We have endeavored to the design and fabrication of all kinds of plastic products and have profound OEM/ODM experience with domestic and world-famous enterprises, such as TECO, TAIAN, Wal-Mart, Kmart, Target, Springs, and Sears, and so on. At present, we are extending our business to North America, Middle America, South America, Europe, Asia, Australia, and Far East countries.
Our main products include various automatic control components and electronic components, such as terminal blocks, euro terminal strips, double row barrier strips, single row barrier strips, connectors, power blocks, fuse holders, fuse blocks, fuse links, solid state relays, relay sockets, insulators, switches, buttons, heat sinks, and related accessories. Meanwhile, we accept the design and fabrication of steel molds as well. Besides, our other products lines also include curtain draperies, hardware, and finials, bamboo floors, tagging guns, spray guns, plastic brushes, and miscellaneous hardware and plastic products.
We have firmly believed in the idea of consistent quality, service, honesty, and responsibility, which is also our policy to satisfy our customers with the most competitive price, the excellent quality, and the best service. If you are interested in any of our products, please feel free to contact with us immediately. We look forward to building a long-term cooperation relationship and bringing a mutual benefits with you. We are very interested in cooperating with manufacturers in other fields and look forward to benefit for each other. "Working For A Better World" is our slogan. We deeply expect to have this world to be safer and better. |
Certificates |
FAQ |
Q: What are the proper Torque Values for Terminal Blocks? A: The torque depends on the type and size of screw/hardware used in the terminal block. Torque values can be found on our spec sheet.
Q: What are the proper using conditions and temperature for the Terminal Blocks? A: For terminal blocks made from plastic, conditions with strong acid, alkali or greasy, or the rate of humidity is more than 60% should be avoided. Temperature should be within -40°C~110°C, and do not use them in frozen or dew formed condition.
Q: How can I get your quotation? A: Please provide us informations as below: 1. Item Number. 2. Quantity. 3. Company Profile (Name, Tel, Fax, Address, and Webpage) 4. Any Other Relevant Details.
Q: How long is the lead time after placing the order? A: Lead time depends on a number of factors, such as the stock and production status. Usually the sample orders take about 2~3 business days, and the mass orders take about 7~14 business days after the order is placed.
Q: How long does the delivery time take? A: We send our goods from Taiwan, and the delivery time depends on the location of your delivery address, and the shipping way will be Express Service, Sea Shipping, Air Shipping for you reference. Express Service: The ETA will be 3~7 days after remitting the Payment. Sea Shipping and Air Shipping: It will be depended on Logistic Schedule after remitting the Payment.
Q: Which type of terminal block should I choose? A: First, you need to check how much ampere and voltage rating you require and how many wires need to be connected, and how to be connected. In addition, you can choose a way you prefer to install your terminal blocks (by screwing, plugging, welding or you can clip or screw them on a DIN rail)? Or do you have any other special requirement (heat resistant, grounding, different colors or other customized demand)? |
