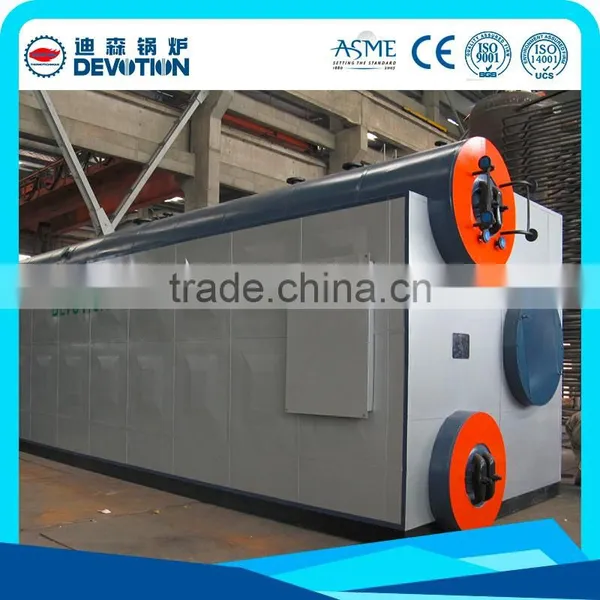

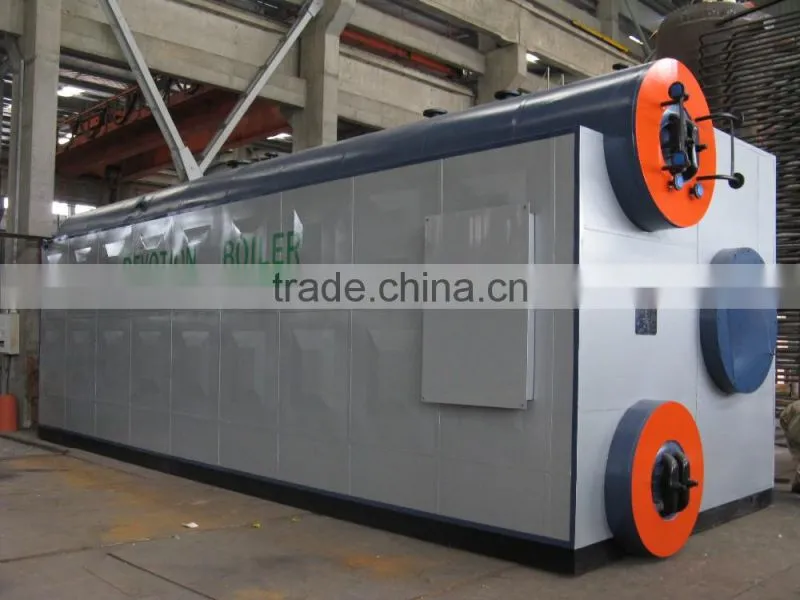

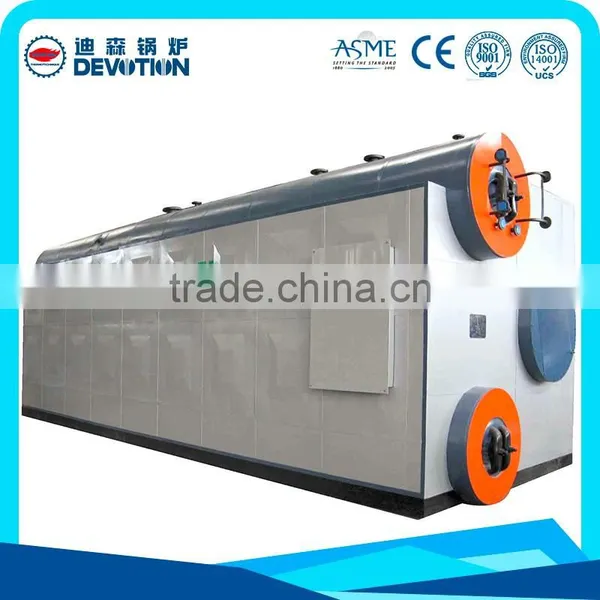

SZS Series High Efficiency Gas Oil Fired Water Tube Steam Boiler

FOB Price

US$ 9,999 - 159,999 / Set

1 Set(Min. Order)

Port Guangzhou China
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Industrial	Structure	Water Tube
Pressure	Low Pressure	Style	Horizontal
Fuel	Other, Gas and oil	Place of Origin	Guangdong, China
Brand Name	Devotion Boiler	Model Number	SZS
Output	Steam	Dimension(LWH)	Depends
Weight	30.7-95.6ton	Certification	ASME, ISO, CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

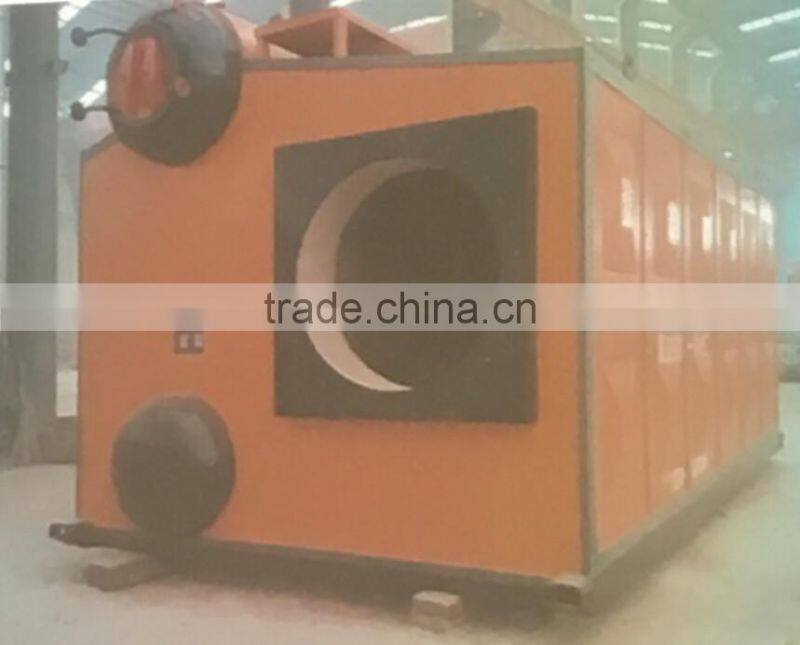

Devotion brand 10t-40t gas/oil fired water tube steam boiler is well designed to quickly generate clean and dry saturated/superheated steam.
It is widely used in different industries such as chemical plant, energy field, food factory, paper-making mill, pharmaceutical factory, textiles plant, etc.

Main Features

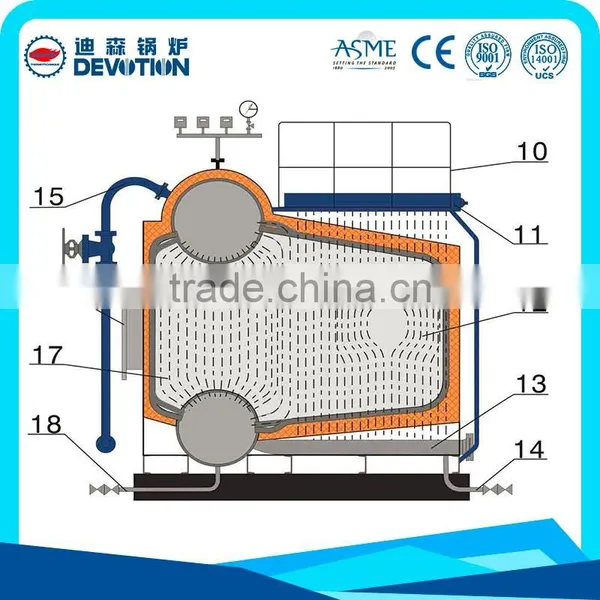

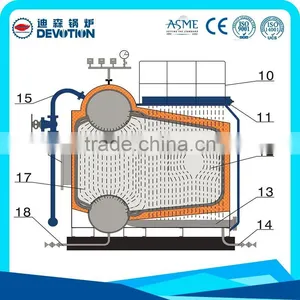

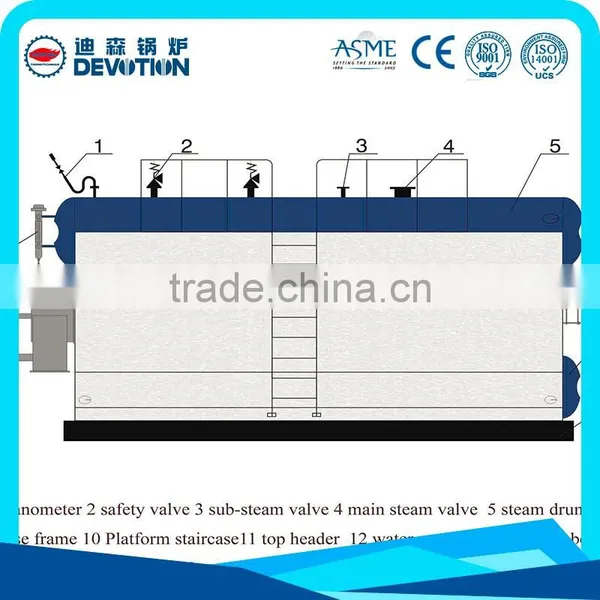

1) Double drums D type, water tube and compact structure, easy to install and less investment.
2) Fully sealing structure, no air leakage, better combustion, less weight.
3) Big furnace hearth, enough heating surface, fuel combusting completely, high heat efficiency .
4) Big steam and water space, strong adaptability to load variability.

MAIN SPECIFICATIONS FOR WATER TUBE STEAM BOILER
	Rated Output	Fan power	Working Pressure	Steam Temp'	Fuel & Consumption				Gross Weight
	Rated Output	Fan power	Working Pressure	Steam Temp'	Light oil	Heavy oil	Natural gas	LPG	Gross Weight
	t/h	kw	MPa	℃	Kg/h	Kg/h	Nm³/h	Nm³/h	Ton
SZS10	10	21.3	1.0 1.25 1.6 2.5	184 193 204 254	599	621	728	237	30.7
SZS15	15	36.8			900	932	1096	357	41.2
SZS20	20	54.7			1194	1236	1451	468	44.1
SZS25	25	74.6			1498	1561	1819	595	58.7
SZS30	30	89.7			1802	1866	2188	716	62.1
SZS35	35	89.8			2094	2168	2543	833	64.8
SZS40	40	109.8			2393	2478	2906	952	95.6

Main Details

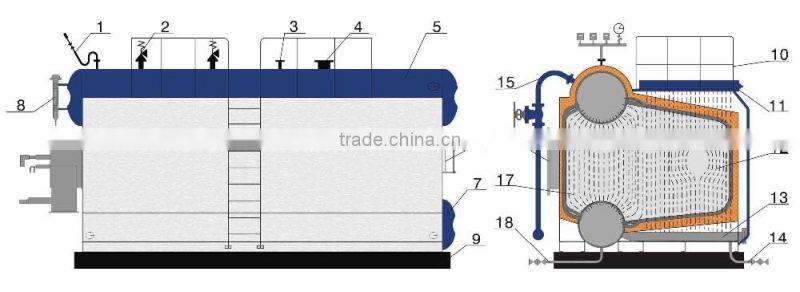

High Efficiency Design

- Stable Double drums D type, no vibration.

- Fully sealing structure, no air leakage

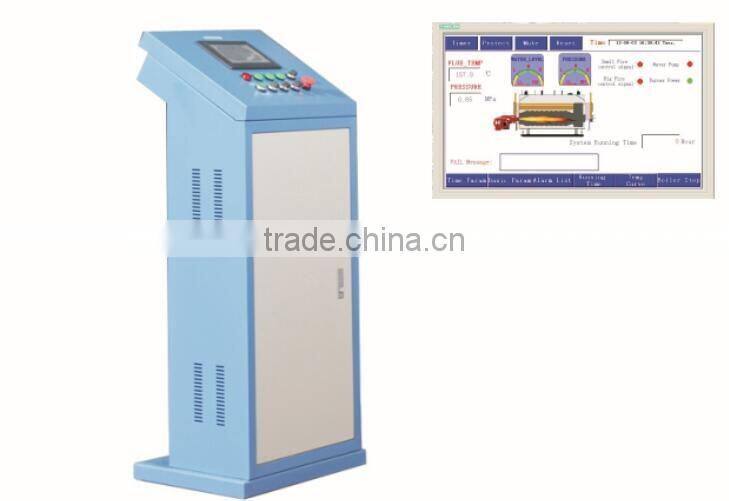

Intelligent Controlling System

- Fully automatic control

- Siemens PLC and touch screen, visible operation status

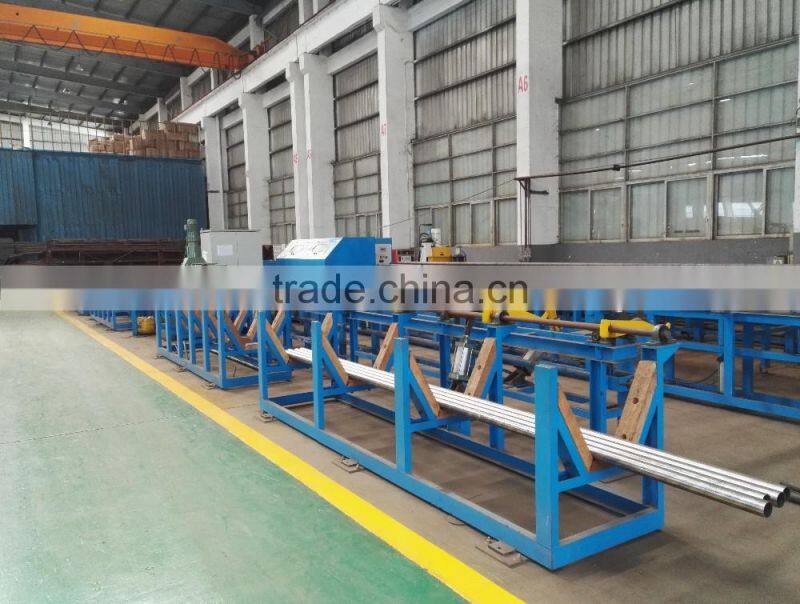

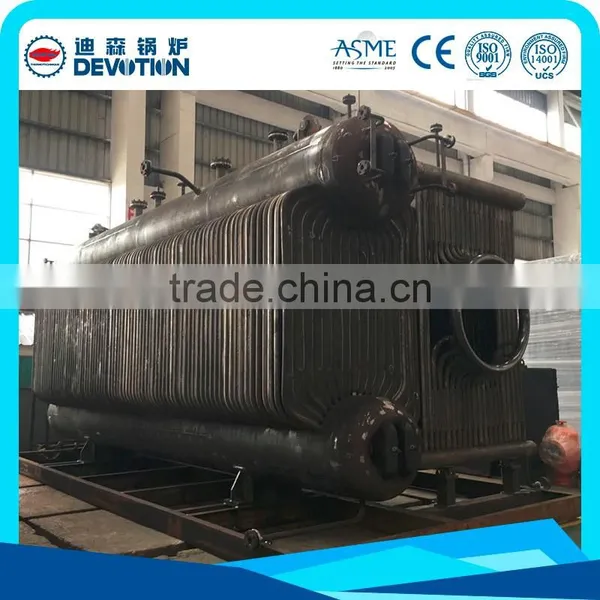

Finely Processed Tubes

High quality tubes with high anti-corrosiveness and intensity, longer working life.

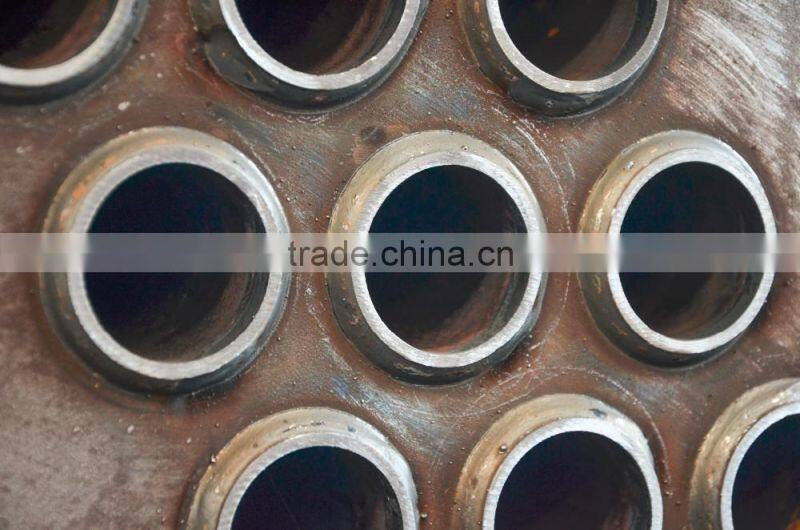

High Quality Welding

smooth surface, no weld crack, no lack of penetration, no pores in welds, no leakage.

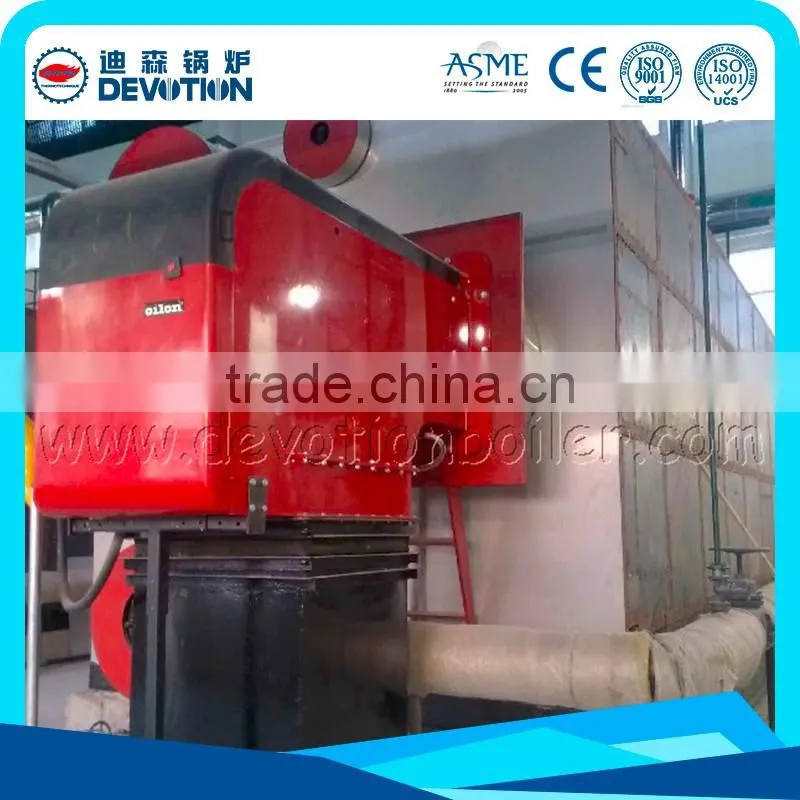

Automatic Burning System

Name: Burner

Brand: Weishaupt, Riello, Baltur, Oilon, Devotion etc.

Original: Europe/China

International famous brand, strong driving force, low fuel consumption, high economic benefits, long working life.

Certifications

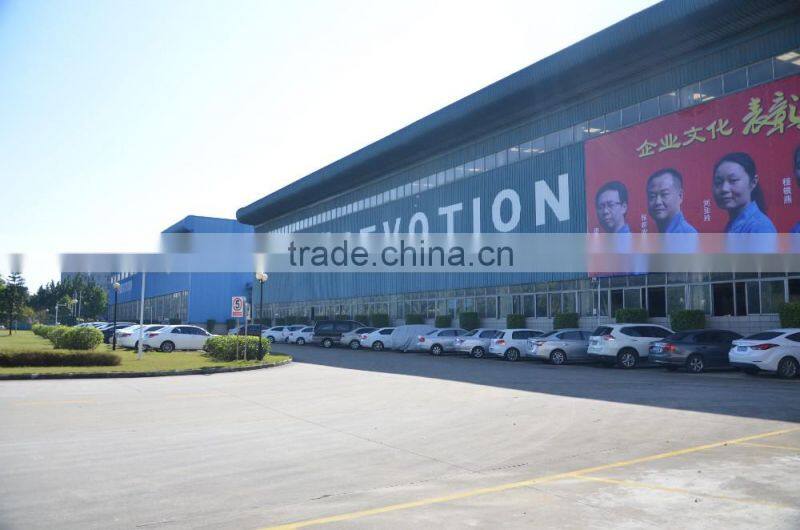

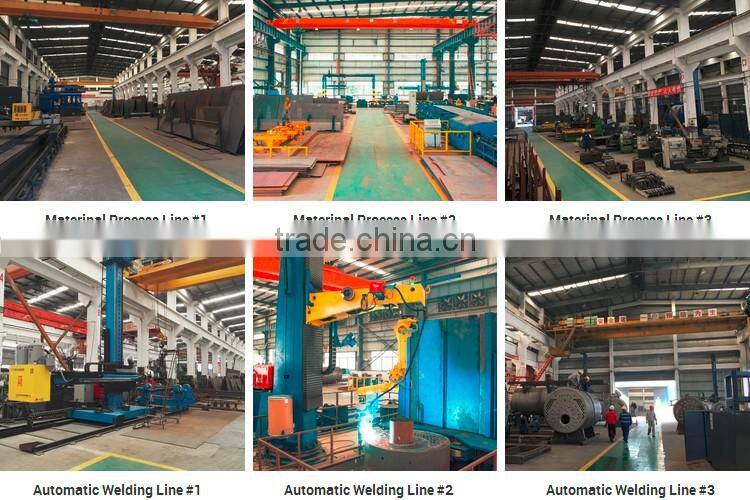

Our Company

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

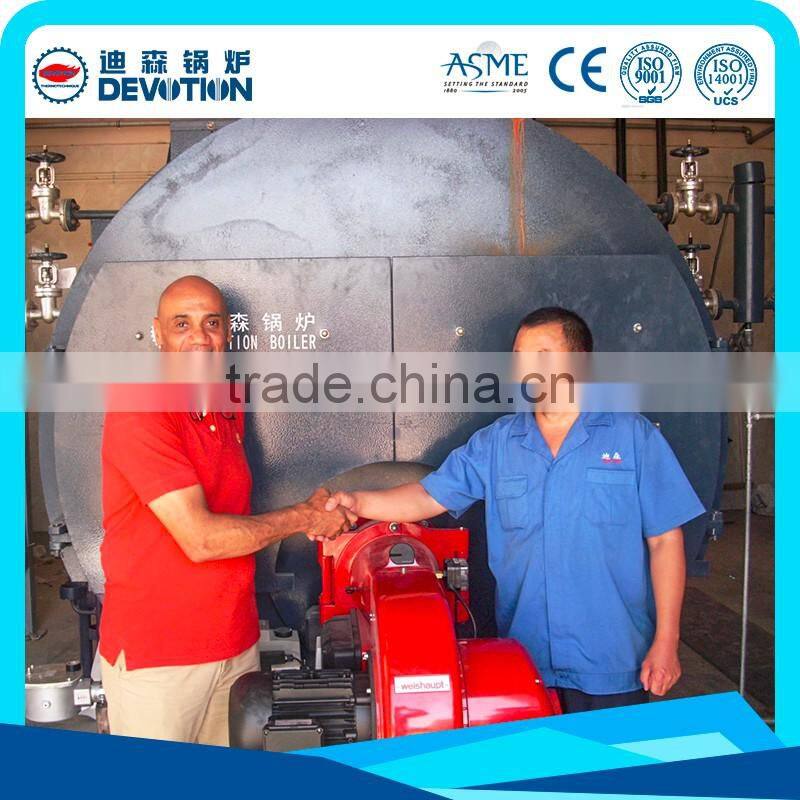

After-Sales Service

* Technical support available, training available.

* Engineers available to service machinery overseas.
