0.3 to 2t High Quality Steam Generated Vertical Boiler

Guangzhou Devotion Thermal Facility Co., Ltd.
0.3 to 2t High Quality Steam Generated Vertical Boiler thumbnail-1
0.3 to 2t High Quality Steam Generated Vertical Boiler thumbnail-2
0.3 to 2t High Quality Steam Generated Vertical Boiler thumbnail-3
0.3 to 2t High Quality Steam Generated Vertical Boiler thumbnail-4

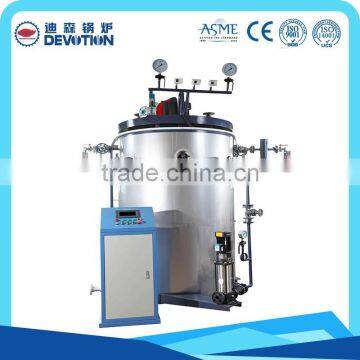

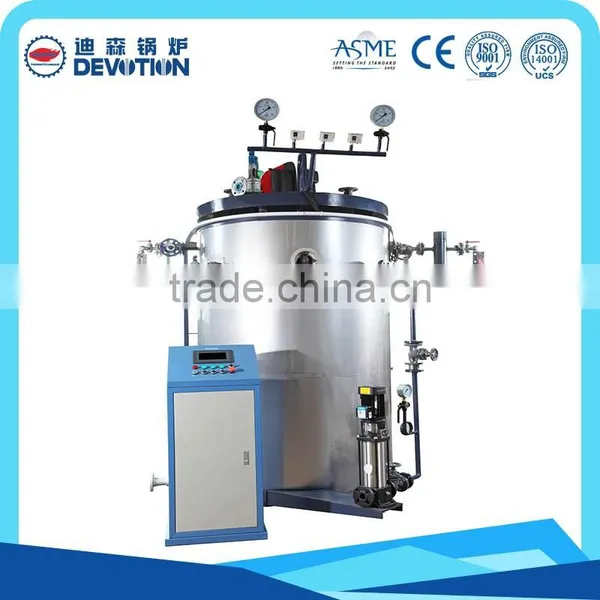

0.3 to 2t High Quality Steam Generated Vertical Boiler photo-1
0.3 to 2t High Quality Steam Generated Vertical Boiler photo-2

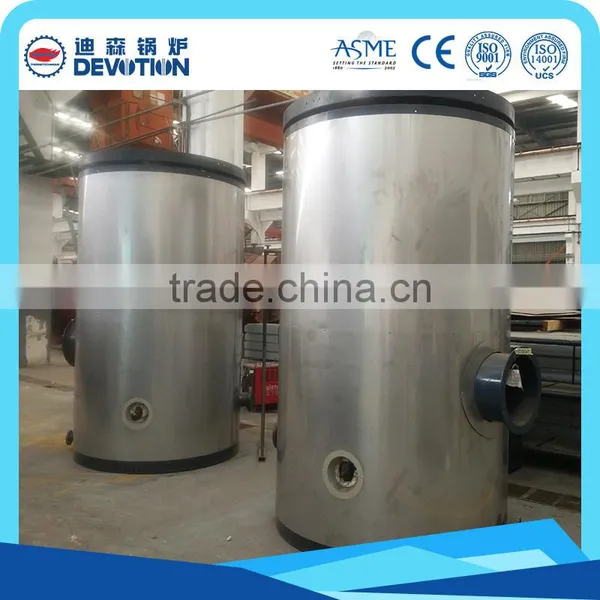

0.3 to 2t High Quality Steam Generated Vertical Boiler photo-3

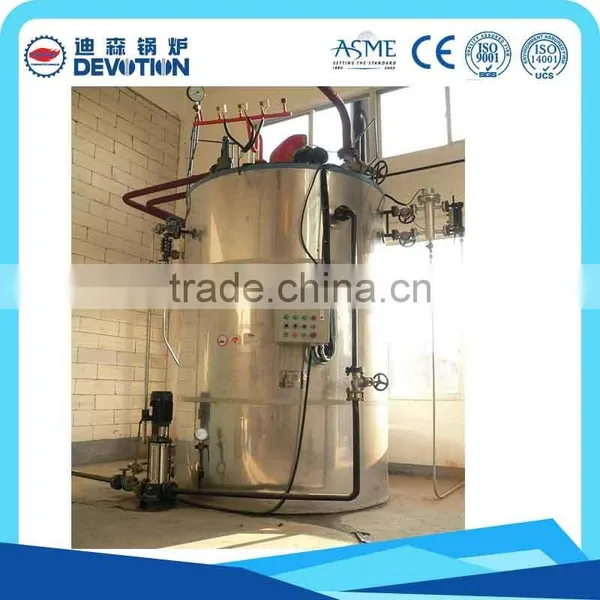

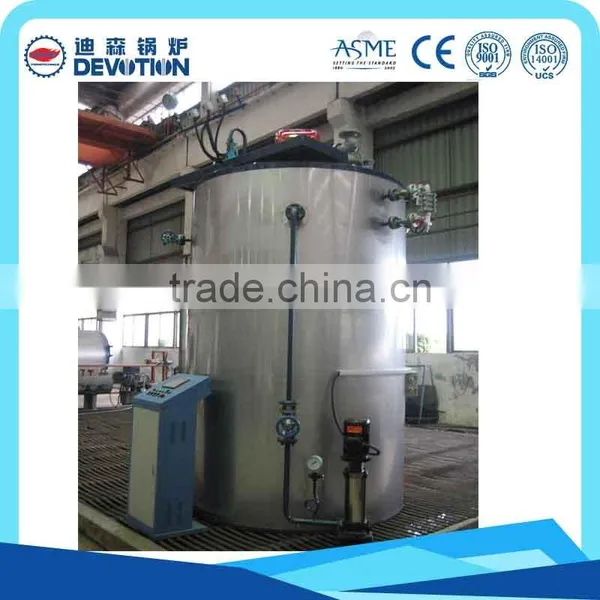

0.3 to 2t High Quality Steam Generated Vertical Boiler photo-4
US$ 9,999 - 159,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Water Tube
Pressure Low Pressure
Style Vertical
Fuel Other, Gas and oil
Place of Origin Guangdong, China
Brand Name Devotion Boiler
Model Number LSS
Output Steam
Dimension(L*W*H) Depends
Weight 0.3-2 ton
Certification ASME, ISO, CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Devotion brand 0.3t-2t gas and oil vertical steam boiler is well designed to quickly generate clean and dry steam.
It is widely used in different industries such as chemical plant, energy field, food factory, hospital, hotel, laundry, package plant, paper-making mill, pharmaceutical factory, slaughter house, tobacco factory, textiles plant, etc.

Main Features

1) 10 years or more long working life time.
2) High efficiency water tube vertical type.
3) Running in a high automatization and intellectualization, easy to operate and maintain.
4) Applying a multi-level protection system to ensure the safety.
MAIN SPECIFICATIONS FOR 0.3 TON - 2 TON GAS AND OIL VERTICAL STEAM BOILER
LSS0.3
LSS0.5
LSS0.75
LSS1.0
LSS1.5
LSS2.0
Steam output(t/h)
0.3
0.5
0.75
1.0
1.5
2
Working pressure(Mpa)
7/10/12.5 bar
Applicable fuel
Diesel oil,heavy oil,natural gas,LPG,city gas




Fuel  comsumption
Light oil
(Kg/h)
20.8
34.6
52.1
68.6
104.3
137.6
Heavy oil
(Kg/h)
21.3
35.4
53.4
70.4
106.8
140.9

Natural gas
(Nm3/h)
25.1
41.7
62.8
82.9
125.7
165.7

LPG
(Nm3/h)
8.9
14.8
22.3
29.3
44.5
58.7
City gas
(Nm3/h)
56.2
93.2
140.6
185.4
281.1
370.7
Efficiency(%)
90.1
90.5
90
91
90
91
Electricity consumption(KW)
1.8
2.5
2.55
2.2
4.8
6.2
Shipping weight (t)
1.23
1.63
1.99
2.2
3.71
3.94
Water volume(m3)
0.2
0.32
0.48
0.58
0.86
1.01
Main Details

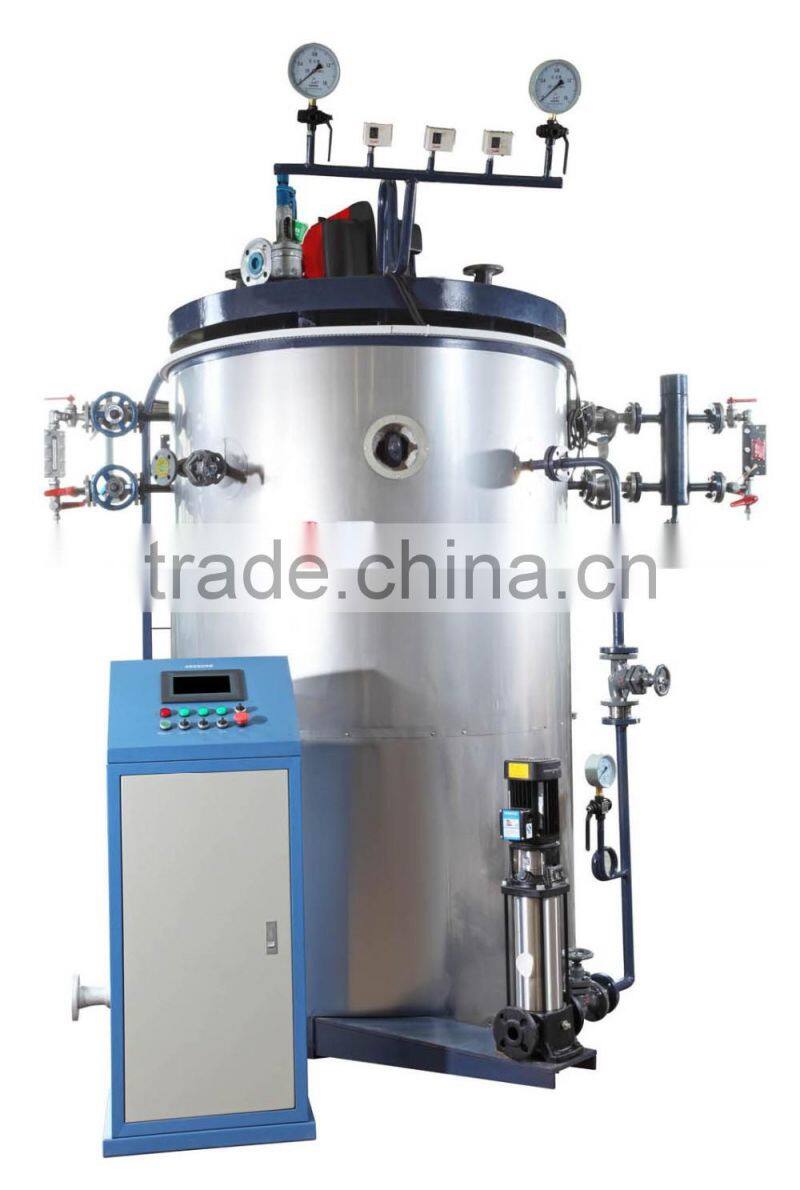

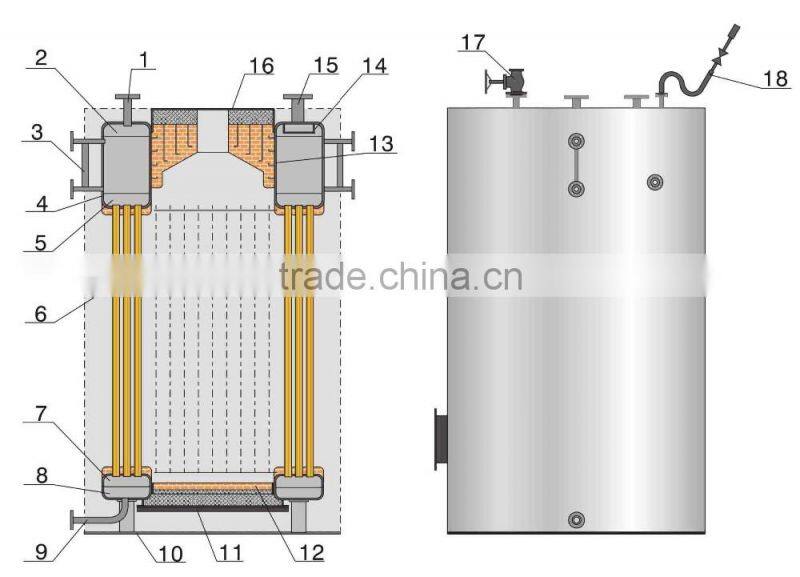

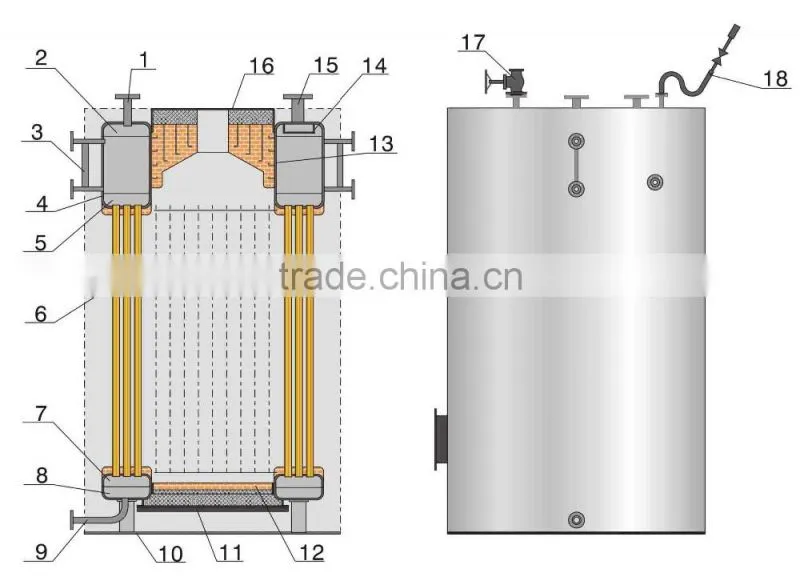

Vertical steam boiler Design

- Compact structure, less space needed

- Parallel flowing, heating trasfer faster

Intelligent Controlling System

- Fully automatic control

- Siemens PLC and touch screen.

- Visible operation status

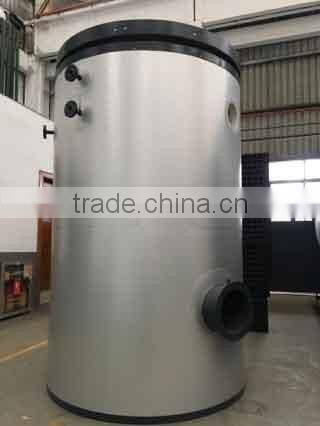

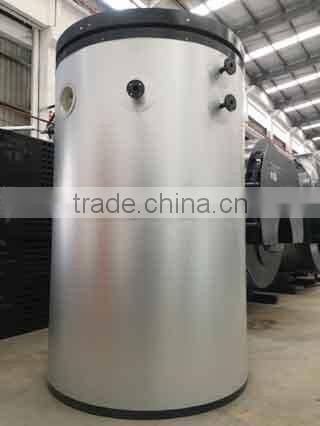

High Quality Boiler Shell
Polished and sand blasted, no rust left, rolled by advanced N.C rolling machine, higher anti-corrosive quality and intensity, longer working life.

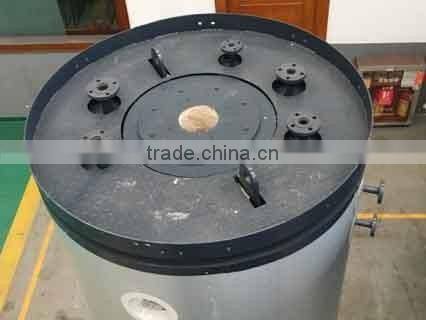

High Precision Boiler Head
Drilled by high precision drilling machine, sand blasted, no rust left, higher anti-corrosive quality and intensity, longer working life with higher safety.

Finely Processed Threaded Fire Tubes
Polished and well threaded before welding, no rust left         on the surface, higher anti-corrosive quality and intensity, longer working life.

High Quality Welding

smooth surface, no weld crack, no lack of penetration, no pores in welds, no leakage.

Automatic Burning System

Name: Burner

Brand: Weishaupt, Riello, Baltur, Oilon, Devotion etc.

Original: Europe/China


International famous brand, strong driving force, low fuel consumption, high economic benefits, long working life.

Certifications
Our Company
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Technical support available, training available.

* Engineers available to service machinery overseas.
