Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Separation Equipment > Multi Bag Housings - Stainless Steel Multi Round Bag Filtration System

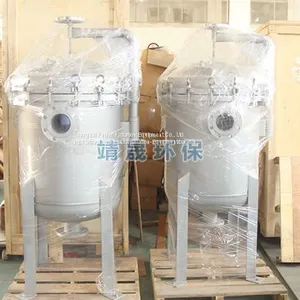

Multi Bag Housings - Stainless Steel Multi Round Bag Filtration System

Shanghai Future Filtration Equipment Co., Ltd

Multi Bag Housings - Stainless Steel Multi Round Bag Filtration System thumbnail-1

Multi Bag Housings - Stainless Steel Multi Round Bag Filtration System photo-1

US$ 1200 - 2000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Type:

Separating Plant

After-sales Service Provided:

No overseas service provided

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Place of Origin China

Type Separating Plant

After-sales Service Provided No overseas service provided

Condition New

The Multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.Positive O-ring sealing offers easy and safe operation.We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
If you buy our multi-bag filters, you can wait for a long time to change the used bags..

If the order quantity can be more than 5 units, we will quote the lowest price for you ! Contact with us now.

Multi Bag Filter Housing Feature

About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.

--The bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.
--Positive O-ring sealing offers easy and safe operation.
--We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 3"to18".
--the Max.flow of single unit are from 90 cubic m./h to 1,080 cubic m./h.
--Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.

Quick Lock Multi bag filter housing (Qic lock opening cover with Spring Assist Hinge)

The QLM vessel defines the sitate of the art for multi-bag vessels.The operator's safely and ease of bag change out were considered paramount in its design. A low profile design means the top of the bag is at about waist height for most operators--thus providing a more ergonomic position for lifting dirty bags out of the vessel. The QLM unlque quick opening spindle closure mechanism provides for a 20 second opening--without tools. The integral vent valve mechanism protects the operator by preventing the opening of the vessel without first venting the pressure. Finally, the spring assisted hinge makes lifting the lid easy and safe. All vessels are constructed of 304/316 stainless steel. The vessel is pressure rated to 150psi.

Multi bag filter housing Model & Specification

ModelMax Flow(m3/h-gpm)Max pressureDesign TempPipe SizeMaterialM402-G8090(400)10bar80°C3-4"304/316/CSM403-G80135(600)10bar80°C3-4"304/316/CSM404-G100180(800)10bar80°C3-6"304/316/CSM405-G100225(1000)10bar80°C3-6"304/316/CSM406-G150270(1200)10bar80°C3-8"304/316/CSM407-G150315(1400)10bar80°C3-8"304/316/CSM408-G200360(1600)10bar80°C4-8"304/316/CSM4010-G250450(2000)10bar80°C6-8"304/316/CSM4012-G250540(2400)10bar80°C6-10"304/316/CSM4014-G250630(2800)10bar80°C8-10"304/316/CSM4016-G250720(3200)10bar80°C8-12"304/316/CSM4018-G250810(3600)10bar80°C10-14"304/316/CSM4020-G300900(4000)10bar80°C10-16"304/316/CSM4022-G350990(4400)10bar250°F12-18"304/316/CSM4024-G3501080(4800)10bar80°C14-18"304/316/CS

Product Tags: bag filter housing , multi bag filter , filter housing
