Specifications
1.Flexible steel structure building.2.Quick construction speed.
3.Energy save.
4.Light weight & high strength.
ISO9001:2000

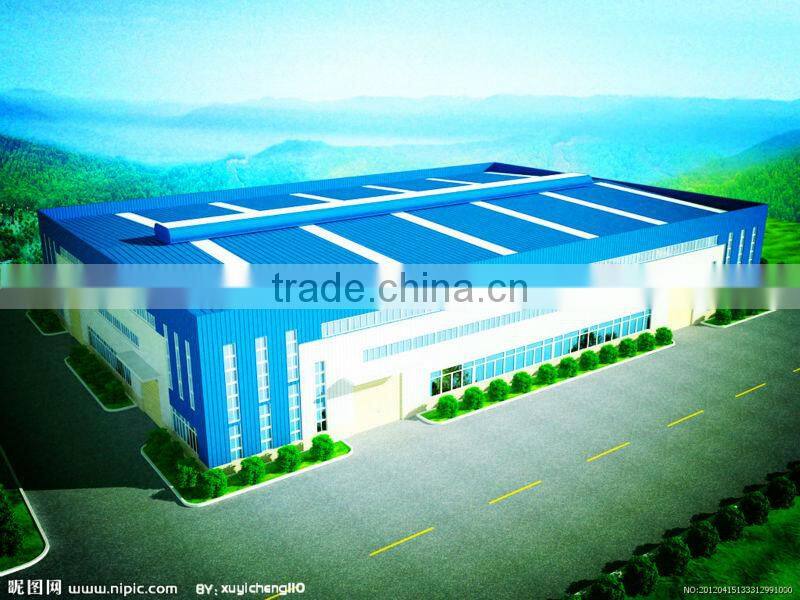

Strong Light Steel Frame Workshop,Steel Structure Building For Plant or Warehouse
Description:
The steel frame workshop is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel frame workshop is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc
Characters:
a) Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
b) Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
c) Fast construction and easy in installation
d) Long term service life: more than 50 years.
e) Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving
opinions |
1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. |
2)We can also make and develop new parts according to customers' drawings and detailed dimensions. | |
Specifications |
1)Size: MOQ is 200m2, width X length X eave height, roof slope |
2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors! | |
3) Base: Cement and steel foundation bolts | |
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section! | |
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc | |
6) C or z purlin: Size from C120~C320, Z100~Z200 | |
7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick,(1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm, | |
8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc | |
9)Surface: Two lays of Anti-rust Painting | |
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ | |
Design Parameters |
If you need we design for you, pls supply us the following parameter together with detail size |
1)Live load on roof(KN/M2) | |
2)Wind speed(KM/H) | |
3)Snow load (KG/M2) | |
|
4)Earthquake load if have 5) Demands for doors and windows | |
6)Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
Advantages:
1) Easy to assemble and disassemble with simple and common tools.
2) Good waterproof performance without extra facilities.
3) Good fireproof performance with rockwool sandwich panel.
4) Good performance of heat-insulation.
5) Could stand firmly over 20 years.
6) Light weight, convenient for shipment and transportation.
7) Beautiful appearance, virious colors and shapes for outer and inner roof panel and wall panel.
8) Various designs available, customized designs acceptable.
9) Wide range of application, could be used as offices, command posts, sentry boxes, dormitories, meeting rooms, warehouses, shops, additional storey of buildings and so on.
