China steel prefab shipping container homes for sale

Specifications

Steel structure prefabricated container house
Low price&good quality
Easy&quick installation
Long life&repeat
ISO9001:2000

Steel structure prefabricated container house



Steel structure prefabricated container house specifications:



Dimension	Length	Exterior/interior: 5.950m/5.710m
	Width	Exterior/interior: 2.310m/2.060m
	Height	Exterior/interior: 2.740m/2.400m
	Weight	1900kg per unit
Standard	Floor	Foundation beam:channel pipe 15a, Material:Q235
Accessory	Roof	Roof girder:box girder 120*80,Material:Q235
	Fronton	Pillar: box girder 100*100, Material:Q235
	Hallway	Composite of framework and 2.5 thickness skid-proof steel board,Material:Q235
	Stair	Inclined girder is roolled channel pipe 160*50,steel board walk is 300 thickness skid-proof steel board,Material:Q235
	Wallboard	50mm thickness double surface color steel sandwich panel, inside white and outside silver gray
	Roofboard	Corrugated steel roof tile
	Ceiling	5mm double surface MDF
	Floor covering	12mm thickness plywood, painting dope on the surface
	Door	Aluminium alloy single door,size:800mm*1900mm,Aluminium alloy double open door,size:1702mm*1920mm
	Window	Aluminium alloy sliding window,size:1700mm*990mm
	connection parts	color steel compressed part
	Lamp	2*30W double tube grilles lamp
	Switch	two pieces siwtch
	Socket	Two pieces of nine-hole socket,one piece of six-hole socket,two pieces of five-hole socket
	Breaker	20A (fixed on the wallboard)
Option	Exhaust fan	40W exhaust fan
	Partition	50mm thickness double surface color steel sandwich panel board,white
	Window	Color steel window,size:1702mm*991mm
	Door	Color steel single and double door,size:1702mm*1920mm
	Stair awning	Composite of square steel framework and transparent PVC board
Resistance	Bearing Load	50kg/m2
	Wind proof	11 grade
	Fire proof	B1 grade(fire-resistant materials)
	The     earthquakeresistand grade	grade:7 degree



Steel structure prefabricated container house features:



1. Easy move
    Prefab container homes it is just like container of its size, shape. The structure is strong enough to lift by crane and move by truck. Also it can be assemble and reassemble for many times because of bolt connection. Light material without overload, easy to pack and transport.  so that we could save so much time ,fees etc.



2. Special types
    Doors, windows, and interior partitions can be flexibly fixed.
We could design and manufacture special type, but it's better you offer us your drawing, so that we could offer you budget accordingly. Beautiful appearance, different colors for the wall and roof.



3. 20' or 40' container
    For material, we could follow your opinion, but the main material is EPS, rock wool sandwich panel or glass fiber sandwich panel for insulation. For size, it is also flexible, smaller or bigger than standard container more or less for your choose.



4. Assembled or welding type
    Assembled and welding type both are good, but assembled type could save more transportation fees.Strength structure, sealing, insulation, water-proof, fire-resistant and good for moisture-proof.



5. Long life span
    (1)The prefab container homes can be assembled and disassembled more than 6 times with a life span of more than 15 years.
    (2)The prefab container homes with air-condition, water heater, bath room, or maybe you could get a TV inside. With a generator to a whole container's electrical, to give you a enjoyable life.
    (3)Breaking the traditional concept, our special design is convenient for the move and without any charge of disassembling; it will decrease the cost of construction so that the sandwich portable house is fit in the project site.



Steel structure prefabricated container house advantages:



Advantages
No.	Item	Content
1	Low Cost	Low labor and material costs
2	Long life	over 10 years
3	East Assembly	Two 20ft containers assembled by 6 workers in1 day
4	Flexible Layout	Layout adjusted according to your requirement
5	Stackable Packing	Four 20ft container stacked together for convenient delivery
6	Beautiful Decoration	Optional colors of panels:ivory white,offwhite,sky-blue,lotus-leaf green,red,etc
7	Environment Protection	Environment-friendly materials
8	Safe&Stable Steel Structure	Earthquake&Wind Proof



Steel structure prefabricated container house materials:



1.Light color steel sandwich panel,PU.EPS and rock wool

2.insulative, different thickness can be chosed

3.any special material optional:plumbing, electricity system, bathroom, Kitchen, home appliance, and furniture wool

4.security aluminum door

5.casement or sliding window



Technical parameter of steel structure  prefabricated container house:



1.Wind resistance: Grade 11 (wind speed≤111.5km/h)

2.Earthquake resistance: grade 7

3.Live load capacity of roofing: 0.5KN/m2

4.External and internal wall heat transmission coefficient: 0.35Kcal /m2hc

5.Second floor load capacity: 150kg/m2

6.Live load of corridor/ balcony/walkway is 2.0KN/m2



Steel structure prefabricated container house qualify certification:

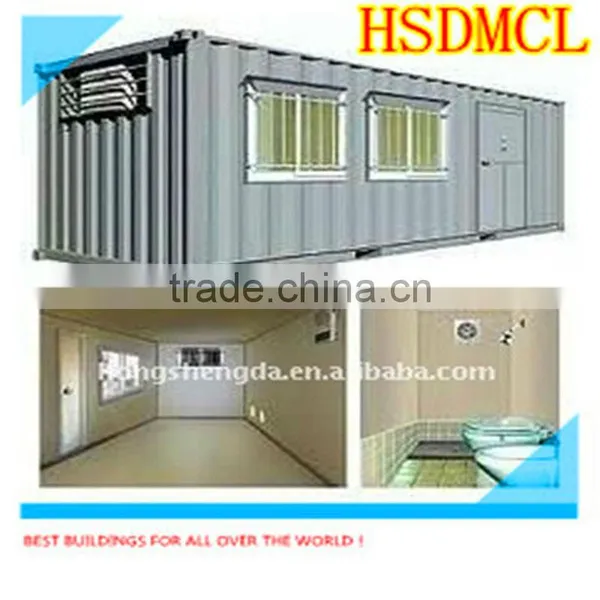

Steel structure prefabricated container house pictures:
