China low cost steel structure prefab house for sale

Specifications

Steel structure prefabricated house
1. Portable and movable house
2. Easy-installed
3. Low priced
4. ISO 9001:2000

Steel structure prefabricated house



Steel structure prefabricated house specifications:



No.	Sort	Name	Specification
1	Specification	length	K=1800mm(n=1,2,3,4,5,6…)
2		Width	5560mm,6240mm,7360mm
3		height	P=950mm(3P=one floor,6P=two floors,9P=three floors)
4	Standard accessory	Wall board	EPS/rock wool/fiber glass wool sandwich panelThe insulation thickness:50mm,75mm,100mm,120mm The color steel sheet thickness:0.4-0.6mm
5		Roof board	EPS/rock wool/fiber glass wool sandwich panel The insulation thickness:50mm,75mm,100mm,120mm The color steel sheet thickness:0.4-0.6mm
6		Door	Sandwich panel door,steel/plastic-steel/aluminum alloy door
7		Window	Aluminum alloy window with roller shutter,plastic-steel window
8		Drainage system	Provided plan, design and construction
9		Electric system	Provided plan, design and construction
10	Technical parameter	Wind resistance	Grade 11
12		Live load capacity of roofing	0.5kn/m2
13		Second floor load capacity	150kg/m2
14	Live load of corridor	2.0kg/m2



 Steel structure prefabricated house techincal parameter:



Technical Data
Item	Name	Specifications
Standard Accessories	Ground Main Beam	H248X124X5X8,material: Q235
	Roof Beam	C180*70*20*3.0, material: Q235
	Wall Column	square tube 70*70*3.0,material: Q235
	Corner column	pressured angle steel sheet, material: Q235
	Floor	wooden floor
	Door	colored steel sandwich panel door, size: 750mm*2000mm
	Window	plastic-steel window, size: 600mm*800mm
Design Parameter	Roof Live Load	0.5KN/sqm
	Wind Load	wind scale: 10, wind pressure: 0.5KN/sqm, designed wind speed: 28m/S
	Heat Transfer Coefficient	wall: 0.30~0.18 w/sqm.k   ceiling: 0.28~0.13 w/sqm.k   floor:0.33~0.15 w/sqm.k
	Earthquake Resistance	7 degree
	Suitable Temperature	suitable temperature range: -50degrees Celsius~+50degrees Celsius



Steel structure prefabricated house characteristics:

1. EPS /rockwool/glasswool sandwich panel are used as the wall and roof panels.
2. Can be moved on any condition, and easily installed
3. Materials are recycable, does not pollute the environment.
4. Nude package saves a lot of space and freight charge.

Steel structure prefabricated house main frame:



1. Main frame structure:  main frame, foundation bolt, high-strength bolt
2. Secondary steel structure: purlin, supporting system, paint
3. Building envelope: roofing sheet, skylight, accessories, etc.
4. Roofing panel, wall panel: EPS sandwich panel, rockwool sandwich panel, glasswool sandwich panel.
5. Windows: Aluminium alloy window or plastic steel windows
6. Doors: sandwich board door or aluminium alloy door.
7. Bathroom: equipped with one toilet bowl, one wash basin, one shower equipment.
8. Kitchen: will be equipped with one kitchen cabinet.
9. Electricity: supply all the electricity system and equipment
10. Color: all RAL colors

Steel structure prefabricated house advantages:



1.Our company produce various specification and models and national standards of galvanized steel coil.

2.Using high-quality material and advanced production technology and equipment for processing.

3.Applicable to a humid climate and the harsh corrosive environment.

4.Products has been all over the country more than 20 provinces, municipalities and autonomous regions, and have been exported to Europe, North American, the Middle East, the South East Asia, Africa,Asia,European and other countries and regions, well received by our buyrer.



Steel structure prefabricated house qualify certifications:

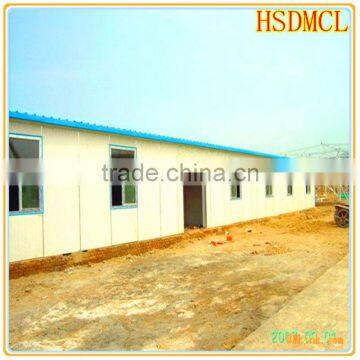

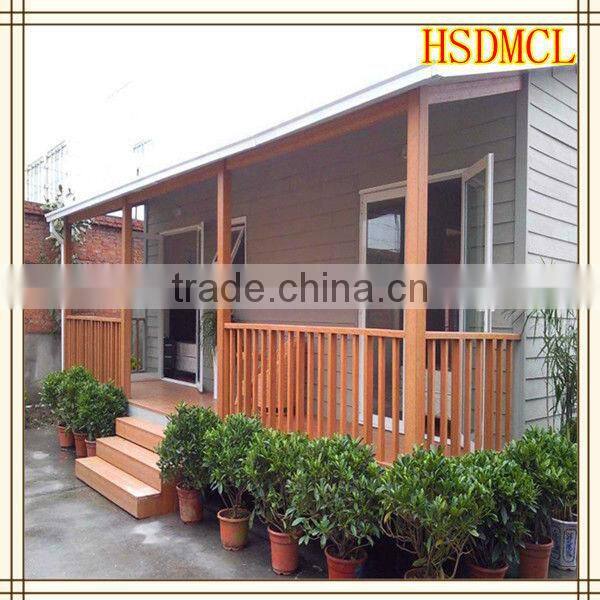

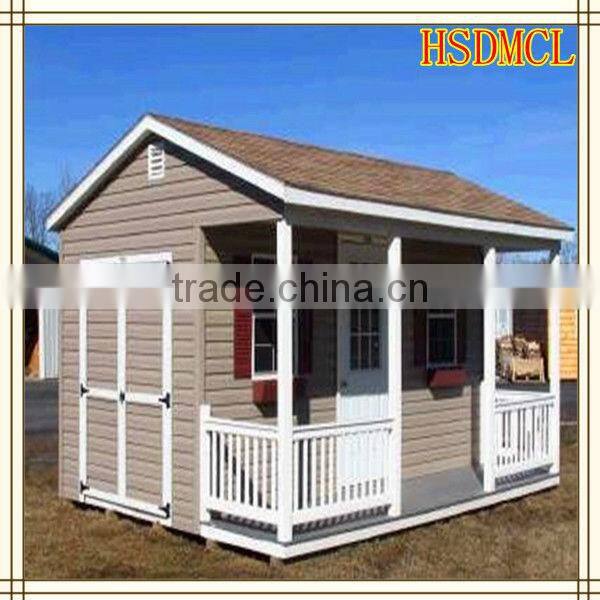

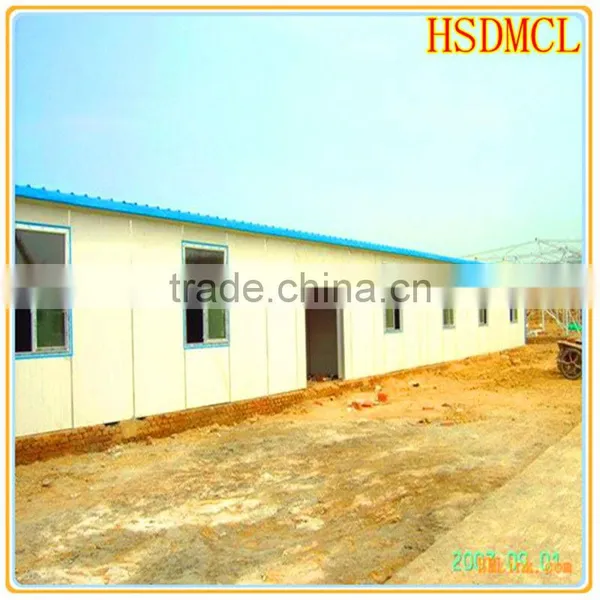

Steel structure prefabricated house pictures:
