Specifications
1.100% leaking-proof2.virgin lexan or bayer material
3.UV & 10 yrs quality guarantee
petitive price
5.good connetor

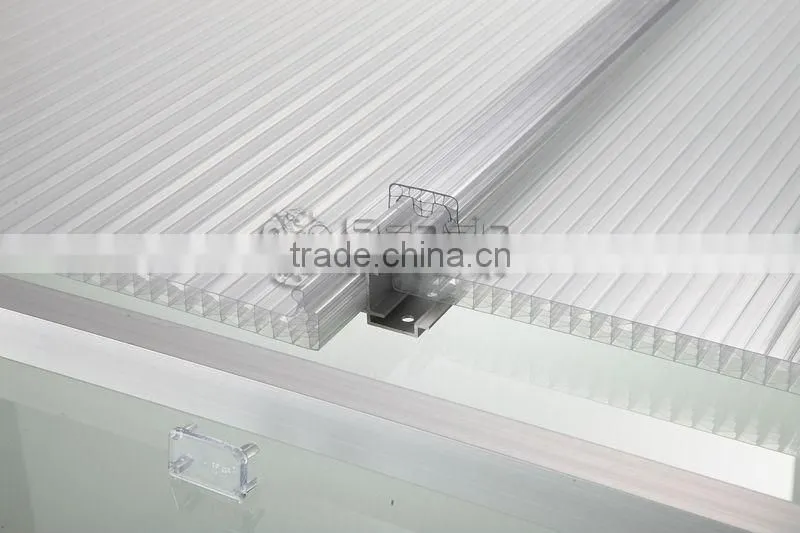

u-lock polycarbonate sheet
Gensin U sheet is an advanced construction system , its design has been proved it combined good lighting , heat insulation and high impact resistance features . I t provides non heat expansion and no leakge design , can bearing a very high weight loads . Advantages of Lixin systems make it a good choice for long-time use .
Product features :
- Light weight
- High impact strength
- Fire retardancy
- Good light transmission
- With UV protection and thermal insulation
- Excellent physical, mechanical, and electrical properties
- Inhibits condensation
- Customized dimensions
- Simply processed and installed
- with all the competents
STRUCTURE |
THICKNESS(mm) |
WEIGHT (kg/sqm) |
WIDTH(mm) |
U-VALUE (W/m2K) |
LIGHT TRANMISSION(%) |
4wall rectangle |
6 |
1.7 |
600 |
2.63 |
76 |
8 |
1.9 |
2.57 |
73 |
||
10 |
2.2 |
2.41 |
70 |
||
4wall honeycomb |
8 |
2.1 |
2.45 |
72 |
|
10 |
2.4 |
2.16 |
69 |
||
12 |
2.6 |
1.98 |
68 |
||
6wall diamond |
14 |
3.1 |
800 |
1.81 |
69 |
16 |
3.3 |
1.62 |
67 |
||
18 |
3.6 |
1.53 |
65 |
||
7wall diamond |
18 |
3.8 |
1040 |
1.51 |
60 |
20 |
4.1 |
1.48 |
59 |
||
22 |
4.3 |
1.45 |
57 |
||
25 |
4.5 |
1.39 |
55 |
||
5wall honeycomb |
25 |
4.5 |
1.31 |
53 |
|
28 |
4.8 |
1.29 |
51 |
||
30 |
5 |
1.27 |
48 |
Mostly excellence:
- Withstand very high loads
- No thermal expansion
- Simple and quick to install
- Prevent leakage
- Thermal protection and insulation
- Suitable for bending design
- Intellective & light control series products
Property |
method |
conditions |
units |
Value |
Density |
D-790 |
|
g/cm3 |
1.2 |
Heat deflection temperature (HDT) |
D-648 |
Load:1.82Mpa |
°C |
130 |
Service temperature- short term |
|
|
°C |
-50-120 |
Service temperature –long term |
|
|
°C |
-50-100 |
Coefficient Of Linear Thermal Expansion |
D-696 |
|
cm/cm°C |
6.5*10-5 |
yield strength |
D-638 |
10mm/min |
Mpa |
62 |
elongation at break |
D-638 |
10mm/min |
% |
>80 |
falling weight impact test |
ISO 6603/1 |
|
J |
40-400 |
|
hermal expansion, contraction rate |
|
|
mm/m Color: clear, bronze, white opal, blue, orange, etc |
3 |

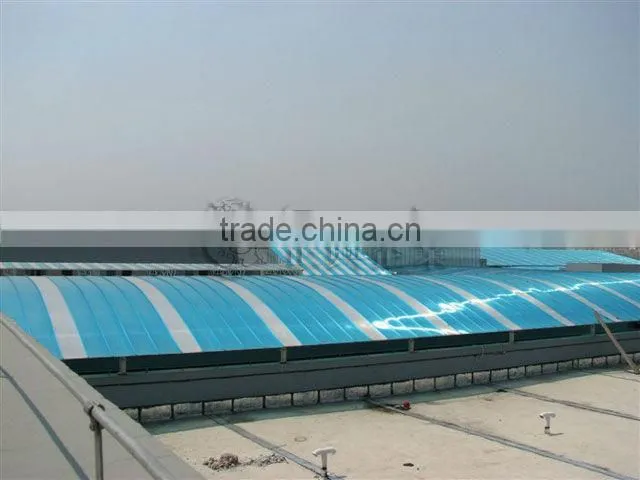

Applications :
- Business and retail building
- Sporting roofing
- With canopy footway
- Fairground
- Service station
- Entrance
- Natatorium roofing
- Color: clear, bronze, white opal, blue, orange, etc
