Specifications
plastic building material polycarbonate sheets1. Excellent load capacity
2. 100% leaking-proof and free expansion
3. UV coat
Lixin plastic building material polycarbonate sheets

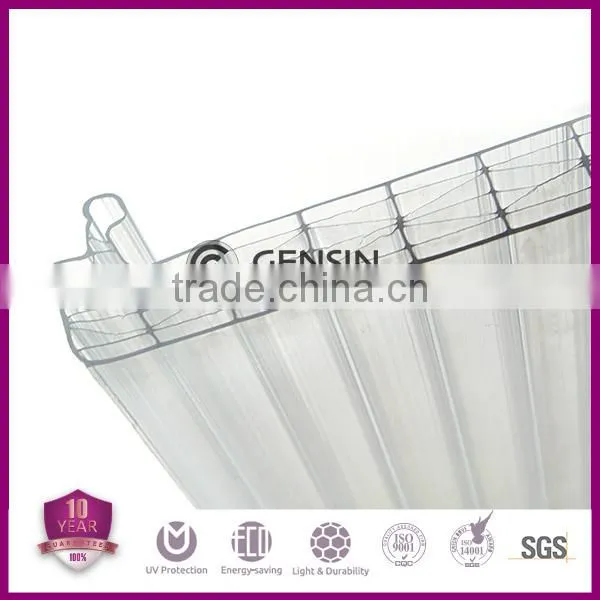

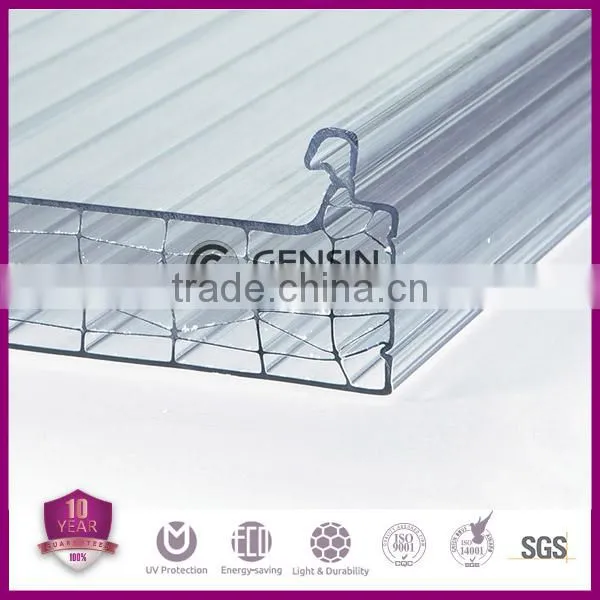

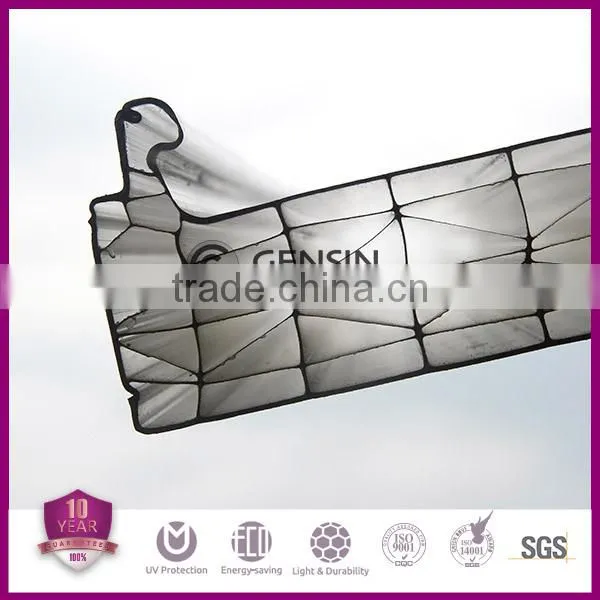

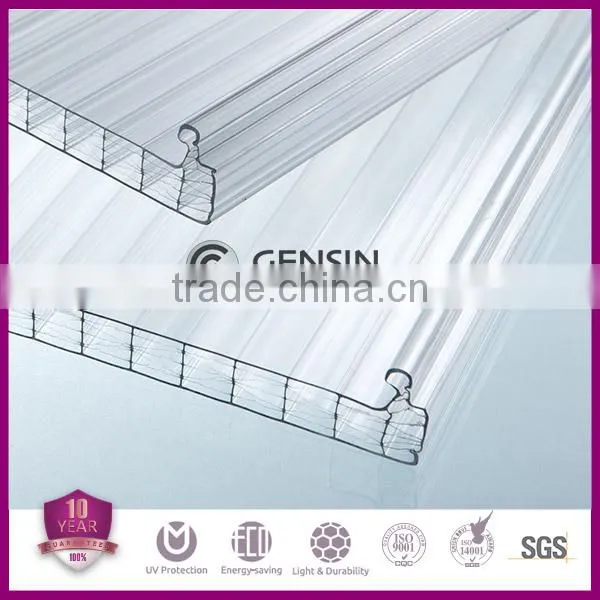

Lixin® LGU locking design system(polycarbonate locking sheet) is lastest developed products by GENSIN technical team. The system uses a free slip mountings, a fundamental solution to the ordinary polycarbonate sheets at different using temperature the thermal expansion shrinkage problem, vertical rib edge design makes the whole system to prevent the installation of combined with stronger, easier to maintain. GENSIN R & D team can develop specific color, structure, and different light transmission capabilities of the new thermal insulation to meet the needs of individual users. 80um high concentration of UV co-extruded layer to ensure that product more than 15 years of continuous use.
Haining Gensin Plastic Sheet Co.,Ltd is founded in 2003, one of the largest manufacturer of polycarbonate sheet.
There are 5 hollow sheets production lines, 2 solid sheets production lines, 1 Union solid sheet production line and 4 PC profile production lines. More than 100 production workers.
All our products are produced by 100% virgin Sabic/Bayer/Lexan material.
Polycarbonate sheet is an economic and environmetal building material.
|
Wall |
Thickness (mm) |
Weight (kg/sqm) |
Rib Distance (mm) |
U-value (w/sqm*k) |
UV Side
|
LT(%) Clear |
LT(%) Opal White |
Width (mm) |
|
7D Structure |
16 |
3.5 |
15 |
1.60 |
One side |
50 |
20 |
1040 |
20 |
4.0 |
1.46 |
49 |
19 |
||||
25 |
4.5 |
1.39 |
49 |
19 |
1 |
Light weight |
2 |
Excellent impact resistance |
3 |
Good light transmission |
4 |
Good weather resistant and UV protection |
5 |
Sound and heat insulation |
6 |
Simple process and installation |
7 |
Grade B1 fire resistance |
8 |
An engineering plastic of excellent integration capability |
For hollow sheets, PE film on both sides,and the two ends sealed with PE sealing tape.
Polycarbonate sheet has high light transmittance, good impact resistance, good thermal insulation, easy installation, and widely used in construction and decoration.
Every year we will take an active part in many related building materials exhibition and advertising exhibition.
1. We only produce Grade A polycarbonate sheets
2. We have 12 production lines
3. Gensin has a great sales team, feel free to contact us!!!
