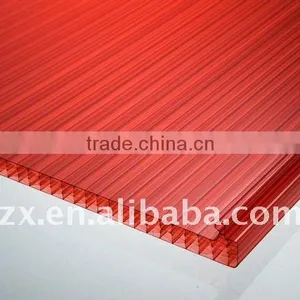

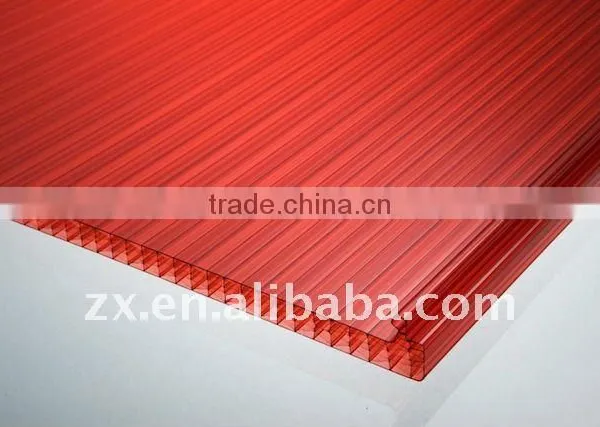

U-lock Polycarbonate Hollow Sheets

Specifications

Hollow pc sheets
1. H-structure and X structure
2. triple-wall
3. produced by 100% Lexan raw material
4.ISO:9001:2008

U-lock Polycarbonate Hollow Sheet

Specification for PC triple-wall sheet(H structure&  D structure):

1)Standard width:2100mm

2)Length:no limit

3)Thickness:6mm--30mm

4)Colors:clear,blue,green,brown,bronze,opal,red,etc.



Technical Features:

1)Light weight:8mm-1.9kg/sqm,10mm-2.2kg/sqm,12mm2.6kg/sqm,14mm-3.1kg/sqm 16mm-3.3kg/sqm

2)High impact resistance

3)Good light transmission:60%-77% for clear color different thickness

4)Good heat insulation(K value):8mm-2.8W/m²K   10mm2.7W/m²K

                                              12mm-2.6W/m²K  14mm-2.5W/m²K, 16mm-2.3W/m²K

5)UV layer thickness: 50μm ,can filter about 99% ultraviolet radiation in sunshine

6)The minimum bend radii for different thicknesswith standard size(2100mm*6000mm)

   10mm--1750mm,  12mm--2100mm,14mm--2450mm,16mm--2800mm

 7)Simply processed and installed



Applications:

1)Building/House skylights

2)Work shop/storehouse skylight

3)Roofing

4)Carports

5)Indoor partition

6)Cover of greenhouse
