Specifications

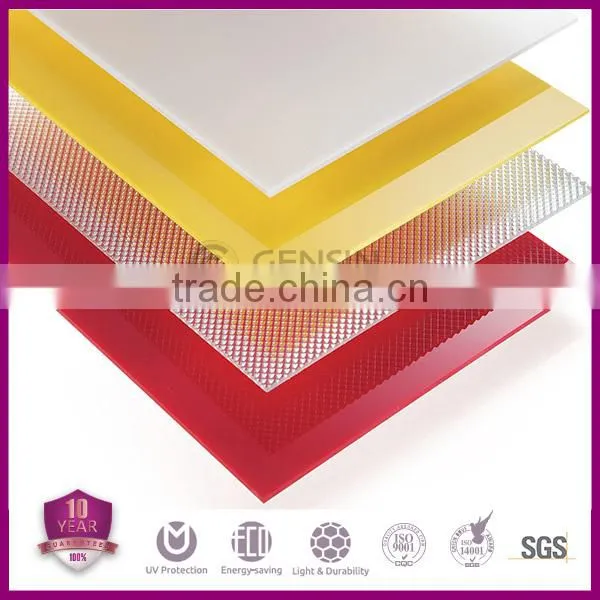

Good Fire Resistance Polycarbonate LED Cover Backlight HideHigh impact strength
Good diffusion effect
Good transmittance
Good Fire Resistance Polycarbonate LED Cover Backlight Hide
Features:
- Good diffusion effect, cannot see the backlight
- Combining with LED light can get the effect of color change
- Good weahter resistance and UV protection
- Very high impact strength
- Good light transmittance
- Light weight, simple installation
- Meet difference fire rating
Applications:
- Advertising ligh boxes, signs
- Outdoor billboards
- LED lighting
- Guides system
- Light cover
Item |
Property |
Value |
|
Polycarbonate Solid Sheet |
Light weight |
Density:1.2Kgs/cbm, half weight of glass |
Light transmission |
80%-90% for different thickness of clear color |
|
UV resistance |
50μm UV layer, filter 99% ultraviolet radiation in sunlight |
|
Coefficient of thermal expansion |
0.065 mm/m°c |
|
Service temperature |
-40°c to 120°c |
|
Heat conductivity |
2.3-3.9 W/m2℃ |
|
Tensile strength |
>60N/mm² |
|
Flexural strength |
100N/mm² |
|
Tensile street at break |
>65mPa |
|
Heat deflection temperature |
140°c |
|
| High Impact strength |
impact strength is 250 times of glass,
20-30 times of PMMA sheet
|
|
| Fire Rating |
B1/V2, self-extinguish within 60 seconds |

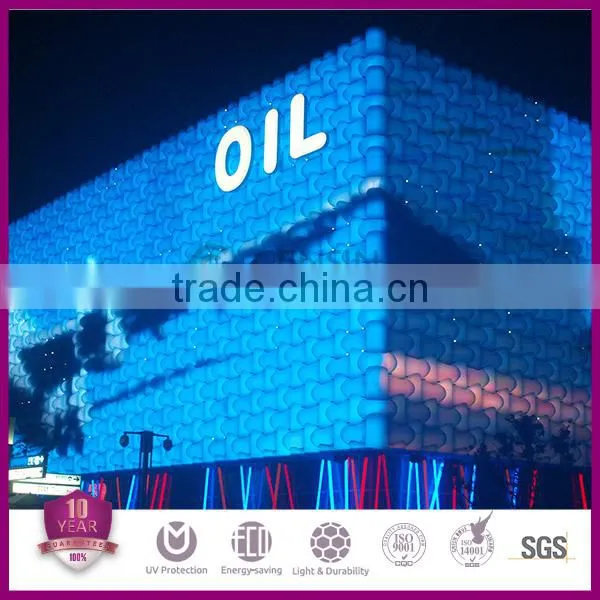

Gensin Brilliant blue light diffusion sheet is used in the 2010 Shanghai World Expo Oil Museum project. Three-color LED light source is installed inside the sea-blue sheet. During the day time, the bright sea-blue is a symbol of the future about China's petroleum industry. At night, under the light of the mapping, it evolved into a colorful large screen. Especially during the World Expo in Shanghai has been a perfect show, it marks the success of Gensin colorful light diffuser technology has reached world advanced level, can provide customers black and white sheets, including the spread of a perticular shade of the base sheets.
