Industrial Scale Intelligent Control Flat/curved Toughened Glass Furnace
1. Brief introduction of Toughened Glass Furnace
Toughened Glass Furnace is used for producing large-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc. The type of sheet glass can be various such as float glass, coated glass, tinted glass,soft low-E glass etc.

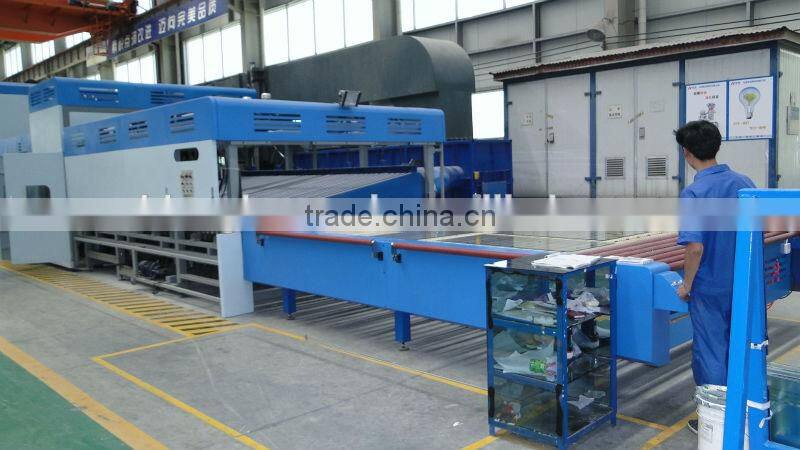

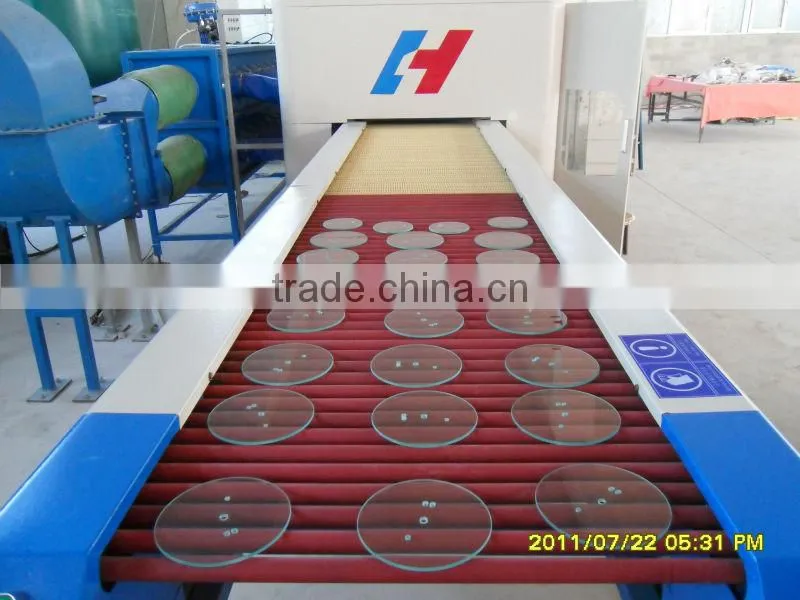

2. Picture of Toughened Glass Furnace
3. Technical parameter (for your reference)
Type | Max. size(mm) | Min. size(mm) | Thickness(mm) | Capacity(m2/h) | Power supply capacity(KVA) |
HPQ2515 | 2500*1500 | 150*250 | 3-19 | 68 | ≥315 |
HPQ3015 | 3000*1500 | 150*250 | 3-19 | 83 | ≥400 |
HPQ2518 | 2500*1800 | 150*250 | 3-19 | 83 | ≥400 |
HPQ3018 | 3000*1800 | 150*250 | 3-19 | 100 | ≥400 |
HPQ3618 | 3660*1800 | 150*250 | 3-19 | 119 | ≥500 |
HPQ3021 | 3000*2100 | 150*250 | 4-19 | 115 | ≥500 |
HPQ3621 | 3660*2100 | 150*250 | 4-19 | 139 | ≥630 |
HPQ4221 | 4200*2100 | 150*250 | 4-19 | 162 | ≥630 |
HPQ3624 | 3660*2440 | 150*250 | 4-19 | 158 | ≥630 |
HPQ4224 | 4200*2440 | 150*250 | 4-19 | 185 | ≥800 |
HPQ5024 | 5000*2440 | 150*250 | 4-19 | 221 | ≥1000 |
HPQ6024 | 6000*2440 | 150*250 | 5-22 | 264 | ≥1000 |
HPQ5028 | 5000*2800 | 200*300 | 5-22 | 257 | ≥1000 |
HPQ6028 | 6000*2800 | 200*300 | 5-22 | 308 | ≥1250 |
4. Electric parts configuration
Electric parts | brand |
Electrical system | Omron(Japan),Siemens(Optional) |
Ceramic rollers | Zhongcai(China famous brand), VSV(Optional) |
Insulated cotton | Luyang(China), ISOLITE(Optional) |
Heating wire | Cr15Ni60 |
Motor | Made in china, ABB(Optional) |
Frequency inverter | Schneider(France),CONVO(Germany),Mitsubishi(Optional) |
5. Technical features of toughened glass furnace
1). Continuously operate
2). High glass flatness
3). Reducing glass scratch
4). More efficient
5). Forced convection heating
6. Service we provide
1). Installation and Training
Technicians are available to serve overseas for installing and training.
2). Warranty
12 month quality guarantee except for the man-made damage and force majeure circumstances.
3). Cost
Above mentioned travel expense is on the buyer, including the round ticket, accommodation cost and the daily wage.
7. Our honors and certificate
8. Packing and shipping
1) wrapped by plastic film
2) according to customers' requirement

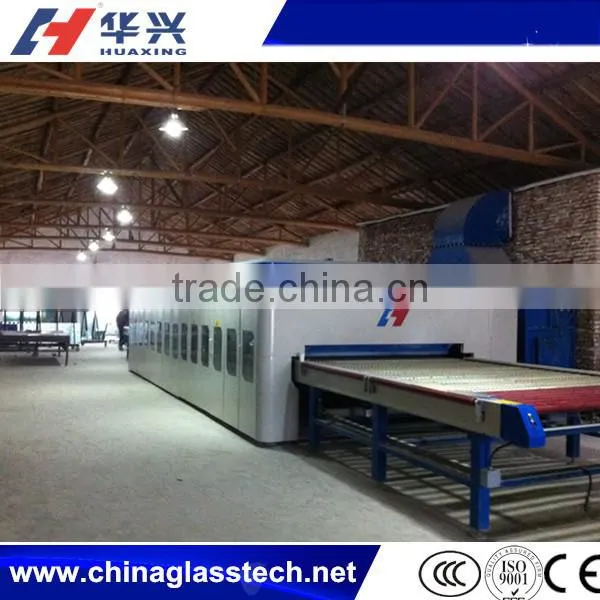

9. Factory Picture
China Glass Tech Co., Ltd is specialized in the research, manufacturing and marketing of various kinds of glass and glass machinery, mainly including tempering furnace and tempered glass, insulated glass, laminated glass etc.
