Automatic Intelligent Control Clear Glass Tempering Machine Price

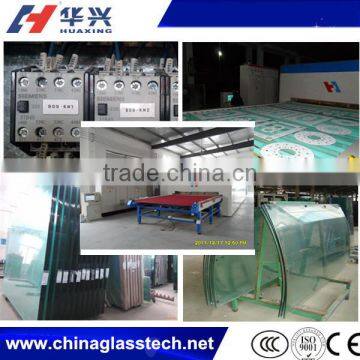

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-1

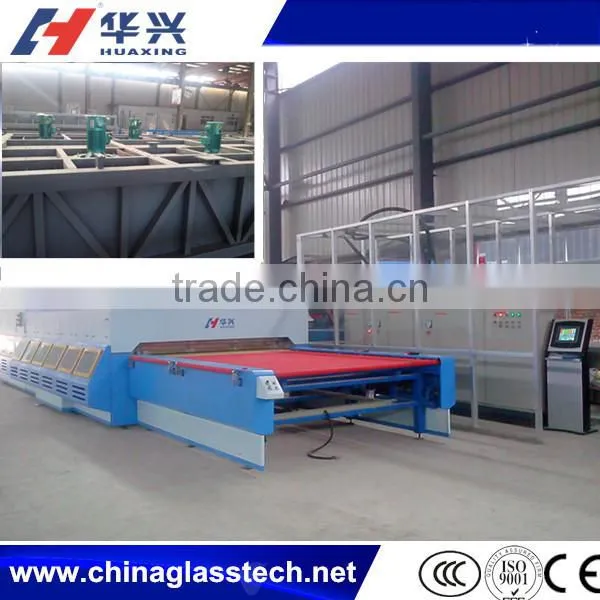

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-2

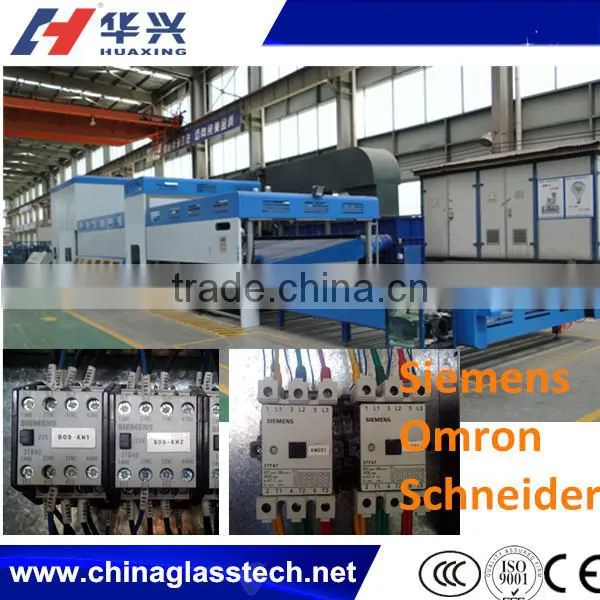

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-3

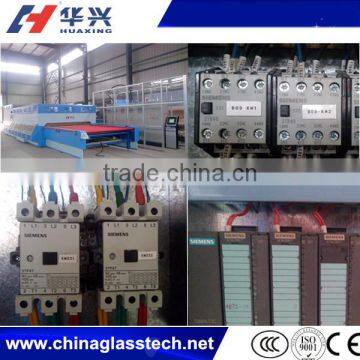

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-4

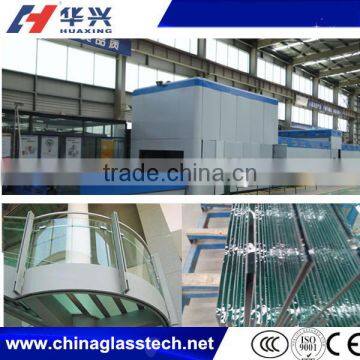

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-5

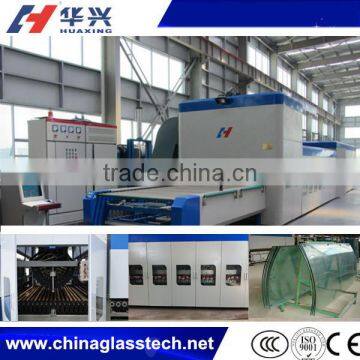

Automatic Intelligent Control Clear Glass Tempering Machine Price photo-6
US$ 50,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Tempering Furnace
Production Capacity:
15-18 loads/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin Port Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Glass Tempering Furnace
Production Capacity 15-18 loads/h
Place of Origin Shandong, China
Brand Name HUAXING
Model Number Glass Tempering Machine Price
Voltage 3 phases, 380v, 50Hz or as per your requirements
Power(W) 792000
Dimension(L*W*H) 7000*4000*2000mm
Weight about 3220kg
Certification Other, CE,ISO etc
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Automatic Intelligent Control Clear Glass Tempering Machine Price





1. Brief introduction

Glass tempering machine is used for producing large-size flat, tempered glass for architecture, and furniture, shower cabins and kitchen, etc. The type of sheet glass can be various such as float glass, coated glass, tinted glass, soft low-E glass etc. It consists of loading table, heating section, cooling and tempering section and unloading table. When heated up to 700℃, glass is cooled and tempered quickly with large stress produced on the surface. When impacted strongly, the glass will be broken into small pieces without sharp corners.

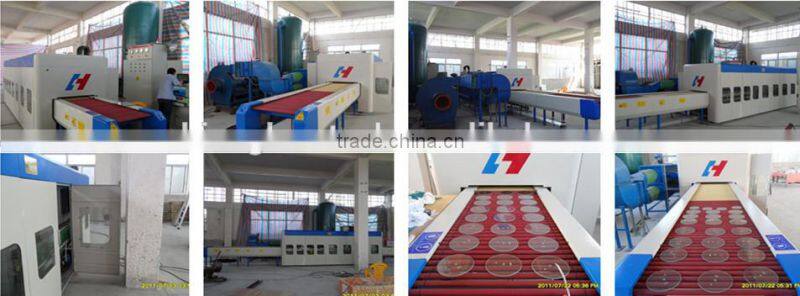

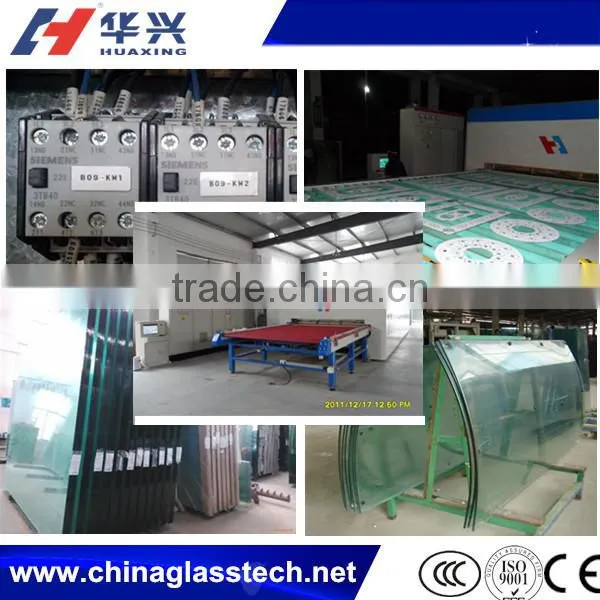

2. Pictures of glass tempering machine



3. Technical parameter of glass tempering machine

Type

Max. size(mm)

Min. size(mm)

Thickness(mm)

Capacity(m2/h)

Power supply capacity(KVA)

HP1506

1500*600

90*90

3-8

14

≥100

HP1508

1500*800

100*100

3-12

18

≥150

HP2010

2000*1000

100*100

3-12

30

≥200

HP2012

2000*1200

120*120

3-12

37

≥250

HP2512

2500*1200

120*120

3-12

46

≥250

HP2515

2500*1500

150*250

3-19

57

≥315

HP3015

3000*1500

150*250

3-19

69

≥400

HP2518

2500*1800

150*250

3-19

69

≥400

HP3018

3000*1800

150*250

3-19

83

≥400

HP3618

3660*1800

150*250

3-19

99

≥500

HP3021

3000*2100

150*250

4-19

96

≥500

HP3621

3660*2100

150*250

4-19

116

≥600

HP4221

4200*2100

150*250

4-19

135

≥700

HP3624

3660*2440

150*250

4-19

132

≥630

HP4224

4200*2440

150*250

4-19

154

≥800

HP5024

5000*2440

150*250

4-19

184

≥1000

HP6024

6000*2440

150*250

5-22

220

≥1000

HP5028

5000*2800

200*300

5-22

214

≥1000

HP6028

6000*2800

200*300

5-22

257

≥1250

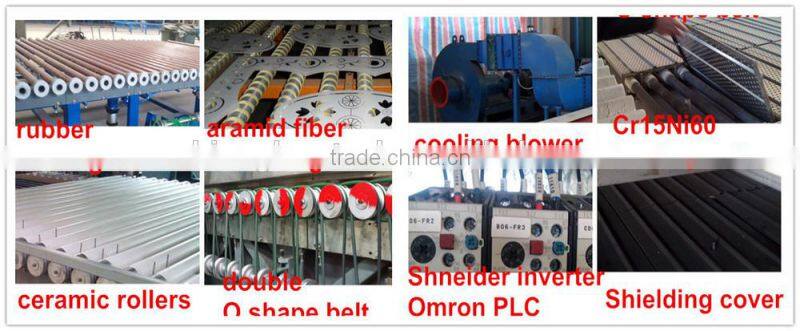

4. Electric parts configuration of glass tempering machine

Electric parts

Brand

Electrical system

Omron(Japan),Siemens(Optional)

Ceramic rollers

Zhongcai(China famous brand), VSV(Optional)

Insulated cotton

Luyang(China), ISOLITE(Optional)

Heating wire

Cr15Ni60

Motor

Made in china, ABB(Optional)

Frequency inverter

Schneider(France),CONVO(Germany),Mitsubishi(Optional)

Automatic Intelligent Control Clear Glass Tempering Machine Price

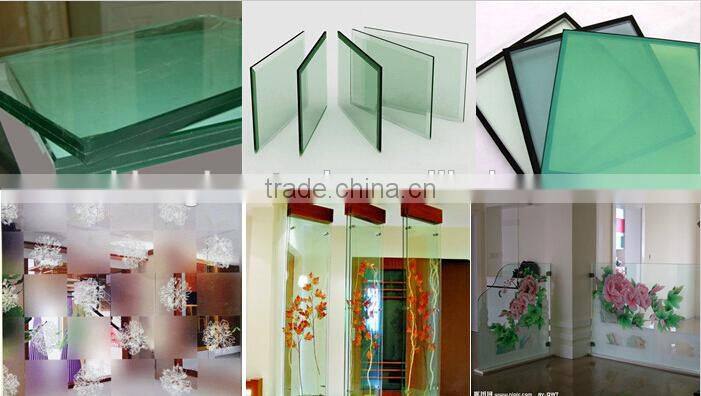

5. Tempered glass application area

  • Laminated tempered glass: Architectural glass, tempered glass, bending glass, bullet-proof glass, art glass sandwiched with true flower, silk, cloth, pattern, photo etc.
  • Windshield for cars, trains, military vehicles and ships
  • Solar pv panel/led laminated glass

Automatic Intelligent Control Clear Glass Tempering Machine Price



6. Technical features of glass tempering machine

  • traditional and classic model,special insulation layer design,lower furnace body temperature.
  • lattice intelligent heating mode,adjustable power,excellent glass heated uniformity.
  • upper and lower grid with indepenence lifting mechanism, ensure flatness.
  • advanced air compression technology, 2.85mm thickness glass can be tempered.

7. Service we provide

  • before delivery, workshop layout drawing etc to guide to build workshop.
  • when delivery, technical manual and operation manual etc to guide workers
  • after delivery, 1-2 technicians will be sent to install and train for 2 weeks abroad. Meanwhile, 1 year guarantee to replace easy damaged parts for free.

8. Our honors and certificate

Automatic Intelligent Control Clear Glass Tempering Machine PriceAutomatic Intelligent Control Clear Glass Tempering Machine Price

9. Packing and shipping

1) wrapped by plastic film

2) according to customers' requirement

Automatic Intelligent Control Clear Glass Tempering Machine Price

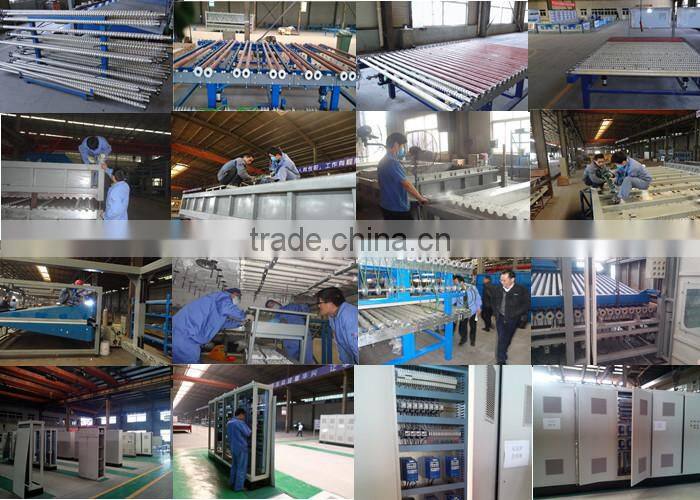

10. Factory Picture

China Glass Tech Co., Ltd is specialized in the research, manufacturing and marketing of various kinds of glass and glass machinery, mainly including tempering furnace and tempered glass, insulated glass, laminated glass etc.
