Specifications
1.Advanced heating and special cooling system2.Glass type: float / low-e glass etc
3. Save energy labour
4.CE certificate
Full Convetion Tempered Glass Making Furnace
1. Brief Introduction
The HPQ series Glass tempering furnace is composed of loading section, heating section; tempering section, and unloading section.
Adopting most advanced double-row blower jet and heating technology, the heat transfer efficiency is greatly increased than conventional convection furnace.
The productivity is improved, the glass quality is better, and more energy efficient. Unique hot air circulation system makes pressure stable in the furnace, and the uniformity of furnace temperature is greatly increased. It is especially suitable for the heating of coated glass and Low-E glass.
2. Photo of Glass Making Furnace
3. Technical Data of Glass Making Furnace
Type |
Max size |
Min size |
Thickness |
Capacity |
Power supply capacity(KVA) |
HPQ2515 |
2500*1500 |
150*250 |
3-19mm |
68 |
≥315 |
HPQ3015 |
3000*1500 |
150*250 |
3-19mm |
83 |
≥400 |
HPQ2518 |
2500*1800 |
150*250 |
3-19mm |
83 |
≥400 |
HPQ3018 |
3000*1800 |
150*250 |
3-19mm |
100 |
≥400 |
HPQ3618 |
3600*1800 |
150*250 |
3-19mm |
119 |
≥500 |
HPQ3021 |
3000*2100 |
150*250 |
4-19mm |
115 |
≥500 |
HPQ3621 |
3600*2100 |
150*250 |
4-19mm |
139 |
≥630 |
HPQ4221 |
4200*2100 |
150*250 |
4-19mm |
162 |
≥630 |
HPQ3624 |
3600*2400 |
150*250 |
4-19mm |
158 |
≥630 |
HPQ4224 |
4200*2400 |
150*250 |
4-19mm |
185 |
≥800 |
HPQ5024 |
5000*2400 |
150*250 |
4-19mm |
221 |
≥1000 |
HPQ6024 |
6000*2400 |
150*250 |
5-22mm |
264 |
≥1000 |
HPQ5028 |
5000*2800 |
200*300 |
5-22mm |
257 |
≥1000 |
HPQ6028 |
6000*2800 |
200*300 |
5-22mm |
308 |
≥1250 |
4. Our Service
We can arrange technical engineers to install the equipment on-site. Also, our technical engineers can finish the installation and adjustment within 20 days.

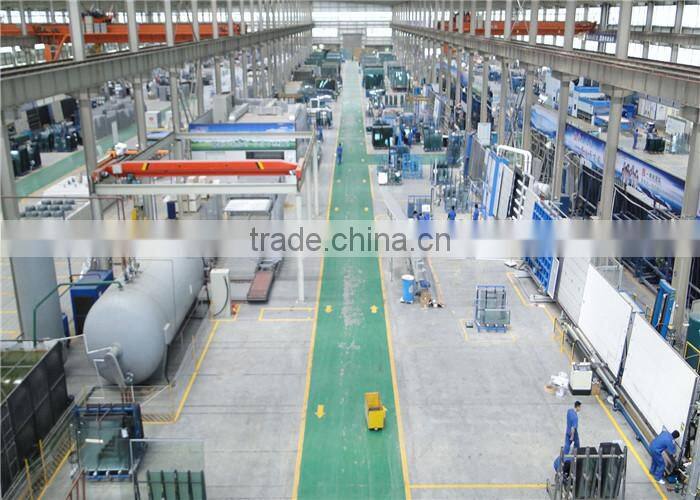

5. Photo of Factory
China Glass Tech Co. Ltd covers more than 60,000 square meter. Mainly engaged in glass machinery, door&windows curtain walls, glass products.
6. Customer Visiting
Products have been exported to over 30 countries. Welcome your visiting.
