Specifications
1. Full automatic2. 50 years export experience
3. Beckhoff intelligent control
4 Convection heating
5.CE, ISO etc
CE&CCC 4-19mm double row fan automatic Tempered Glass Melting Furnace
1. Brief introduction
This glass melting machine is used for producing large-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc.

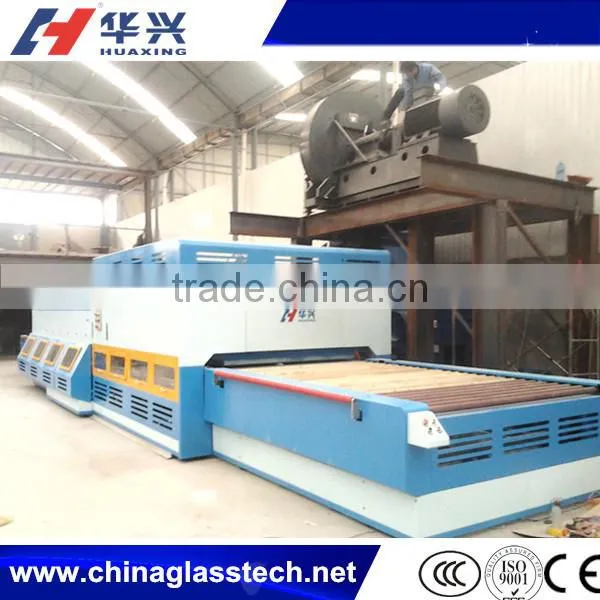

2. Photo of Glass Melting Furnace
3.Technical Data of Glass Melting Furnace
Type | Max. size (mm) | Min. size (mm) | Thickness (mm) | Capacity (m2/h) | Power supply capacity(KVA) |
HP1506 | 1500*600 | 90*90 | 3-8 | 14 | ≥100 |
HP1508 | 1500*800 | 100*100 | 3-12 | 18 | ≥150 |
HP2010 | 2000*1000 | 100*100 | 3-12 | 30 | ≥200 |
HP2012 | 2000*1200 | 120*120 | 3-12 | 37 | ≥250 |
HP2512 | 2500*1200 | 120*120 | 3-12 | 46 | ≥250 |
HP2515 | 2500*1500 | 150*250 | 3-19 | 57 | ≥315 |
HP3015 | 3000*1500 | 150*250 | 3-19 | 69 | ≥400 |
HP2518 | 2500*1800 | 150*250 | 3-19 | 69 | ≥400 |
HP3018 | 3000*1800 | 150*250 | 3-19 | 83 | ≥400 |
HP3618 | 3660*1800 | 150*250 | 3-19 | 99 | ≥500 |
HP3021 | 3000*2100 | 150*250 | 4-19 | 96 | ≥500 |
HP3621 | 3660*2100 | 150*250 | 4-19 | 116 | ≥600 |
HP4221 | 4200*2100 | 150*250 | 4-19 | 135 | ≥700 |
HP3624 | 3660*2440 | 150*250 | 4-19 | 132 | ≥630 |
HP4224 | 4200*2440 | 150*250 | 4-19 | 154 | ≥800 |
HP5024 | 5000*2440 | 150*250 | 4-19 | 184 | ≥1000 |
HP6024 | 6000*2440 | 150*250 | 5-22 | 220 | ≥1000 |
HP5028 | 5000*2800 | 200*300 | 5-22 | 214 | ≥1000 |
HP6028 | 6000*2800 | 200*300 | 5-22 | 257 | ≥1250 |
5. Our Service
1). Free home installment and technical training, and guiding you how to operate it.
2). Offering operation parameter for processing different laminated glasses, such as tempered glass, float glass, real flower glass and picture laminated glass, etc.
6. Photo of Factory
China Glass Tech Co. Ltd covers more than 60,000 square meter. Mainly engaged in glass machinery, door&windows curtain walls, glass products.
6. Customer Visiting
Products have been exported to over 30 countries. Welcome your visiting.
