din 8077 8078 ppr pipes/ppr pipes distributor
- 50000 Meter / Meters per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | Fosite | Model Number: | 20mm,25mm,32mm |
Material: | Other, ppr | Specification: | 20mm*2.3mm | Length: | 4meter |
Thickness: | 2.3mm,3.0mm,3.7mm | Standard: | DIN/8077/8088 |
Product Description

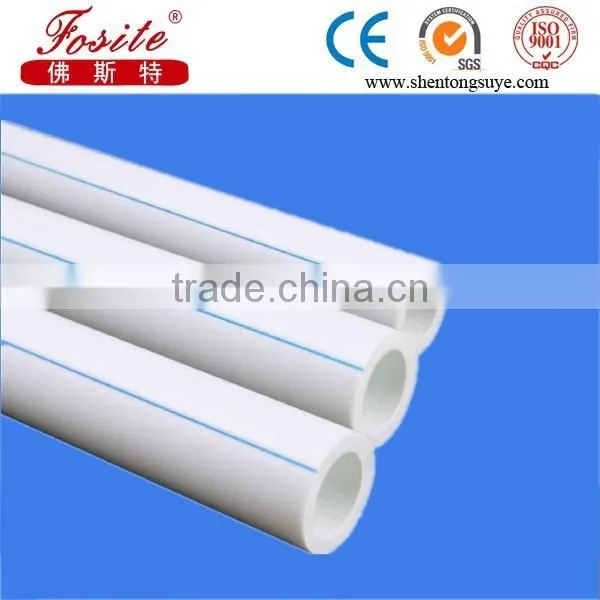

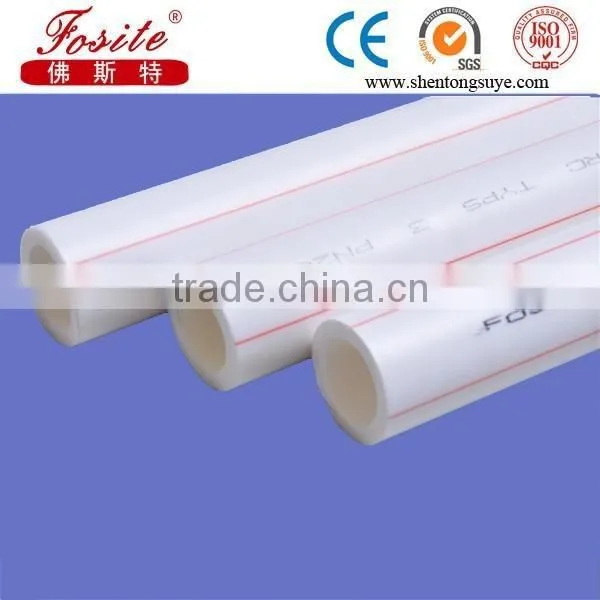

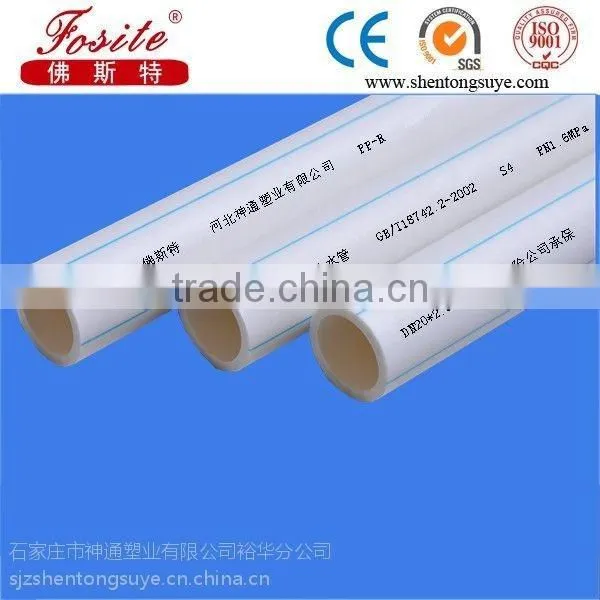

din 8077 8078 ppr pipes/ppr pipes distributor
1. Material: 100% virgin PPR
2. Colors: white, grey, green, light brown and any other color on request
3. Certification: ISO9001,
4. Size(mm): 16-160mm (16,20,25,32,40,50,63,75,90,110,125,160)
Physical Property :
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
Specification:
| PN 1.0MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Outer Diameter dn(mm) | Wall Thickness en (mm) | WallThickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) |
16 |
|
|
|
|
20 | 2 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.1 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15 |
110 | 10 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.6 |
Applications:
cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
