25mm white / green ppr pipes fittings for hot and cold water supply
- 50000 Meter / Meters per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | Fosite | Model Number: | 20mm,25mm,32mm |
Material: | Other, ppr | Specification: | 20mm*2.3mm | Length: | 4m/6m |
Thickness: | 2.3mm | Standard: | DIN8077/8088 |
Product Description

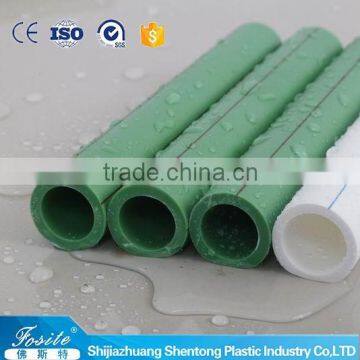

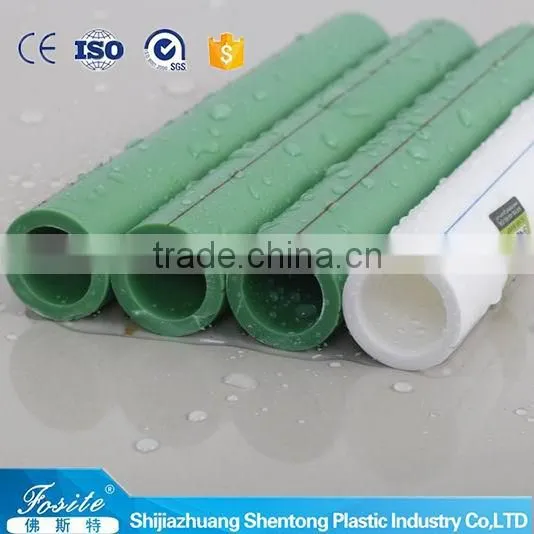

25mm white / green ppr pipes for hot and cold water supply
Specification
Material: 100% virgin PPR
Size: 20mm-110mm
Certificate: CE Certificate
Standard: GB/T18742.2-2002; DIN8077/8078
Working place: -20°-95°
PPR Fittings List;ppr pipe fitting
PPR Equal&Reduer Coupling | PPR Equal&Reducer Elbow | PPR Equal&Reducer Tee |

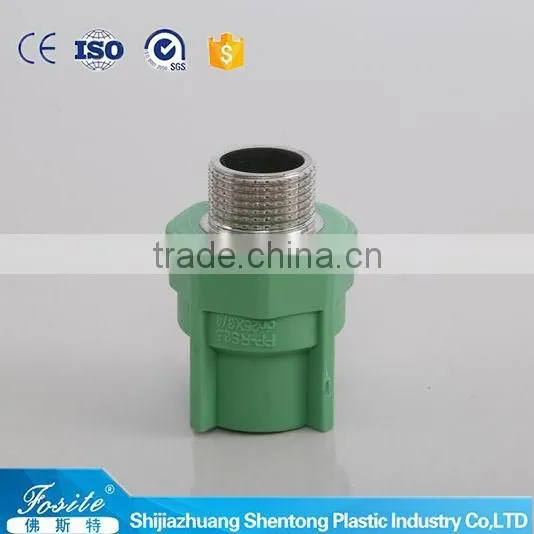

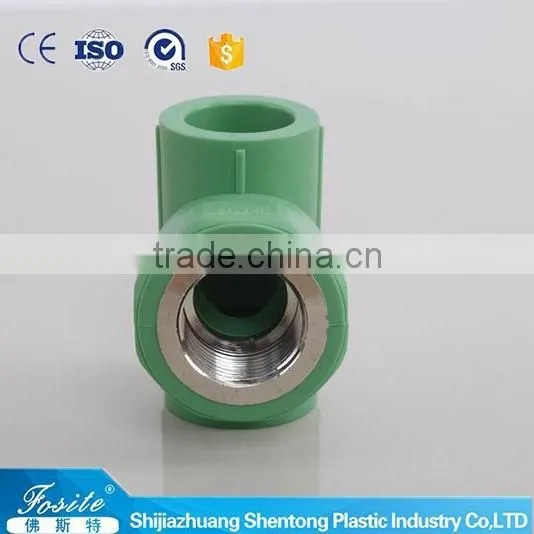

PPR Male&Female Coupling | PPR Male&Female Elbow | PPR Male&Female Tee |
PPR Plug | PPR End Cap | PPR Bridge Tube |
PPR Flange | PPR Stop Valve | PPR PPR Ball Valve |
pp clips; ppr plastic union ;ppr double union ball valve brass ball ;
PPR pipe technique data :
| PN 1.0MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Outer Diameter dn(mm) | Wall Thickness en (mm) | WallThickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) |
16 |
|
|
|
|
20 | 2 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.1 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15 |
110 | 10 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.6 |
Applications:
cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Physical Property :
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
shentongplastic Co.,Ltd locating inShijiazhuang We are as a professional manufacture of PPR Pipe and Fittings.We have been in this line for 15 years. Based on high quality and best service. We have got many high praises and good reputation from our customers.
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,but you only need to pay for the freight charges. when you place an order ,we will rebound the freight charges from the deposit.
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
Any other request, pls contact us. We will do our best to cooperate with you .
