German Standard Ppr Pipes PN25
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Fosite
Model Number:
20mm,25mm,32mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN Germany Standard Ppr Pipe Fittings Manufacturer, Plastic Ppr Pipe for Hot Water/cold WaterUS$ 0.0026 - 0.0039MOQ: 1000 Meters -
Factory Price and Fast Delivery Ppr Pipe for Hot WaterNegotiableMOQ: 1000 Meters
-
Super Quality Promotional Foisted Ppr PipeNegotiableMOQ: 1000 Meters
-
20, 25, 32, 40, 50, 63, 75, 90, 110, 160mm Good Quality and Low Price Ppr Pipe Fittings Tube FittingsUS$ 0.2 - 1MOQ: 1000 Meters
-
Professional Manufacturer Plastic Tube Ppr PipeUS$ 0.15 - 2MOQ: 5000 Meters
Place of Origin
Hebei, China
Brand Name
Fosite
Model Number
20mm,25mm,32mm
Material
Other, ppr
Specification
20mm*2.3mm
Length
4meter
Thickness
2.3mm,3.0mm,3.7mm
Standard
DIN/8077/8088

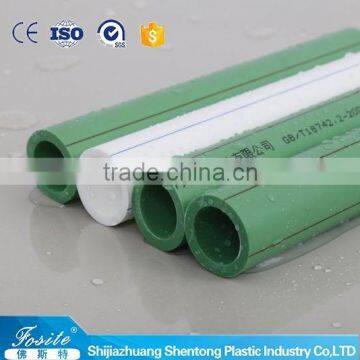

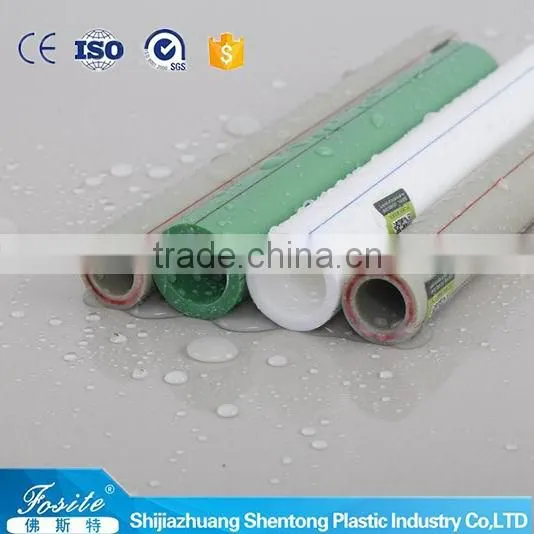

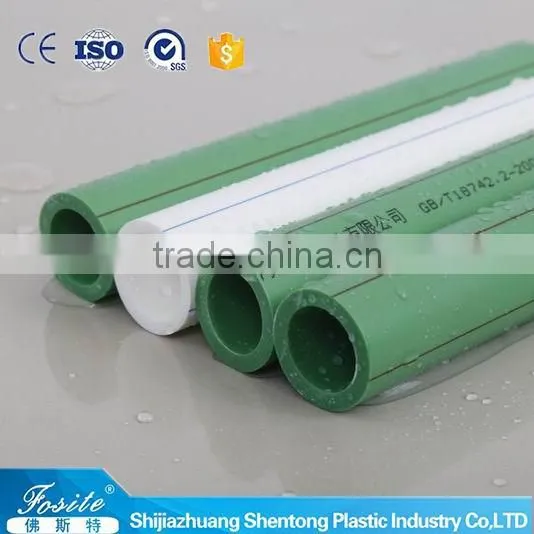

Product: German standard ppr pipes PN25

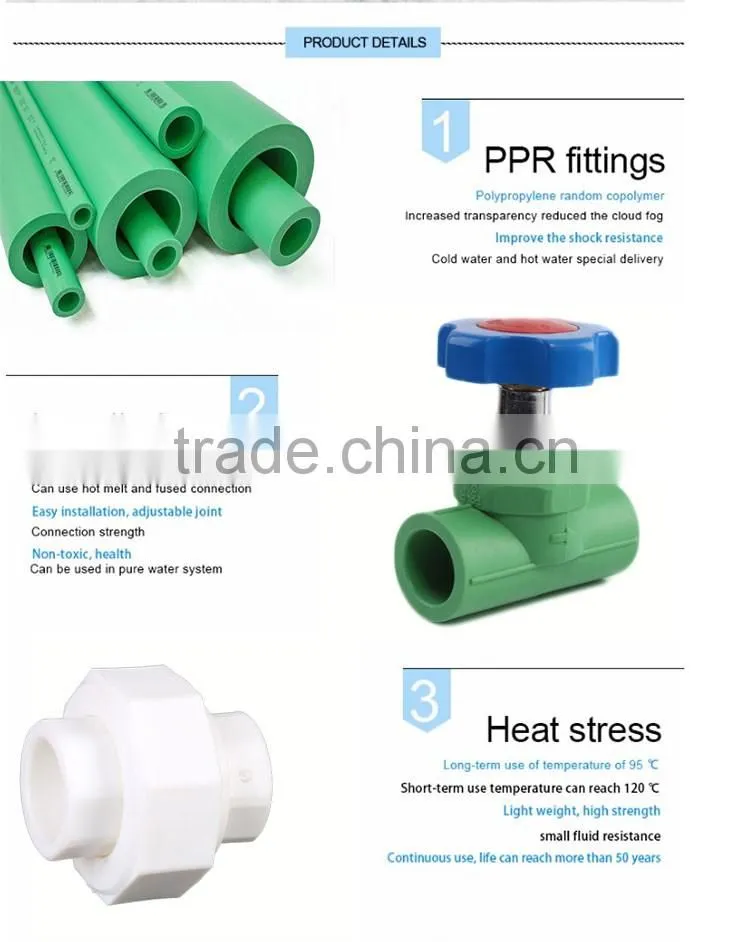

Product Description
1. Material: 100% virgin PPR
2. Colors: white, grey, green, light brown and any other color on request
3. Certification: ISO9001,
4. Size(mm): 16-160mm (16,20,25,32,40,50,63,75,90,110,125,160)
Physical Property :
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
Specification:
|
PN 1.0MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
WallThickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
16 |
|
|
|
|
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
Applications:
cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Packaging & Shipping
Our Services

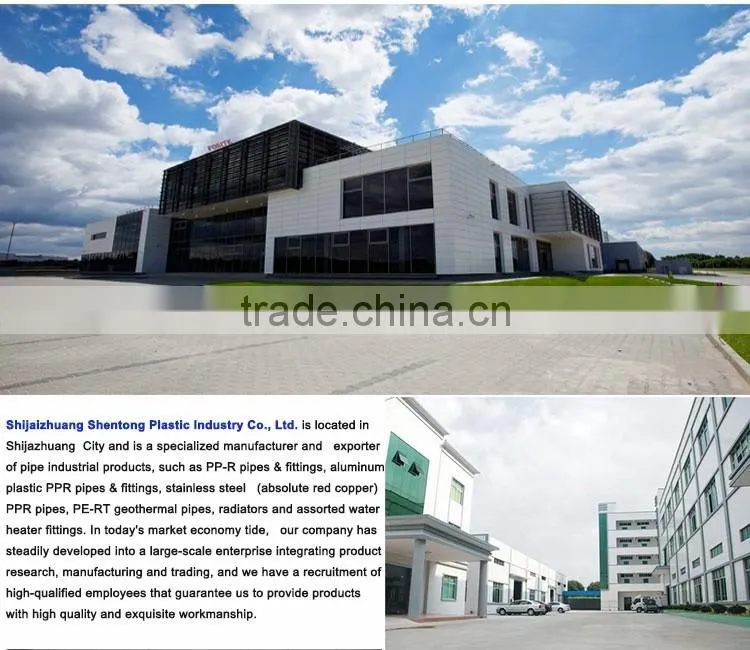

Company Information
