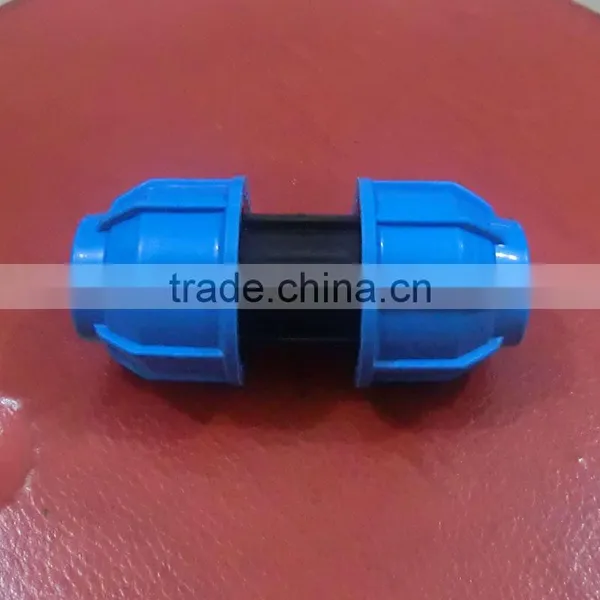

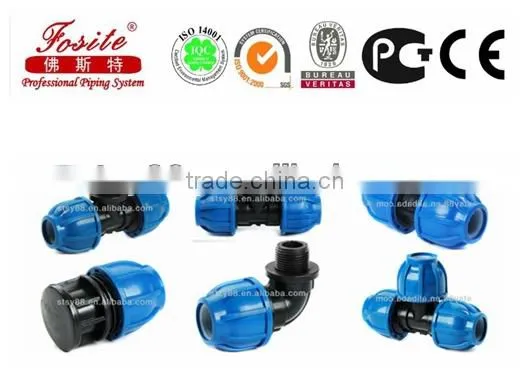

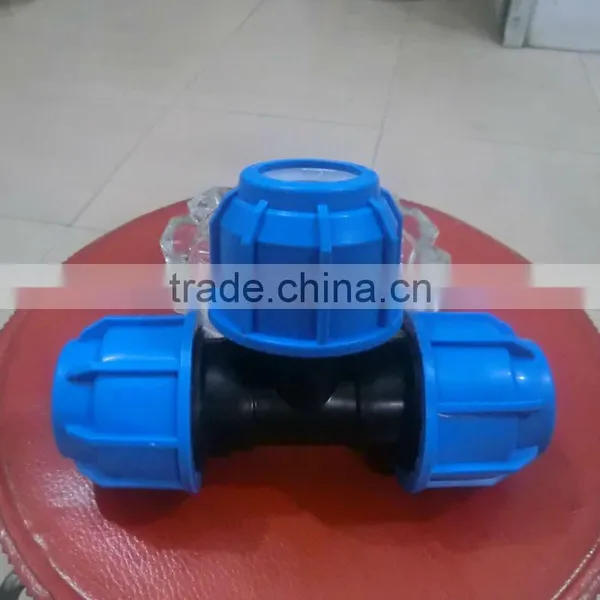

7001 pp fitting hdpe compression fitting for water supply irrigation female threaded
Specifications
new type PP compression fittings for irrigation
1. Size: 20mm-110mm
2.Material: PP
3. Colour: blue, black
4.MOQ: 500 piece
5.OEM: YES
6.Sample Time :3-4 days
7.Delivery time : 15days for 20ft container. 30days for 40HQ.
8.Payment of terms: 30% down payment. the balance will be paid against copy of B/L
Main Material |
PP |
Product Color |
Gray, Blue, black or customized |
Product Size |
20,25,32,40,50,63,75,90,110mm 1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,3”,4” |
Working Pressure |
PN10-16 |
Connection |
Thread and Push in |
Standard |
All Standard suitable |
Part |
Material |
Color |
Body (5) |
Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. |
black |
Nut (1) |
Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) |
blue |
Clinching ring (2) |
Polyacetal resin(POM)with high mechanical resistance white and hardness |
white |
Blocking bush (3) |
Polypropylene |
black |
O Ring gasket (4) |
Special elastomeric acrylonitrile rubber(NBR) for alimentary use |
black |
Reinforcing ring |
AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1/2”to 4” |
silver |
