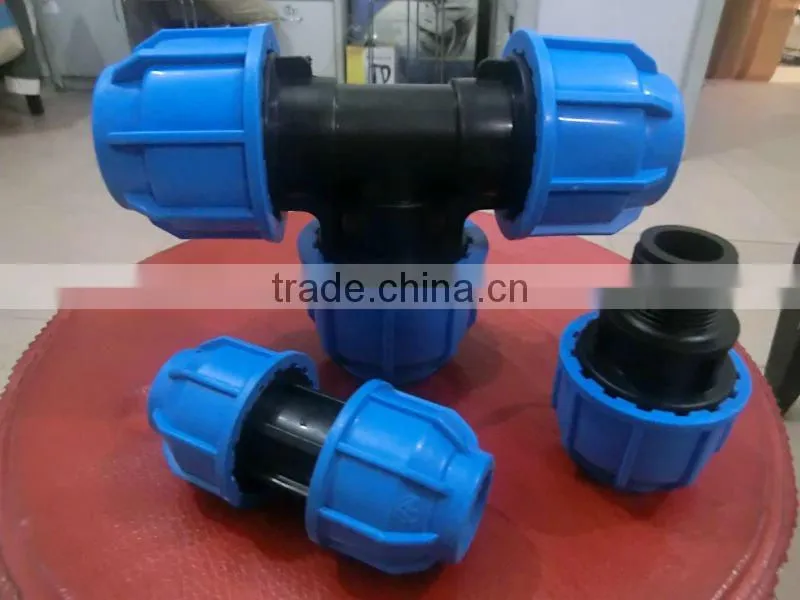

PP COMPRESSION FITTINGS for connecting HDPE pipe
HDPE PP COMPRESSION FITTINGS
KEXING PP compression fittings and clamp saddles are designed specifically for connecting PE pipes with an outside diameter of 20-110mm. They are fully compatible with all LDPE, HDPE, PE40, PE80 and PE100 pipes complying with EN12201, ISO4427, ISO14236, ISO13460, DIN 8074. They are normally used to convey drinking water and fluids at pressure up to 16 bar for generic applications. The quality of the material used makes these fittings resistant to etching by numerous chemical substance and to UV rays. Kexing universal fittings can be used to connect systems using PE metric piping with existing pipes made of any material.
Materials
Part |
Material |
Body(A) |
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
Blocking bush(D) |
Polypropylene |
Nut(B) |
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
Clinching ring(C) |
Polyacetal resin(POM)with high mechanical resistance And hardness |
O Ring gasket(E) |
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
Reinforcing ring |
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1''to 4'' |
Working Pressures
KEXING PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
Dn |
PFA* |
PMA* |
PEA* |
16-63 |
16 |
20 |
24 |
75-110 |
10 |
12.5 |
15 |
Temperature(°C ) |
Da-10a25 |
Da+26a+35 |
Da+36a+45 |
16-63 |
16 |
20 |
24 |
75-110 |
10 |
12.5 |
15 |
Reference Standards
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Our Main Market :
Domestic Market, Africa, Northern Europe, Mid East, Eastern Europe, Western Europe
North America, South Asia, Southern Europe, South America, Central America, Oceania
Eastern Asia, Southeast Asia, we sale it a large quality every month .
Our certificate :
Shijiazhuang Shentong Plastic Industry Co.Ltd was established in 2003, which is a enterprise concentrating manufacturing and sales. Specialized in new plastic piping. The leading products are Fosite Brand PP-R,PP,PE,UPVC,PE-RT,PEX pipe & fittings and plastic tubing welding equipment. Has a national advanced automated manufacturing equipment and complete product specifications. Following the quality policy of ''pursuit of excellence, render a service'',
Shentong has passed ISO9001,ISO
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.What is your packing?
A: usually plastic bags,carton,can be packed as your require.
