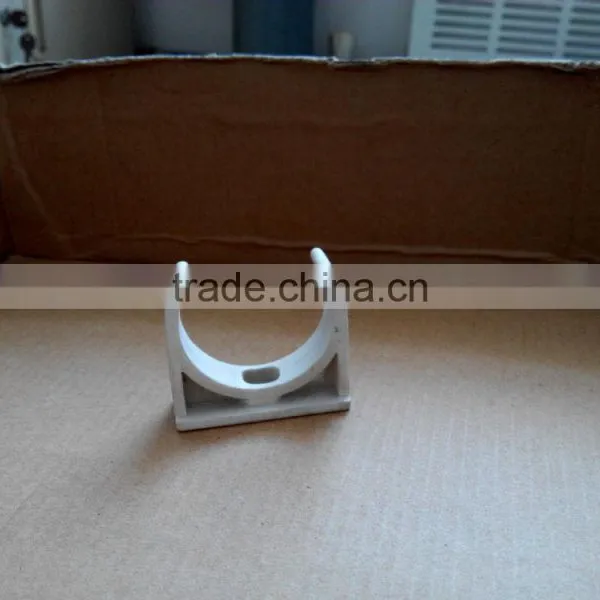

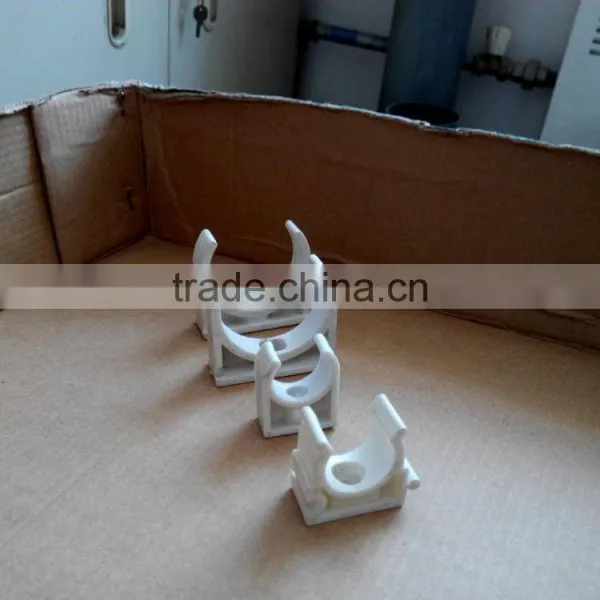

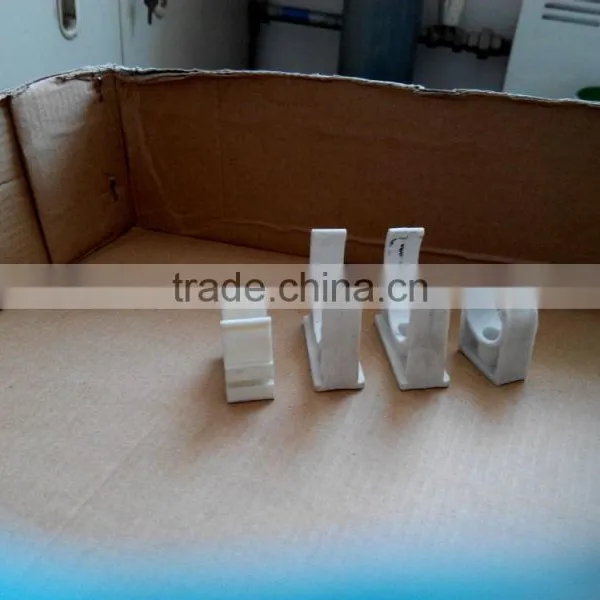

Help CenterPpr Pipe Fittings Plastic Tube Clip for Water Supply System
Related Products
-
China Supplier Manufacturer Ppr Plastic Pipe ClipUS$ 0.1 - 20MOQ: 1000 Pieces -
High Quality& Lower Price "DS" Pvc S-trap for DrainageUS$ 0.015 - 3.365MOQ: 100 Pieces
-
Plastic S-trap, Pipe S-trap, S-trap With Inspection Port/doorUS$ 0.01 - 3MOQ: 1000 Pieces
-
20- 110mm PP Compression Fittings for Irrigation From China ManufacturerUS$ 0.04 - 2.25MOQ: 500 Pieces
-
7001 pp Fitting Hdpe Compression Fitting for Water Supply Irrigation Female ThreadedUS$ 0.04 - 2.25MOQ: 500 Pieces
| Packaging Details: | Packed in plastic bags for the first time, and then in cardboard boxes |
| Delivery Detail: | within 15days
|
1.ppr plastic tube sizes
pressure |
PN1.0MPa |
PN1.6MPa |
PN2.0MPa |
PN2.5MPa |
|
Outer Dlameter dn(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Φ20 |
1.9 |
2.3 |
2.8 |
3.4. |
Φ25 |
2.3 |
2.8 |
3.5 |
4.2 |
Φ32 |
3.0 |
3.6 |
4.4 |
5.4 |
Φ40 |
3.7 |
4.5 |
5.5 |
6.7 |
Φ50 |
4.6 |
5.6 |
6.9 |
8.4 |
Φ63 |
5.8 |
7.1 |
8.7 |
10.5 |
Φ75 |
6.8 |
8.4 |
10.3 |
12.5 |
Φ90 |
8.2 |
10.1 |
12.3 |
15.0 |
Φ110 |
10 |
12.3 |
15.1 |
18.5 |
2.PPR plastic tube and fittings Features:
High Temperature Resistance:In Long term normal use the working temperature is 70 °C,the maximum temperature is up to 95°C in short terms use.
Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe. And 1/250 of steel pipe. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
Corrosion Resistant: resist chemical matters or electron chemical corrosion. can use more than 50 years on normal conditions
Lower Installation Costs: light weight and ease of installation, ppr pipe can reduce installation costs by as much as 50%over metal piping system.
Recycled and Environment-friendly
3.Application of ppr plastic tube and fittings :
1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;
2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);
3. Drinking water systems and food industry management system'
4. Gardon and warm rooms irrigating systems;
5. Traditional heatgiving/ heat-absorbing systems;
6. Central air-conditioner system;
7. Chemical flowing transferring pipe system.
