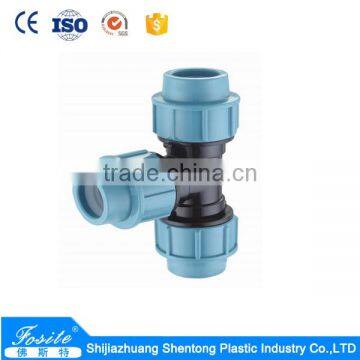

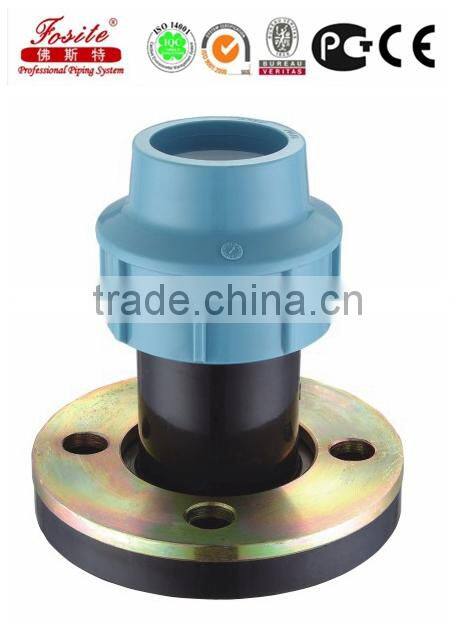

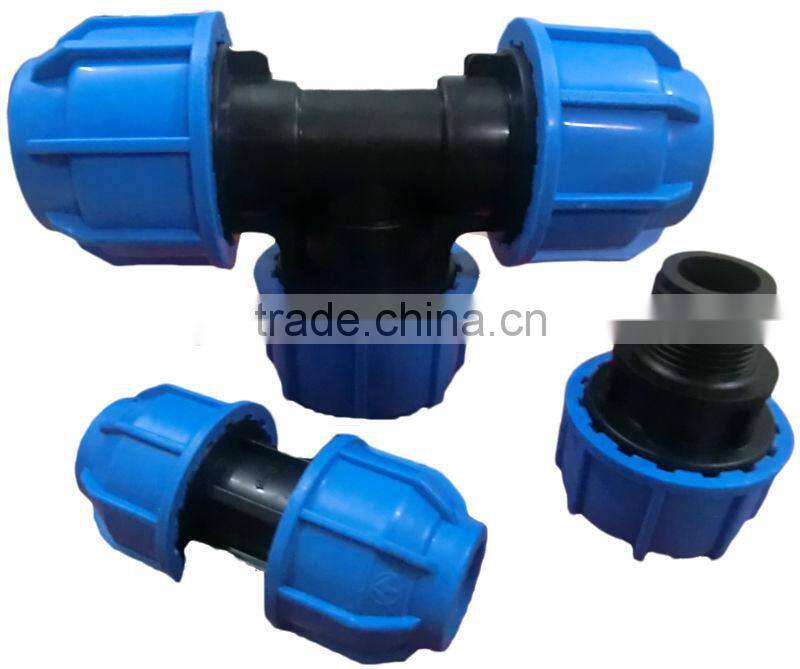

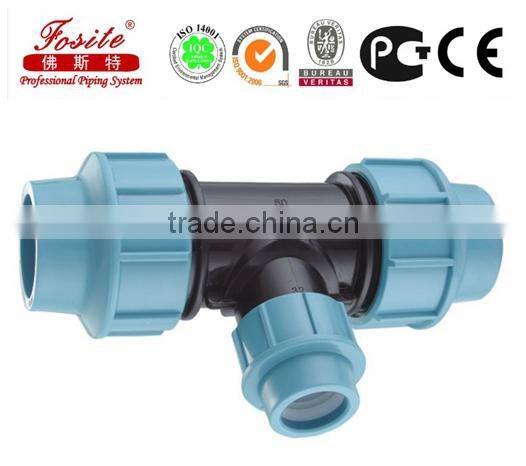

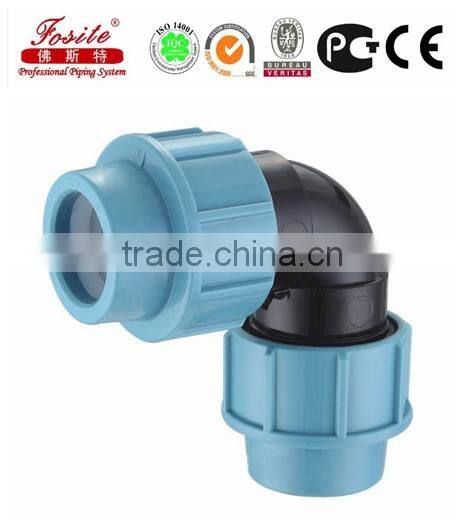

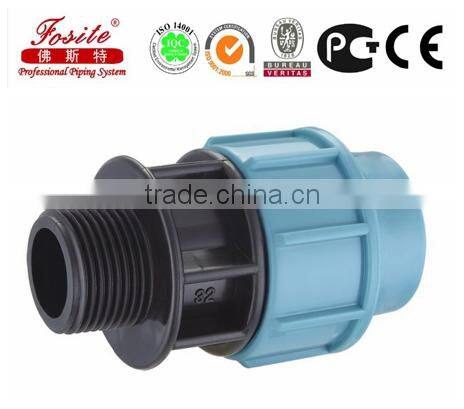

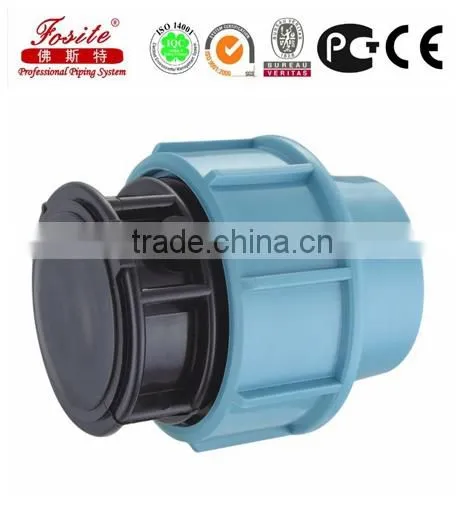

20-110mm pp fittings hdpe compression fittings
- 20000 Piece / Pieces per Month
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Material | Plastic | Technics | Casting | |
| Type | Coupling | Place of Origin | Hebei, China | |
| Model Number | 20mm-110mm | Brand Name | Fosite | |
| Connection | Female | Shape | Other, Round | |
| Head Code | Other, Round |
Product Description
| Part | Material | |
Body(A) | Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. | ||
Blocking bush(D) | Polypropylene | ||
Nut(B) | Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) | ||
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance And hardness | ||
O Ring gasket(E) | Special ela | ||
stomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”
Standard
ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN
Machines
injection machines
Working place
200PSI@73° F(23°C)
Warranty
at least 50 years
Size
20-110mm
Pressure rate
up to 16 bar (kg/ sq. cm).
| Model NO. | diameter(mm) | Package Quantity in one CTN(pcs) | package gross weight(kg) | package net weight(kg) | PACKING SIZE(mm) |
| PFI099 | 20*1/2 | 252 | 23 | 22 | 580*410*330 |
| PFI100 | 25*1/2 | 168 | 20.5 | 19.5 | 580*410*330 |
| PFI101 | 25*3/4 | 168 | 21.5 | 20.5 | 580*410*330 |
| PFI102 | 32*3/4 | 105 | 21 | 20 | 580*410*330 |
| PFI103 | 32*1 | 105 | 22.5 | 21.5 | 580*410*330 |
| PFI104 | 40*1-1/4 | 40 | 24.5 | 23.5 | 580*440*350 |
| PFI105 | 50*1-1/2 | 40 | 24.5 | 23.5 | 580*440*350 |
| PFI106 | 63*1-1/2 | 24 | 21.5 | 20.5 | 540*530*330 |
| PFI107 | 63*2 | 24 | 21.5 | 20.5 | 540*530*330 |
| PFI108 | 75*2-1/2 | 12 | 29 | 28 | 670*370*450 |
| PFI109 | 90*3 | 12 | 29 | 28 | 670*370*450 |
| PFI110 | 110*4 | 8 | 24.5 | 23.5 | 580*440*350 |
FEATURE OF PRODUCT
1.)Fast and reliable connections,extensively used worldwide
2.)Easy to installation
3.)One source for all your IPS,CTS and Metric needs.
4.)Color coded,UV stabilized
5.)Extensively used worldwide,ISO9001certified.
Scope of application
Water distribution,Industrial,Leachate Collection,Irrigation and many other uses.
