Home > Products > PP COMPRESSION FITTINGS > PP compression fittings

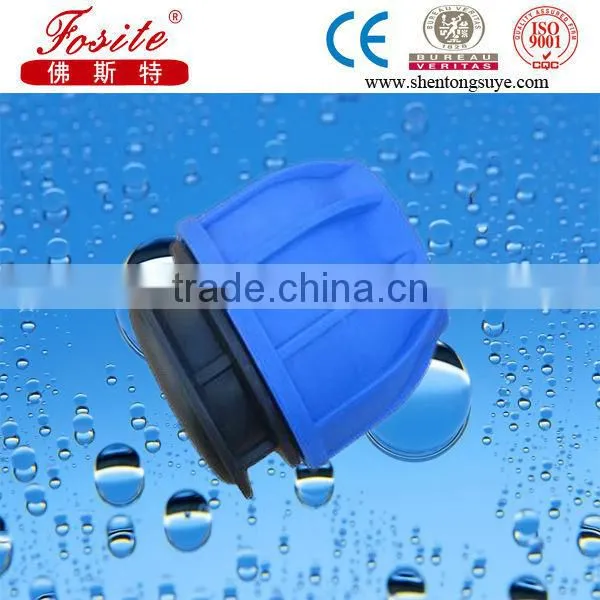

PP compression fittings
- 20000 Piece / Pieces per Month
- Tianjin
- T/T Credit Card
Product Details
Material: | Plastic | Technics: | Casting | Type: | Coupling |
Model Number: | 20mm-63mm | Brand Name: | Fosite | Connection: | Female |
Shape: | Other, Round | Head Code: | Other, Round |
Product Description
Specifications
1.Factory supply2.Virgin PP material
3.High compression
4.Detachable.
5.ISO9001
| Part | Material | |
Body(A) | Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. | ||
Blocking bush(D) | Polypropylene | ||
Nut(B) | Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) | ||
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance And hardness | ||
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(EPDM) for alimentary use | ||
Reinforcing ring | AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” | ||
Standard | ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN | ||
Machines | injection machines | ||
Working place | 200PSI@73° F(23°C) | ||
Warranty | at least 50 years | ||
Size | 20-110mm | ||
Pressure rate | up to 16 bar (kg/ sq. cm). |
Model NO. | diameter(mm) | Package Quantity in one CTN(pcs) | package gross weight(kg) | package net weight(kg) | PACKING SIZE(mm) |
PFI099 | 20*1/2 | 252 | 23 | 22 | 580*410*330 |
PFI100 | 25*1/2 | 168 | 20.5 | 19.5 | 580*410*330 |
PFI101 | 25*3/4 | 168 | 21.5 | 20.5 | 580*410*330 |
PFI102 | 32*3/4 | 105 | 21 | 20 | 580*410*330 |
PFI103 | 32*1 | 105 | 22.5 | 21.5 | 580*410*330 |
PFI104 | 40*1-1/4 | 40 | 24.5 | 23.5 | 580*440*350 |
PFI105 | 50*1-1/2 | 40 | 24.5 | 23.5 | 580*440*350 |
PFI106 | 63*1-1/2 | 24 | 21.5 | 20.5 | 540*530*330 |
PFI107 | 63*2 | 24 | 21.5 | 20.5 | 540*530*330 |
PFI108 | 75*2-1/2 | 12 | 29 | 28 | 670*370*450 |
PFI109 | 90*3 | 12 | 29 | 28 | 670*370*450 |
PFI110 | 110*4 | 8 | 24.5 | 23.5 | 580*440*350 |
FEATURE OF PRODUCT
1.)Fast and reliable connections,extensively used worldwide
2.)Easy to installation
3.)One source for all your IPS,CTS and Metric needs.
4.)Color coded,UV stabilized
5.)Extensively used worldwide,ISO9001certified.
Scope of application
Water distribution,Industrial,Leachate Collection,Irrigation and many other uses.
