Water Supply Plastic PP Compression Fittings

FOB Price

US$ 0.1 - 0.3 / Piece

1500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

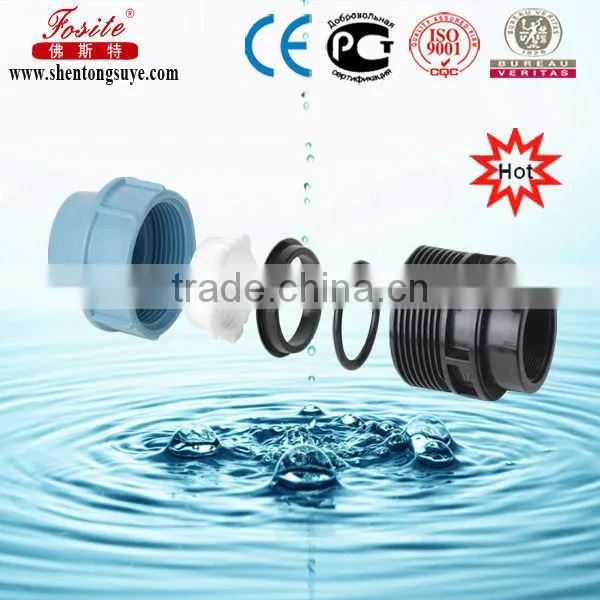

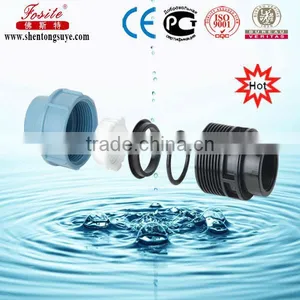

		Part	Material
		Body(A)	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
		Blocking bush(D)	Polypropylene
		Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
		Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
		O Ring gasket(E)	Special elastomeric acrylonitrile rubber(EPDM) for alimentary use
		Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”
Standard	ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN
Machines	injection machines
Working place	200PSI@73° F(23°C)
Warranty	at least 50 years
Size	20-110mm
Pressure rate	up to 16 bar (kg/ sq. cm).

Choose reason

Model NO.	diameter(mm)	Package Quantity in one CTN(pcs)	package gross weight(kg)	package net weight(kg)	PACKING SIZE(mm)
PFI099	20*1/2	252	23	22	580410330
PFI100	25*1/2	168	20.5	19.5	580410330
PFI101	25*3/4	168	21.5	20.5	580410330
PFI102	32*3/4	105	21	20	580410330
PFI103	32*1	105	22.5	21.5	580410330
PFI104	40*1-1/4	40	24.5	23.5	580440350
PFI105	50*1-1/2	40	24.5	23.5	580440350
PFI106	63*1-1/2	24	21.5	20.5	540530330
PFI107	63*2	24	21.5	20.5	540530330
PFI108	75*2-1/2	12	29	28	670370450
PFI109	90*3	12	29	28	670370450
PFI110	110*4	8	24.5	23.5	580440350

FEATURE OF PRODUCT

1.)Fast and reliable connections,extensively used worldwide

2.)Easy to installation

3.)One source for all your IPS,CTS and Metric needs.

4.)Color coded,UV stabilized

5.)Extensively used worldwide,ISO9001certified.

Scope of application

Water distribution,Industrial,Leachate Collection,Irrigation and many other uses.

Packaging & Shipping

Our Services

honor qualification
