Irrigation Plastic PP Compression Fittings

Name: Irrigation Plastic PP Compression Fittings
Brand: Fosite
SKU: 141832282
Availability: InStock

US$ 0.1 - 0.3 MOQ: 1500 Pieces

Key Specifications

Material:

Plastic

Technics:

Casting

Type:

Coupling

Shijiazhuang Shentong Plastic Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Material Plastic

Technics Casting

Type Coupling

Place of Origin Hebei, China

Model Number 20-160mm

Brand Name Fosite

Connection Female

Shape Other, Round

Head Code Other, Round

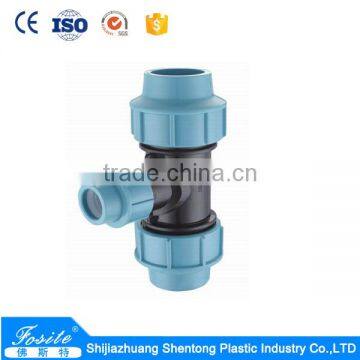

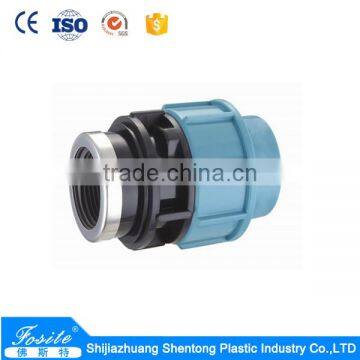

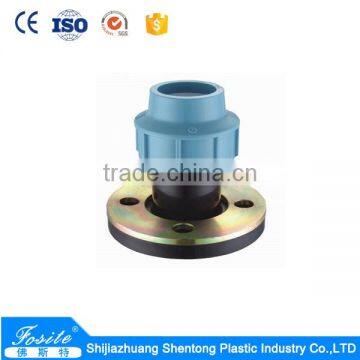

Irrigation plastic PP compression fittings

		Part	Material
		Body(A)	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
		Blocking bush(D)	Polypropylene
		Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
		Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
		O Ring gasket(E)	Special elastomeric acrylonitrile rubber(EPDM) for alimentary use
		Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”
Standard	ASTM D2466,ASTM D2665 , BS4346, NBR5648,DIN
Machines	injection machines
Working place	200PSI@73° F(23°C)
Warranty	at least 50 years
Size	20-110mm
Pressure rate	up to 16 bar (kg/ sq. cm).

Model NO.	diameter(mm)	Package Quantity in one CTN(pcs)	package gross weight(kg)	package net weight(kg)	PACKING SIZE(mm)
PFI099	20*1/2	252	23	22	580410330
PFI100	25*1/2	168	20.5	19.5	580410330
PFI101	25*3/4	168	21.5	20.5	580410330
PFI102	32*3/4	105	21	20	580410330
PFI103	32*1	105	22.5	21.5	580410330
PFI104	40*1-1/4	40	24.5	23.5	580440350
PFI105	50*1-1/2	40	24.5	23.5	580440350
PFI106	63*1-1/2	24	21.5	20.5	540530330
PFI107	63*2	24	21.5	20.5	540530330
PFI108	75*2-1/2	12	29	28	670370450
PFI109	90*3	12	29	28	670370450
PFI110	110*4	8	24.5	23.5	580440350
