Specifications
Testing machine1.Stainless steel working table
2.LCD display
3.MCU control
4.ABS verticle type controller

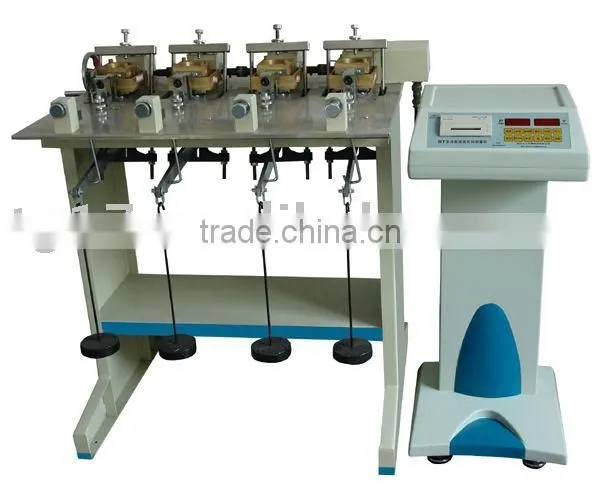

Intelligent Electric Tetragenous Direct Shear Testing machine
Application: This apparatus is used to test resisting shear strength of soil specimen. It usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed
Specification:
1. Area of soil sample:30cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V
Measurement: 1160x900x1160mm(main frame), 500x500x1020mm(controller), weight: 240kg
Features: Stainless steel working table, stepping motor as pushing mechanism, high precision, low noise, MCU control, variable speed displayed by the controller, easy to operate, ABS vertical type controller, LCD display
