Help Center10KN Light-duty Triaxial Machine
US$ 100 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHTG
Model Number:
STSZ-1Q
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Tensile Testing MachineUS$ 7,384 - 7,500MOQ: 1 Set -
Intelligent Electric Tetragenous Direct Shear Test MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
In-site Core Drilling MachineUS$ 1,100 - 1,200MOQ: 1 Set
-
Electric Strain Direct Shear Testing MachineUS$ 500 - 800MOQ: 1 Set
-
Four-bladed Vane Shear Testing EquipmentUS$ 2,150 - 2,500MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
SHTG
Model Number
STSZ-1Q
Power
Other, Electric
Usage
Other, Triaxial Machine
Specifications
Triaxial Machine1.Measure soil shearing strength
2.Proform UU,CU and CD triaxial tests

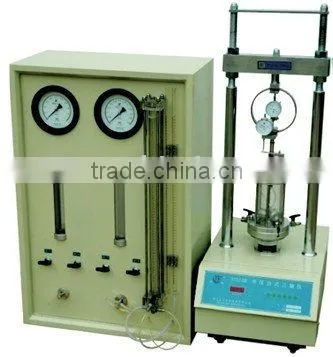

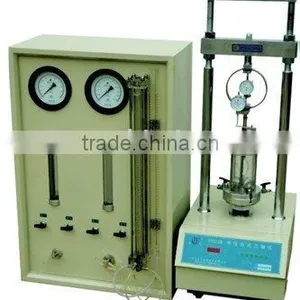

10KN Light-duty Triaxial Machine
Application: to measure soil shearing strength, thus analysizing soil stability and providing data for construction projects. Perform UU, CU and CD triaxial tests
Technical parameters:
1. Specimen size: 39.1(Dia) ×80mm
2. Max. axial load: 10KN
3. Lift speed range(mm/min): .003,0.006,0.008,0.012,0.020,0.030,0.040,0.050,0.060,
0.070, 0.080,0.090,0.100,0.200,0.300,0.400,0.500, 0.600,0.700,0.800,0.900,1.000,3.000
4. Max. stroke: 35mm
5. Max. confining pressure: 1Mpa
6. Max. back pressure: 0.6Mpa
7. Pore water pressure:0-1Mpa
8. Volume change range:0-50ml, min. division 0.1ml
9. Axial displacement range: 0-30mm
