30Kn Tri-axial System1. 30KN capacity
2.Triaxial testing machine for UU,CU,CD of soil
3.Sample size reach Dia. 100mm

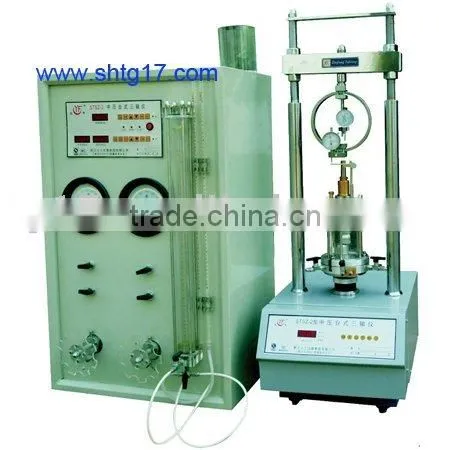

30Kn Tri-axial System
1. Use
1) It is used to determine the strength and deformation characteristics of the soil specimen.
2)It can perform unconsolidated-undrained shear test (UU), consolidated-unstrained shear test
(CU) and consolidated-drained shear test (CD).
2.Specification
Sample's size: Φ39.1×80mm, Φ61.8×125mm
• Axial load: 30KN ,Lift speed range mm/min:0.003,0.006,0.008,0.012,0.020,0.030,0.040,0.050,0.060,0.070,0.080,0.090,0.100,0.200,0.300,0.400,0.500,0.600,0.700,0.800,0.900,1.000
• Max. Stroke: 50mm
• Max. confining pressure: 2.5Mpa
• Max. back pressure: 1Mpa
•Pore water pressure: 0~2Mpa
•Volume change range:0 to 50ml
•Min.division:0.1ml
•Axial displacement measure range: Dial gauge0 to 30mm
Triaxial Testing equipment; triaxial Tester; Triaxial testing machine; Soil testing machine; Soil testing machine; soil testing; soil tester
3.Feature
Proving ring directly reading
Digital controller cabinet control working
Digital display and heavy-duty main frame
